481 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.479

Каталог GEDORE 2014 Слесарный инструмент Стр. 479 0481 ENG Lab2u

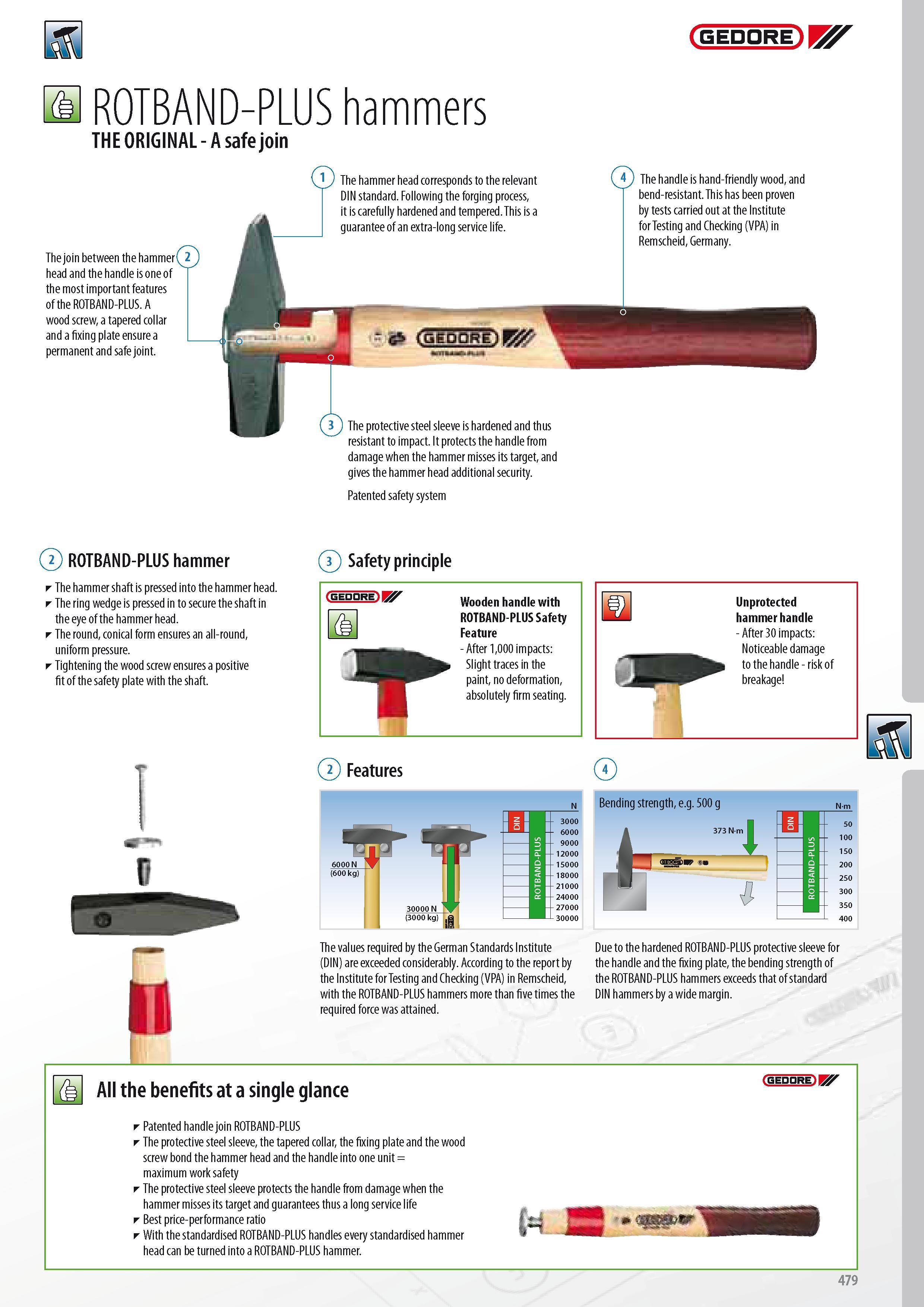

GEDORE ROTBAND-PLUS hammers THE ORIGINAL - A safe join The join between the hammer (2) head and the handle is one of the most important features of the ROTBAND-PLUS. A wood screw a tapered collar and a fixing plate ensure a permanent and safe joint. The hammer head corresponds to the relevant DIN standard. Following the forging process it is carefully hardened and tempered. This is a guarantee of an extra-long service life. SESBBF)HE The handle is hand-friendly wood and bend-resistant. This has been proven by tests carried out at the Institute for Testing and Checking (VPA) in Remscheid Germany. The protective steel sleeve is hardened and thus resistant to impact. It protects the handle from damage when the hammer misses its target and gives the hammer head additional security. Patented safety system ROTBAND-PLUS hammer The hammer shaft is pressed into the hammer head. The ring wedge is pressed in to secure the shaft in the eye of the hammer head. The round conical form ensures an all-round uniform pressure. Tightening the wood screw ensures a positive fit of the safety plate with the shaft. 11 II Safety principle GEDORE 18 Wooden handle with ROTBAND-PLUS Safety Feature - After 1000 impacts Slight traces in the paint no deformation absolutely firm seating. Features The values required by the German Standards Institute (DIN) are exceeded considerably. According to the report by the Institute for Testing and Checking (VPA) in Remscheid with the ROTBAND-PLUS hammers more than five times the required force was attained. Unprotected hammer handle - After 30 impacts Noticeable damage to the handle - risk of breakage N Bending strength e.g. 500 g - 3000 - 6000 - 9000 - 12000 - 15000 - 18000 - 21000 - 24000 - 27000 - 30000 Due to the hardened ROTBAND-PLUS protective sleeve for the handle and the fixing plate the bending strength of the ROTBAND-PLUS hammers exceeds that of standard DIN hammers by a wide margin. All the benefits at a single glance GEDORE Eg ' Patented handle join ROTBAND-PLUS The protective steel sleeve the tapered collar the fixing plate and the wood screw bond the hammer head and the handle into one unit maximum work safety The protective steel sleeve protects the handle from damage when the hammer misses its target and guarantees thus a long service life Best price-performance ratio With the standardised ROTBAND-PLUS handles every standardised hammer head can be turned into a ROTBAND-PLUS hammer. JMNMt 479
