482 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.480

Каталог GEDORE 2014 Слесарный инструмент Стр. 480 0482 ENG Lab2u

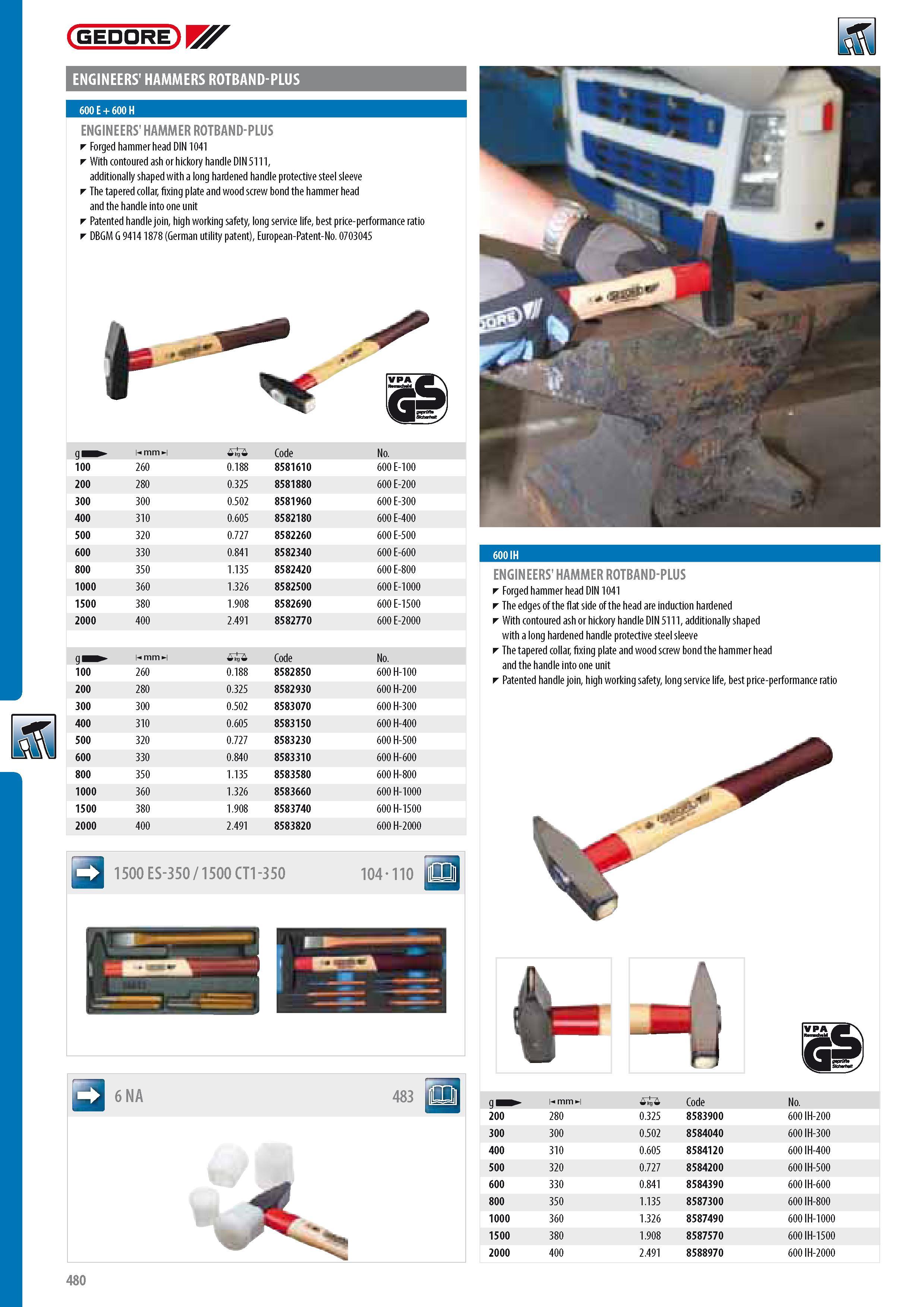

GEDORE ENGINEERS' HAMMERS ROTBAND-PLUS 600 E + 600 H ENGINEERS' HAMMER ROTBAND-PLUS Forged hammerhead DIN 1041 With contoured ash or hickory handle DIN 5111 additionally shaped with a long hardened handle protective steel sleeve The tapered collar fixing plate and wood screw bond the hammer head and the handle into one unit Patented handle join high working safety long service life best price-performance ratio DBGM G 9414 1878 (German utility patent) European-Patent-No. 0703045 g m mm mi 0 Code No. 100 260 0.188 8581610 600 E-100 200 280 0.325 8581880 600 E-200 300 300 0.502 8581960 600 E-300 400 310 0.605 8582180 600 E-400 500 320 0.727 8582260 600 E-500 600 330 0.841 8582340 600 E-600 800 350 1.135 8582420 600 E-800 1000 360 1.326 8582500 600E-1000 1500 380 1.908 8582690 600 E-1500 2000 400 2.491 8582770 600 E-2000 g m -i0 Code No. 100 260 0.188 8582850 600 H-100 200 280 0.325 8582930 600 H-200 300 300 0.502 8583070 600 H-300 400 310 0.605 8583150 600 H-400 500 320 0.727 8583230 600 H-500 600 330 0.840 8583310 600 H-600 800 350 1.135 8583580 600 H-800 1000 360 1.326 8583660 600 H-1000 1500 380 1.908 8583740 600 H-1500 2000 400 2.491 8583820 600 H-2000 1500 ES-350 1500 CT1-350 104 110 3 6 NA 483 ENGINEERS' HAMMER ROTBAND-PLUS Forged hammer head DIN 1041 T he edges of the flat side of the head are induction hardened With contoured ash or hickory handle DIN 5111 additionally shaped with a long hardened handle protective steel sleeve The tapered collar fixing plate and wood screw bond the hammer head and the handle into one unit Patented handle join high working safety long service life best price-performance ratio g m -0 Code No. 200 280 0.325 8583900 600 IH-200 300 300 0.502 8584040 600 IH-300 400 310 0.605 8584120 600 IH-400 500 320 0.727 8584200 600 IH-500 600 330 0.841 8584390 600 IH-600 800 350 1.135 8587300 600 IH-800 1000 360 1.326 8587490 600IH-1000 1500 380 1.908 8587570 600IH-1500 2000 400 2.491 8588970 600 IH-2000 480
