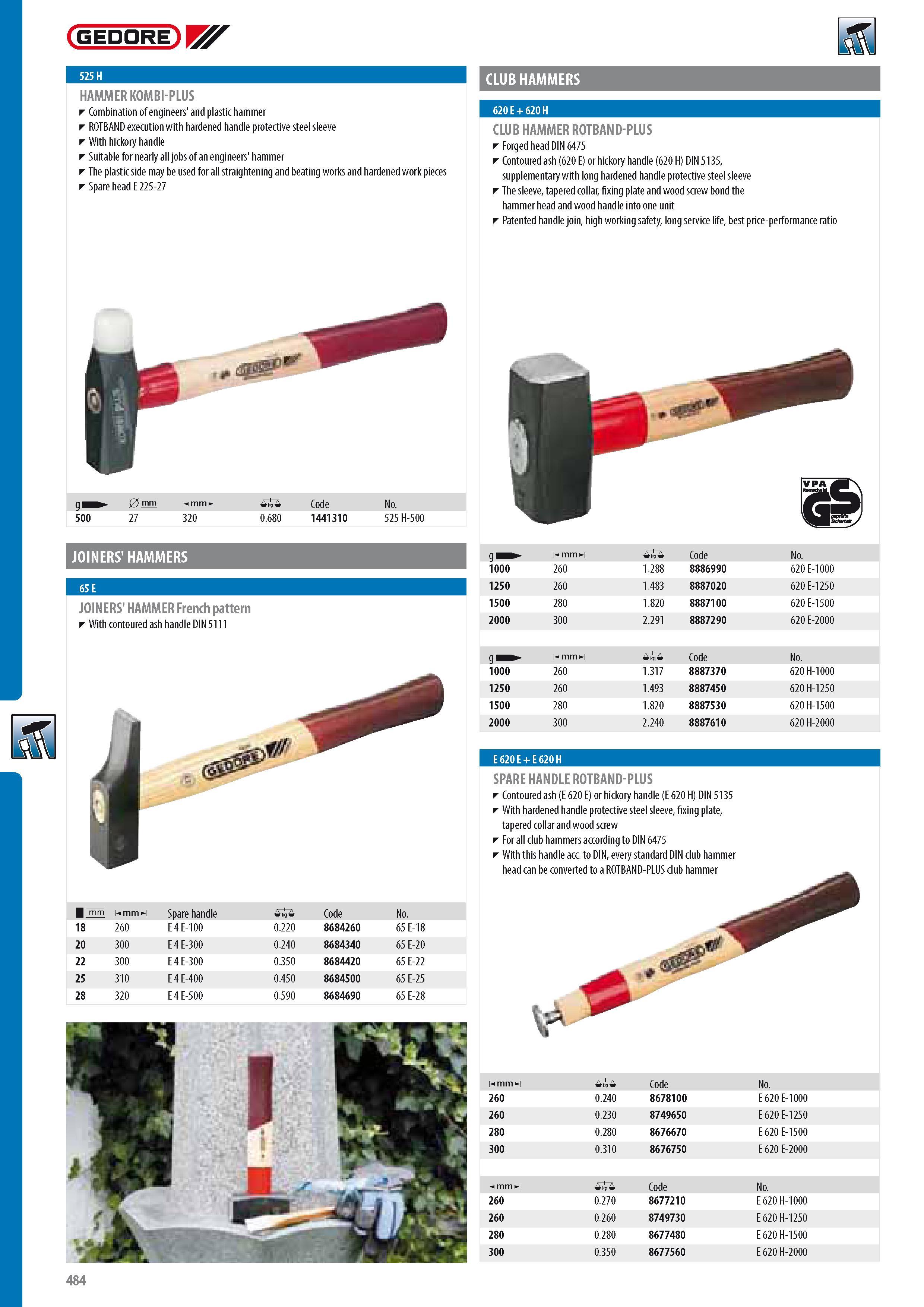

486 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.484

Каталог GEDORE 2014 Слесарный инструмент Стр. 484 0486 ENG Lab2u

GEDORE HAMMER KOMBI-PLUS Combination of engineers' and plastic hammer ROTBAND execution with hardened handle protective steel sleeve With hickory handle Suitable for nearly all jobs of an engineers' hammer The plastic side may be used for all straightening and beating works and hardened work pieces Spare head E 225-27 CLUB HAMMERS 620 E + 620 H CLUB HAMMER ROTBAND-PLUS Forged head DIN 6475 Contoured ash (620 E) or hickory handle (620 H) DIN 5135 supplementary with long hardened handle protective steel sleeve The sleeve tapered collar fixing plate and wood screw bond the hammer head and wood handle into one unit Patented handle join high working safety long service life best price-performance ratio g 500 mm 27 Hmm 320 -0 0.680 Code 1441310 No. 525 H-500 JOINERS' HAMMERS JOINERS' HAMMER French pattern With contoured ash handle DIN 5111 X mm m Spare handle -0 Code No. 18 260 E 4 E-100 0.220 8684260 65 E-18 20 300 E 4 E-300 0.240 8684340 65 E-20 22 300 E 4 E-300 0.350 8684420 65 E-22 25 310 E 4 E-400 0.450 8684500 65 E-25 28 320 E 4 E-500 0.590 8684690 65 E-28 g m 0 Code No. 1000 260 1.288 8886990 620 E-1000 1250 260 1.483 8887020 620 E-1250 1500 280 1.820 8887100 620 E-1500 2000 300 2.291 8887290 620 E-2000 g m 0 Code No. 1000 260 1.317 8887370 620 H-1000 1250 260 1.493 8887450 620 H-1250 1500 280 1.820 8887530 620 H-1500 2000 300 2.240 8887610 620 H-2000 E 620 E + E 620 H SPARE HANDLE ROTBAND-PLUS Contoured ash (E 620 E) or hickory handle (E 620 H) DIN 5135 With hardened handle protective steel sleeve fixing plate tapered collar and wood screw For all club hammers according to DIN 6475 With this handle acc. to DIN every standard DIN club hammer head can be converted to a ROTBAND-PLUS club hammer m 0 Code No. 260 0.240 8678100 E 620 E-1000 260 0.230 8749650 E 620 E-1250 280 0.280 8676670 E 620 E-1500 300 0.310 8676750 E 620 E-2000 m 0 Code No. 260 0.270 8677210 E620 H-1000 260 0.260 8749730 E620 H-1250 280 0.280 8677480 E620 H-1500 300 0.350 8677560 E620 H-2000 525 H 65 E 484
