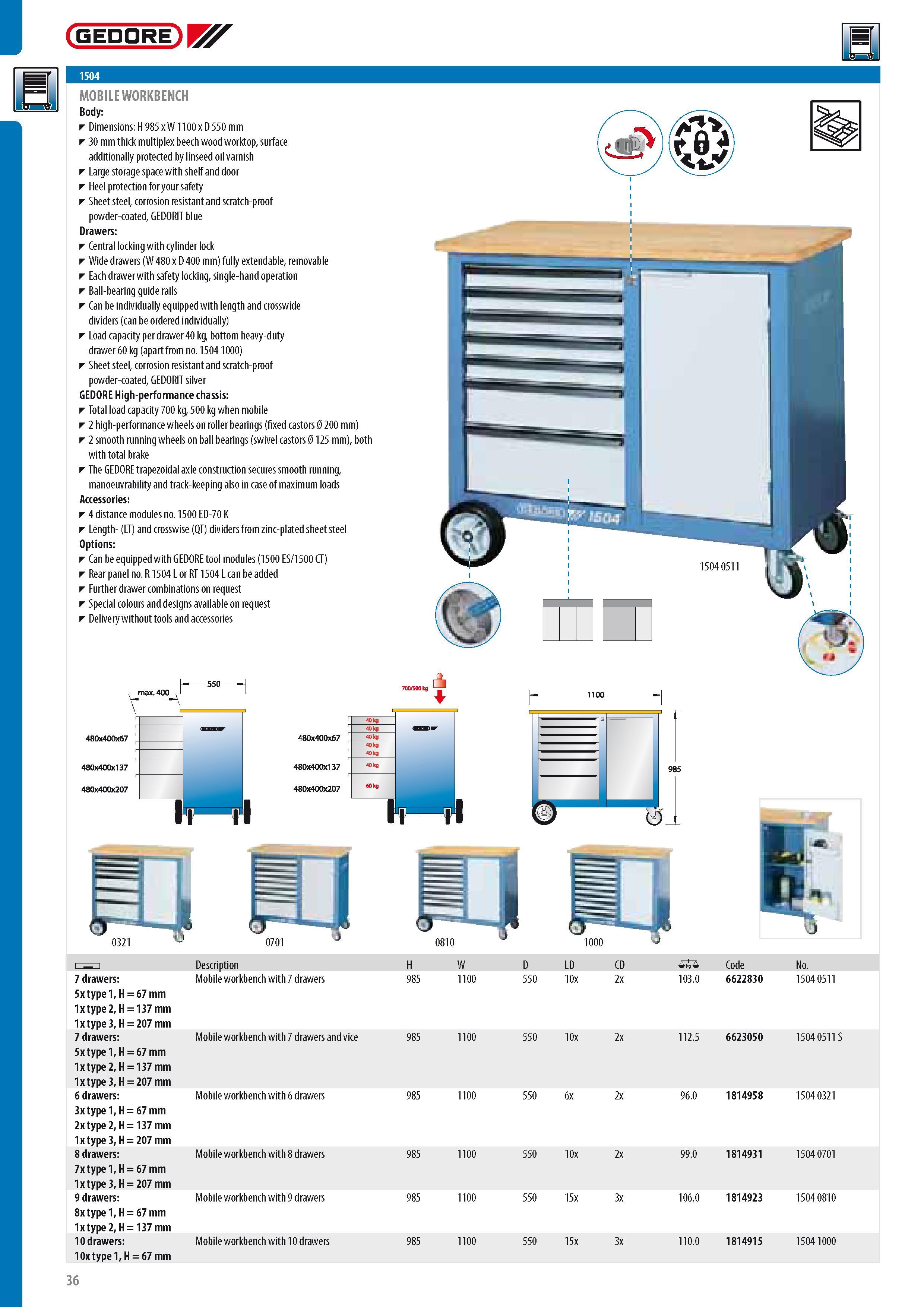

GEDORE MOBILE WORKBENCH Body Dimensions H 985 x W 1100 x D 550 mm 30 mm thick multiplex beech wood worktop surface additionally protected by linseed oil varnish Large storage space with shelf and door Heel protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock Wide drawers (W 480 x D 400 mm) fully extendable removable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawer 60 kg (apart from no. 1504 1000) Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 700 kg 500 kg when mobile 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 125 mm) both with total brake The GEDORE trapezoidal axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories 4 distance modules no. 1500 ED-70 K Length- (LT) and crosswise (QT) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Rear panel no. R 1504 L or RT 1504 L can be added Further drawer combinations on request Special colours and designs available on request Delivery without tools and accessories 0321 0701 0810 1000 Description H W D LD CD -0 Code No. 7 drawers 5x type 1 H 67 mm 1x type 2 H 137 mm 1x type 3 H 207 mm Mobile workbench with 7 drawers 985 1100 550 10x 2x 103.0 6622830 1504 0511 7 drawers 5x type 1 H 67 mm 1x type 2 H 137 mm 1x type 3 H 207 mm Mobile workbench with 7 drawers and vice 985 1100 550 10x 2x 112.5 6623050 15040511S 6 drawers 3x type 1 H 67 mm 2x type 2 H 137 mm 1x type 3 H 207 mm Mobile workbench with 6 drawers 985 1100 550 6x 2x 96.0 1814958 1504 0321 8 drawers 7x type 1 H 67 mm 1x type 3 H 207 mm Mobile workbench with 8 drawers 985 1100 550 10x 2x 99.0 1814931 1504 0701 9 drawers 8x type 1 H 67 mm 1x type 2 H 137 mm Mobile workbench with 9 drawers 985 1100 550 15x 3x 106.0 1814923 15040810 10 drawers 10x type 1 H 67 mm Mobile workbench with 10 drawers 985 1100 550 15x 3x 110.0 1814915 15041000 1504 36
