36 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.34

Каталог GEDORE 2014 Слесарный инструмент Стр. 34 0036 ENG Lab2u

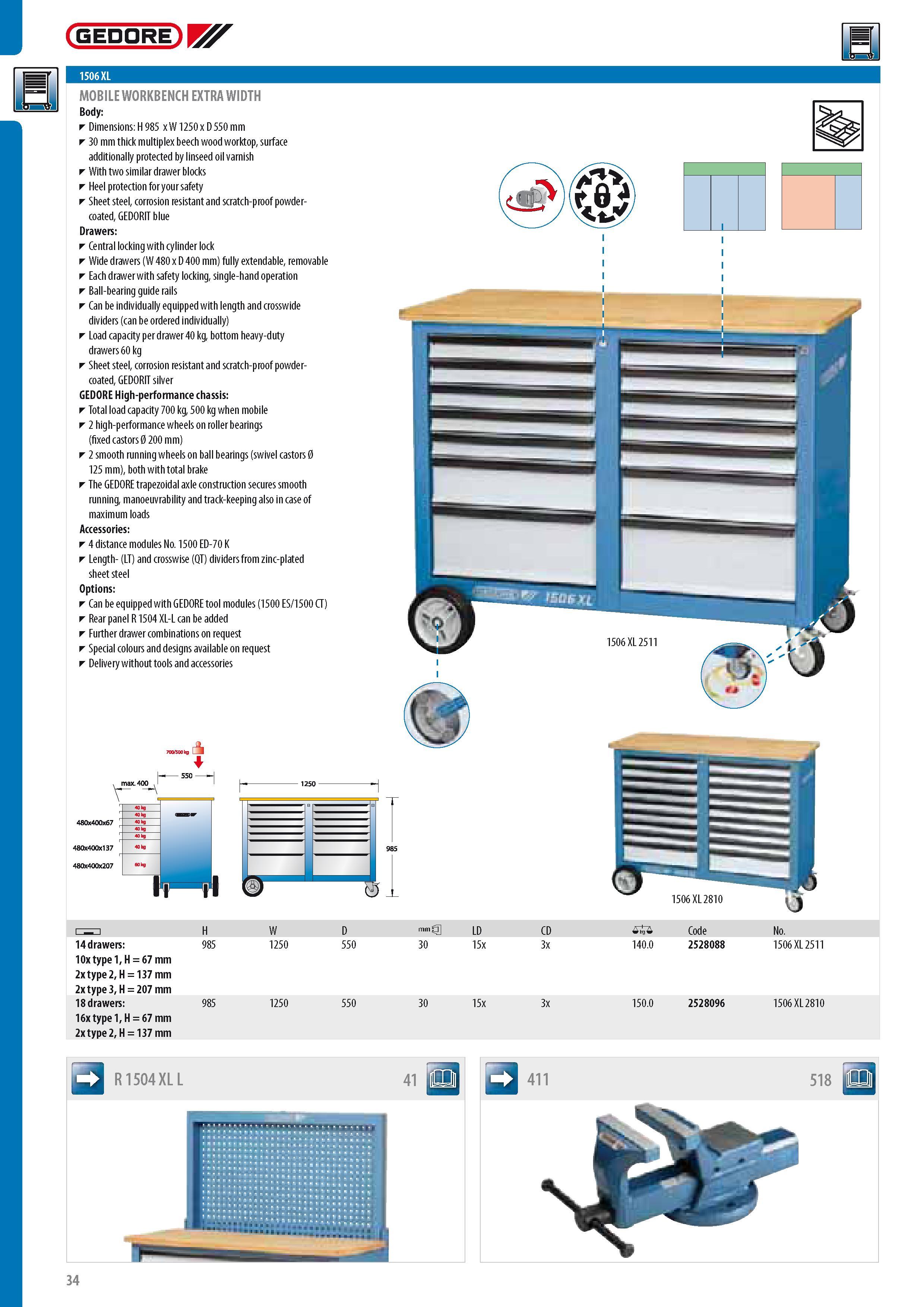

GEDORE U4 MOBILE WORKBENCH EXTRA WIDTH Body Dimensions H 985 x W 1250 x D 550 mm 30 mm thick multiplex beech wood worktop surface additionally protected by linseed oil varnish With two similar drawer blocks Heel protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock Wide drawers (W 480 x D 400 mm) fully extendable removable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawers 60 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 700 kg 500 kg when mobile 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 125 mm) both with total brake The GEDORE trapezoidal axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories 4 distance modules No. 1500 ED-70 K Length- (LT) and crosswise (QT) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Rear panel R 1504 XL-L can be added Further drawer combinations on request Special colours and designs available on request Delivery without tools and accessories .A 40 Vg 40kg 480x400x67 ' Z H li il 1506 XL 2810 H W D O LD CD 0 Code No. 14 drawers 10x type 1 H 67 mm 2x type 2 H 137 mm 2x type 3 H 207 mm 985 1250 550 30 15x 3x 140.0 2528088 1506 XL 2511 18 drawers 16x type 1 H 67 mm 2x type 2 H 137 mm 985 1250 550 30 15x 3x 150.0 2528096 1506 XL 2810 J 411 518 34
