35 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.33

Каталог GEDORE 2014 Слесарный инструмент Стр. 33 0035 ENG Lab2u

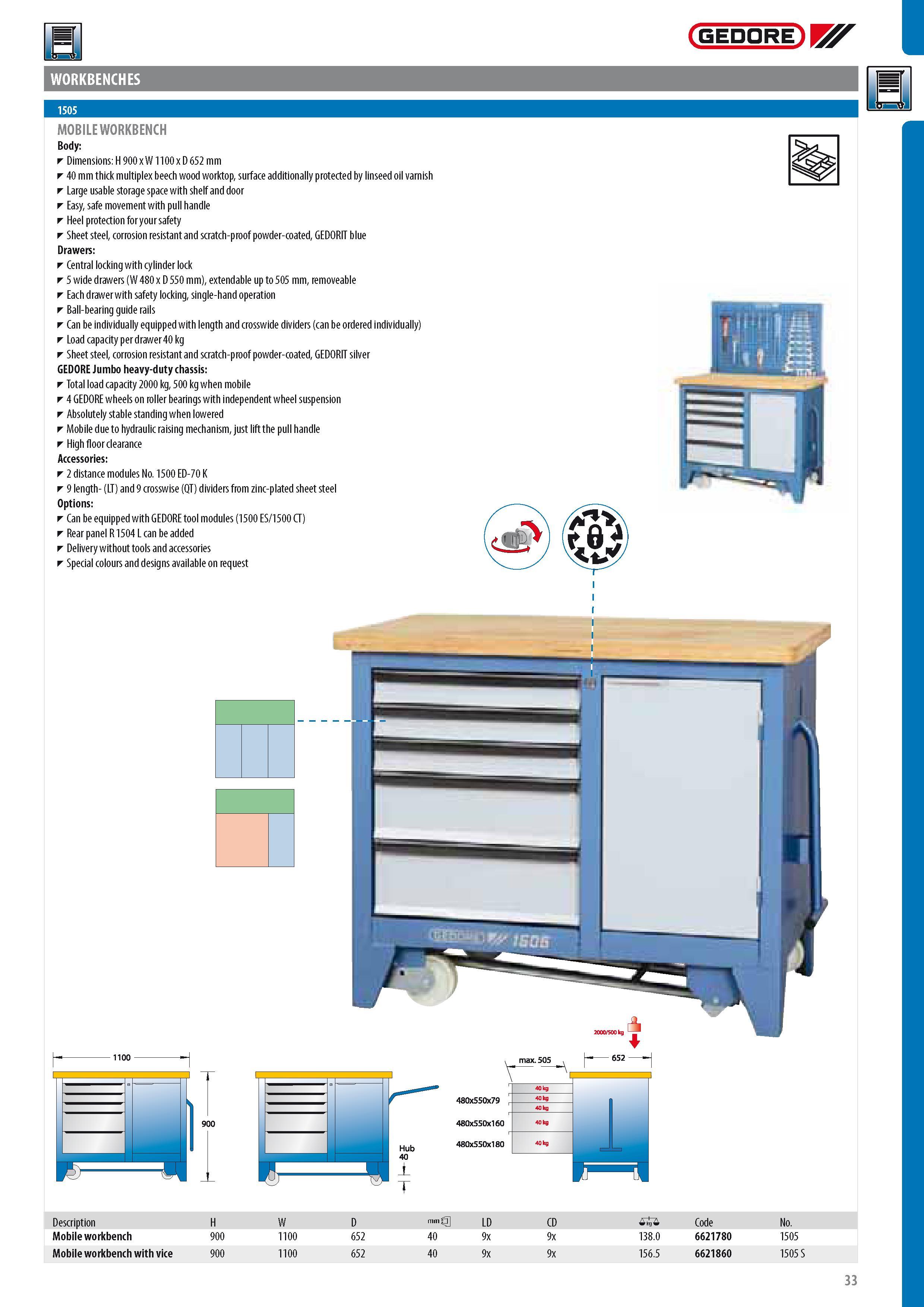

GEDORE WORKBENCHES MOBILE WORKBENCH Body Dimensions H 900 x W 1100 x D 652 mm 40 mm thick multiplex beech wood worktop surface additionally protected by linseed oil varnish Large usable storage space with shelf and door Easy safe movement with pull handle Heel protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock 5 wide drawers (W 480 x D 550 mm) extendable up to 505 mm removeable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE Jumbo heavy-duty chassis Total load capacity 2000 kg 500 kg when mobile 4 GEDORE wheels on roller bearings with independent wheel suspension Absolutely stable standing when lowered Mobile due to hydraulic raising mechanism just lift the pull handle High floor clearance Accessories 2 distance modules No. 1500 ED-70 K 9 length- (LT) and 9 crosswise (QT) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Rear panel R 1504 L can be added Delivery without tools and accessories Special colours and designs available on request Description H W D mmO LD CD 0 Code No. Mobile workbench 900 1100 652 40 9x 9x 138.0 6621780 1505 Mobile workbench with vice 900 1100 652 40 9x 9x 156.5 6621860 1505 S 1505 33
