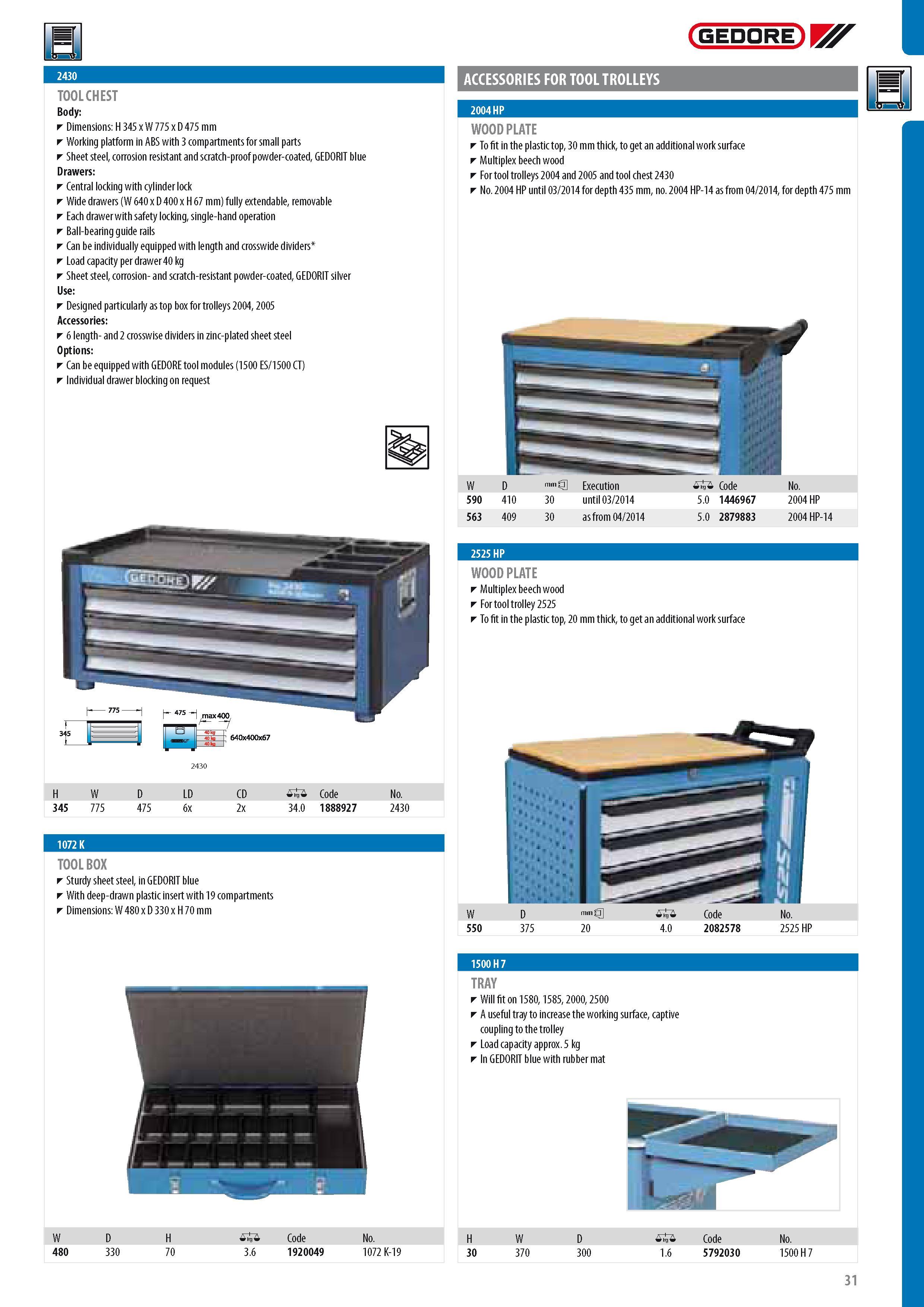

TOOL CHEST Body Dimensions H 345 x W 775 x D 475 mm Working platform in ABS with 3 compartments for small parts Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock Wide drawers (W 640 x D 400 x H 67 mm) fully extendable removable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers Load capacity per drawer 40 kg Sheet steel corrosion- and scratch-resistant powder-coated GEDORIT silver Use Designed particularly as top box for trolleys 2004 2005 Accessories 6 length- and 2 crosswise dividers in zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Individual drawer blocking on request TOOL BOX Sturdy sheet steel in GEDORIT blue With deep-drawn plastic insert with 19 compartments Dimensions W 480 x D 330 x H 70 mm GEDORE ACCESSORIES FOR TOOL TROLLEYS WOOD PLATE To fit in the plastic top 30 mm thick to get an additional work surface Multiplex beech wood For tool trolleys 2004 and 2005 and tool chest 2430 No. 2004 HP until 03 2014 for depth 435 mm no. 2004 HP-14 as from 04 2014 for depth 475 mm W D O Execution 0 Code No. 590 410 30 until 03 2014 5.0 1446967 2004 HP 563 409 30 as from 04 2014 5.0 2879883 2004 HP-14 WOOD PLATE Multiplex beech wood For tool trolley 2525 To fit in the plastic top 20 mm thick to get an additional work surface H W D LD CD 0 Code No. 345 775 475 6x 2x 34.0 1888927 2430 1 1072 K W 550 D 375 Code 2082578 No. 2525 HP TRAY T Will fit on 1580 1585 2000 2500 A useful tray to increase the working surface captive coupling to the trolley Load capacity approx. 5 kg In GEDORIT blue with rubber mat W 480 D 330 H 70 0 3.6 Code 1920049 No. 1072 K-19 H 30 W 370 D 300 0 1.6 Code 5792030 No. 1500 H 7 2430 2525 HP 2430 1500 H 7 31
