40 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.38

Каталог GEDORE 2014 Слесарный инструмент Стр. 38 0040 ENG Lab2u

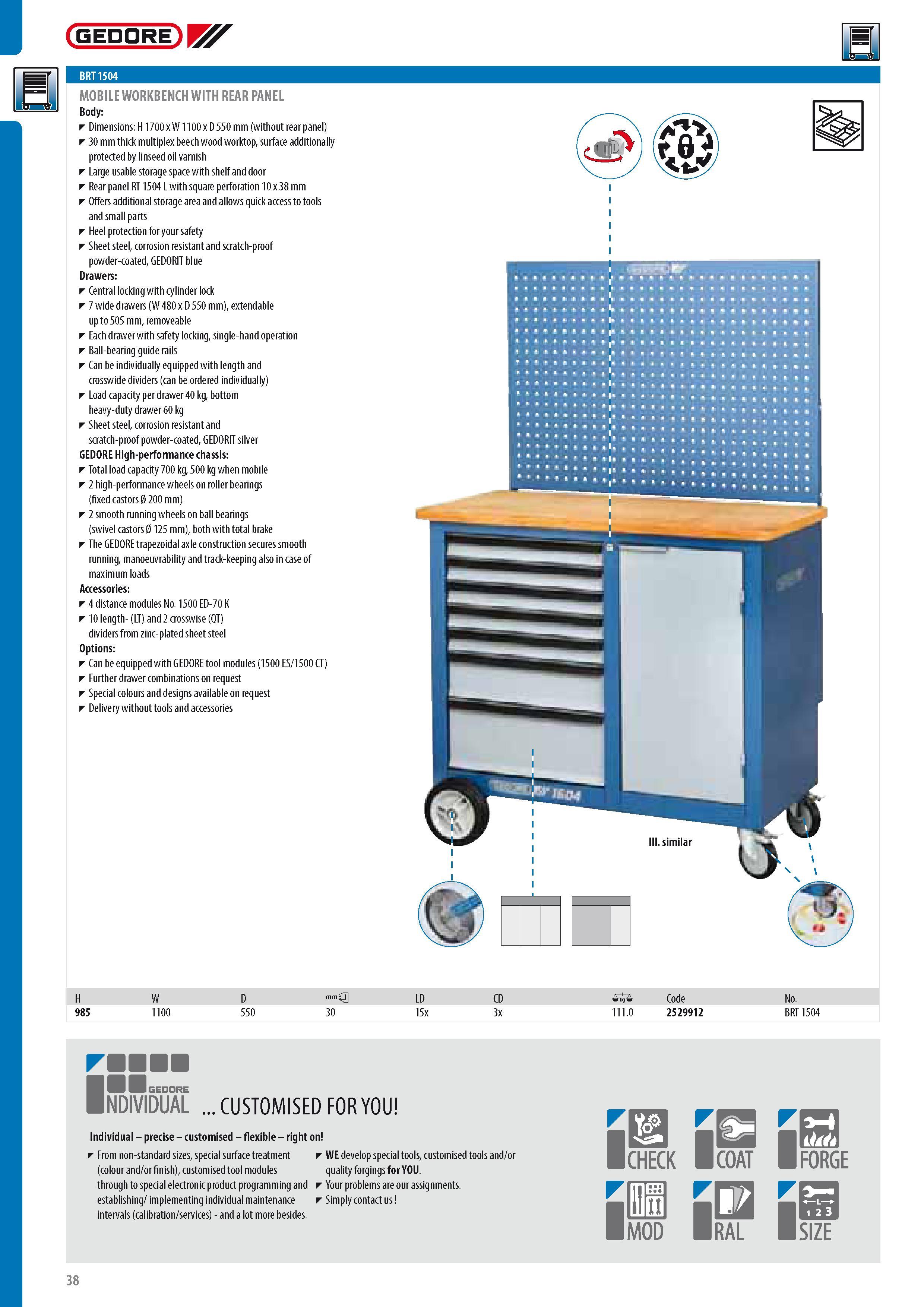

GEDORE U4 MOBILE WORKBENCH WITH REAR PANEL Body Dimensions H 1700 x W 1100 x D 550 mm (without rear panel) 30 mm thick multiplex beech wood worktop surface additionally protected by linseed oil varnish Large usable storage space with shelf and door Rear panel RT 1504 L with square perforation 10 x 38 mm Offers additional storage area and allows quick access to tools and small parts Heel protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock 7 wide drawers (W 480 x D 550 mm) extendable up to 505 mm removeable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawer 60 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 700 kg 500 kg when mobile 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 125 mm) both with total brake The GEDORE trapezoidal axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories 4 distance modules No. 1500 ED-70 K 10 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Further drawer combinations on request Special colours and designs available on request Delivery without tools and accessories H 985 W 1100 D 550 30 LD 15x CD 3x 0 Code 111.0 2529912 No. BRT 1504 rmmmm I NDIVIDUAL CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us m V m CHECK ICOAT FORGE MOD IRAL I SIZE 38
