42 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.40

Каталог GEDORE 2014 Слесарный инструмент Стр. 40 0042 ENG Lab2u

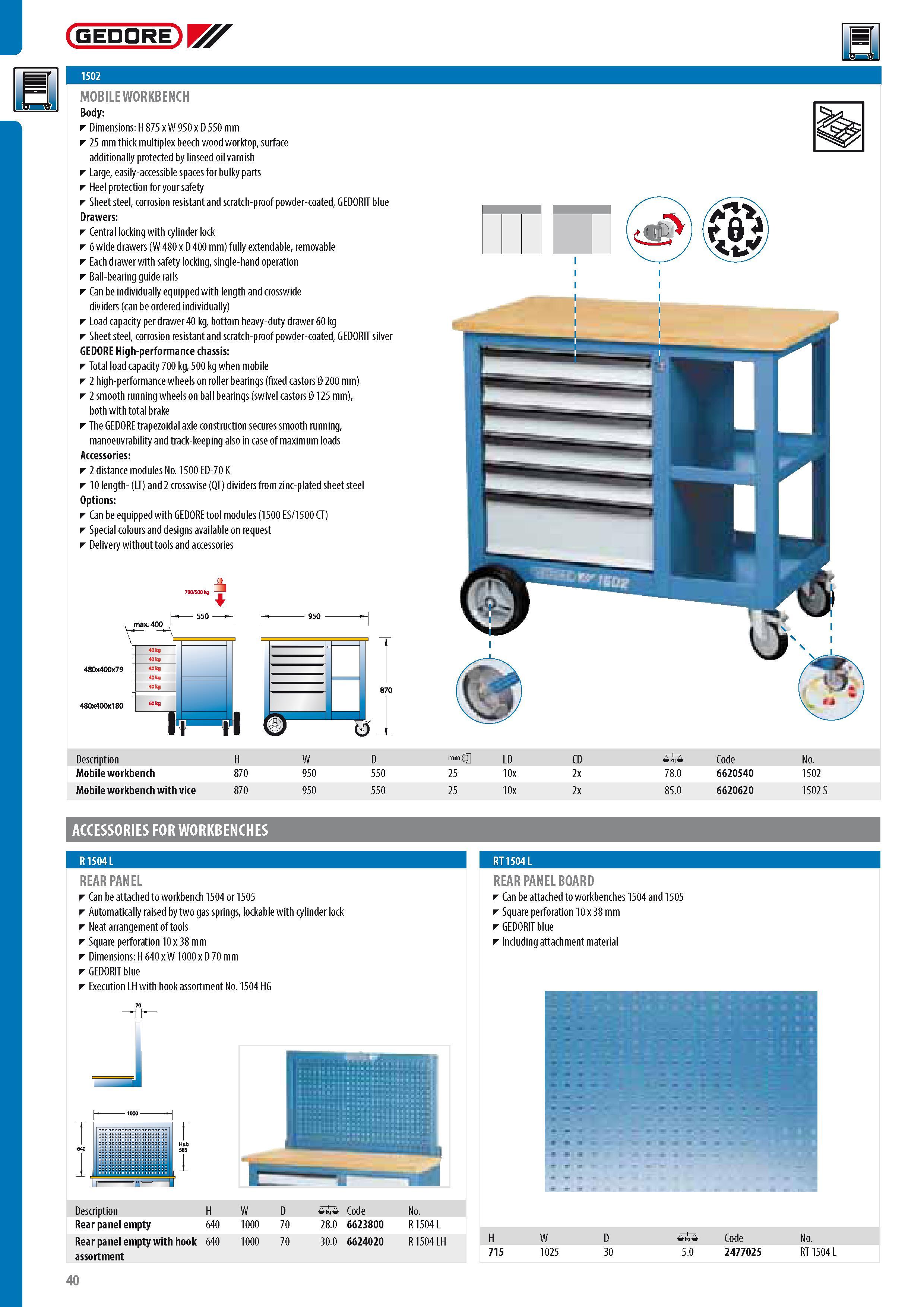

GEDORE U4 MOBILE WORKBENCH Body Dimensions H 875 x W 950 x D 550 mm 25 mm thick multiplex beech wood worktop surface additionally protected by linseed oil varnish Large easily-accessible spaces for bulky parts Heel protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock 6 wide drawers (W 480 x D 400 mm) fully extendable removable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawer 60 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 700 kg 500 kg when mobile 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 125 mm) both with total brake The GEDORE trapezoidal axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories 2 distance modules No. 1500 ED-70 K 10 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Special colours and designs available on request Delivery without tools and accessories 40 kg r 40 kg 480x400x79 r 40 480x400x180 950 - -1 . 1 Description H W D mmO LD CD -i0 Code No. Mobile workbench 870 950 550 25 10x 2x 78.0 6620540 1502 Mobile workbench with vice 870 950 550 25 10x 2x 85.0 6620620 1502 S 1502 ACCESSORIES FOR WORKBENCHES REAR PANEL Can be attached to workbench 1504 or 1505 Automatically raised by two gas springs lockable with cylinder lock Neat arrangement of tools Square perforation 10 x 38 mm Dimensions H 640 x W 1000 x D 70 mm GEDORIT blue Execution LH with hook assortment No. 1504 HG REAR PANEL BOARD Can be attached to workbenches 1504 and 1505 Square perforation 10 x 38 mm GEDORIT blue Including attachment material Description H W D 0 Code No. Rear panel empty 640 1000 70 28.0 6623800 R1504L Rear panel empty with hook assortment 640 1000 70 30.0 6624020 R 1504 LH H 715 W 1025 D 30 0 5.0 Code 2477025 No. RT 1504 L 40
