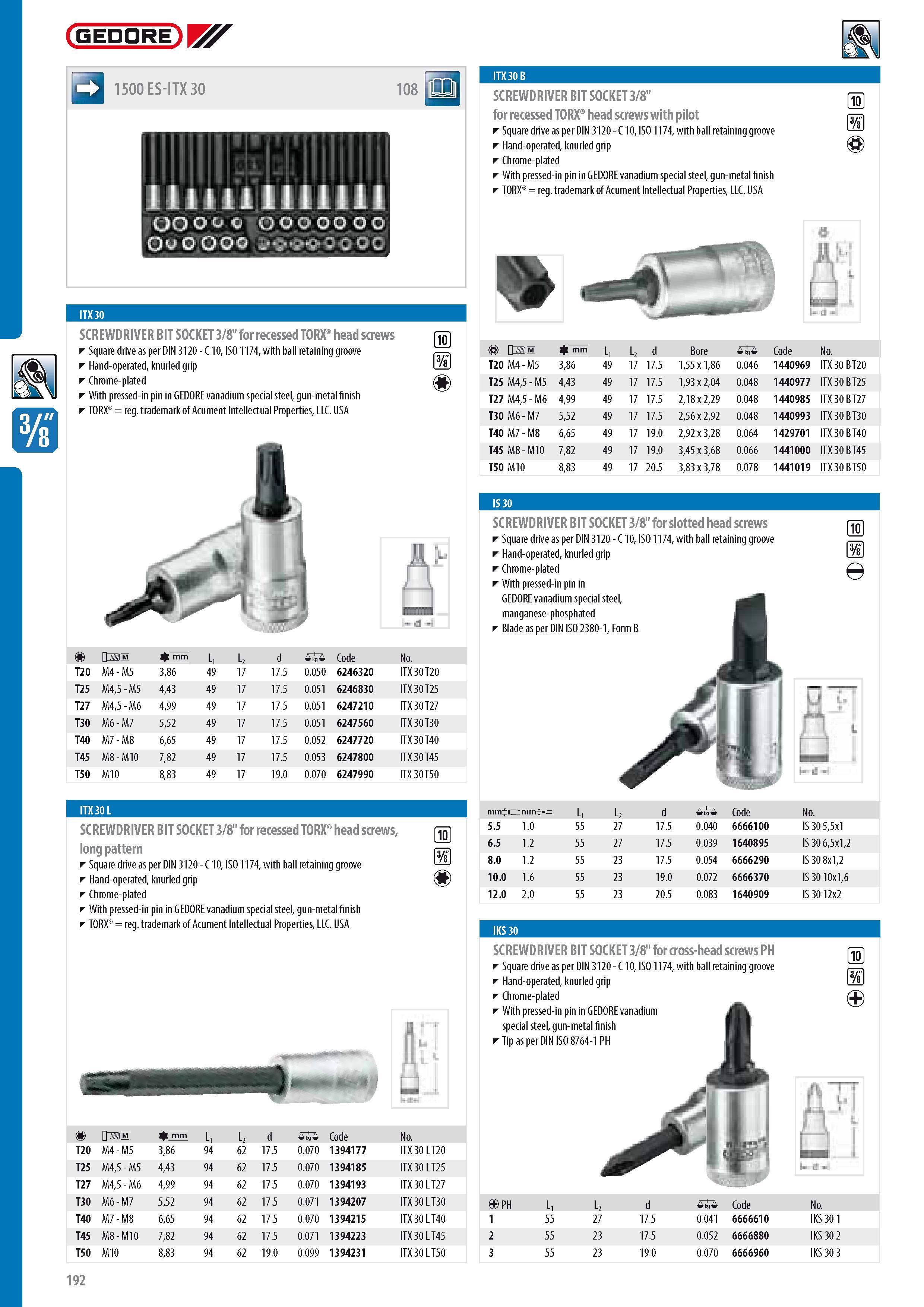

GEDORE J 1500 ES-ITX 30 108 r SCREWDRIVER BIT SOCKET 3 8" for recessed TORX head screws Square drive as per DIN 3120 - C 10 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel gun-metal finish TORX reg. trademark of Acument Intellectual Properties LLC. USA N S 7 SCREWDRIVER BIT SOCKET 3 8" for recessed TORX head screws long pattern Square drive as per DIN 3120 - C 10 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel gun-metal finish TORX reg. trademark of Acument Intellectual Properties LLC. USA N S 7 7 m mm L1 L2 d 0 Code No. T20 M4 - M5 386 49 17 17.5 0.050 6246320 ITX 30 T20 T25 M45 - M5 443 49 17 17.5 0.051 6246830 ITX 30 T25 T27 M45 - M6 499 49 17 17.5 0.051 6247210 ITX 30 T27 T30 M6 - M7 552 49 17 17.5 0.051 6247560 ITX 30 T30 T40 M7 - M8 665 49 17 17.5 0.052 6247720 ITX 30 T40 T45 M8 - M10 782 49 17 17.5 0.053 6247800 ITX 30 T45 T50 M10 883 49 17 19.0 0.070 6247990 ITX 30 T50 vwmnmW IS -r- ' 7 m mm L1 L2 d -i0 Code No. T20 M4 - M5 386 94 62 17.5 0.070 1394177 ITX 30 L T20 T25 M45 - M5 443 94 62 17.5 0.070 1394185 ITX 30 L T25 T27 M45 - M6 499 94 62 17.5 0.070 1394193 ITX 30 L T27 T30 M6 - M7 552 94 62 17.5 0.071 1394207 ITX 30 L T30 T40 M7 - M8 665 94 62 17.5 0.070 1394215 ITX 30 L T40 T45 M8 - M10 782 94 62 17.5 0.071 1394223 ITX 30 L T45 T50 M10 883 94 62 19.0 0.099 1394231 ITX 30 L T50 SCREWDRIVER BIT SOCKET 3 8" for recessed TORX head screws with pilot Square drive as per DIN 3120 - C 10 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel gun-metal finish TORX reg. trademark of Acument Intellectual Properties LLC. USA u ' Mr m m L1 L2 d Bore 0 Code No. T20 M4 - M5 386 49 17 17.5 155 x 186 0.046 1440969 ITX 30 B T20 T25 M45 - M5 443 49 17 17.5 193x204 0.048 1440977 ITX 30 B T25 T27 M45 - M6 499 49 17 17.5 218 x 229 0.048 1440985 ITX 30 B T27 T30 M6 - M7 552 49 17 17.5 256 x 292 0.048 1440993 ITX 30 B T30 T40 M7 - M8 665 49 17 19.0 292 x 328 0.064 1429701 ITX 30 B T40 T45 M8 - M10 782 49 17 19.0 345 x 368 0.066 1441000 ITX 30 B T45 T50 M10 883 49 17 20.5 383 x 378 0.078 1441019 ITX 30 B T50 SCREWDRIVER BIT SOCKET 3 8" for slotted head screws Square drive as per DIN 3120 - C 10 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel manganese-phosphated Blade as per DIN ISO 2380-1 Form B N S L1 L2 d 0 Code No. 5.5 1.0 55 27 17.5 0.040 6666100 IS 30 55x1 6.5 1.2 55 27 17.5 0.039 1640895 IS 30 65x12 8.0 1.2 55 23 17.5 0.054 6666290 IS 30 8x12 10.0 1.6 55 23 19.0 0.072 6666370 IS 30 10x16 12.0 .0 2. 55 23 20.5 0.083 1640909 IS 30 12x2 SCREWDRIVER BIT SOCKET 3 8" for cross-head screws PH Square drive as per DIN 3120 - C 10 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel gun-metal finish Tip as per DIN ISO 8764-1 PH N ; PH L1 L2 d 0 Code No. 1 55 27 17.5 0.041 6666610 IKS 30 1 2 55 23 17.5 0.052 6666880 IKS 30 2 3 55 23 19.0 0.070 6666960 IKS 30 3 ITX 30 B ITX 30 L 192
