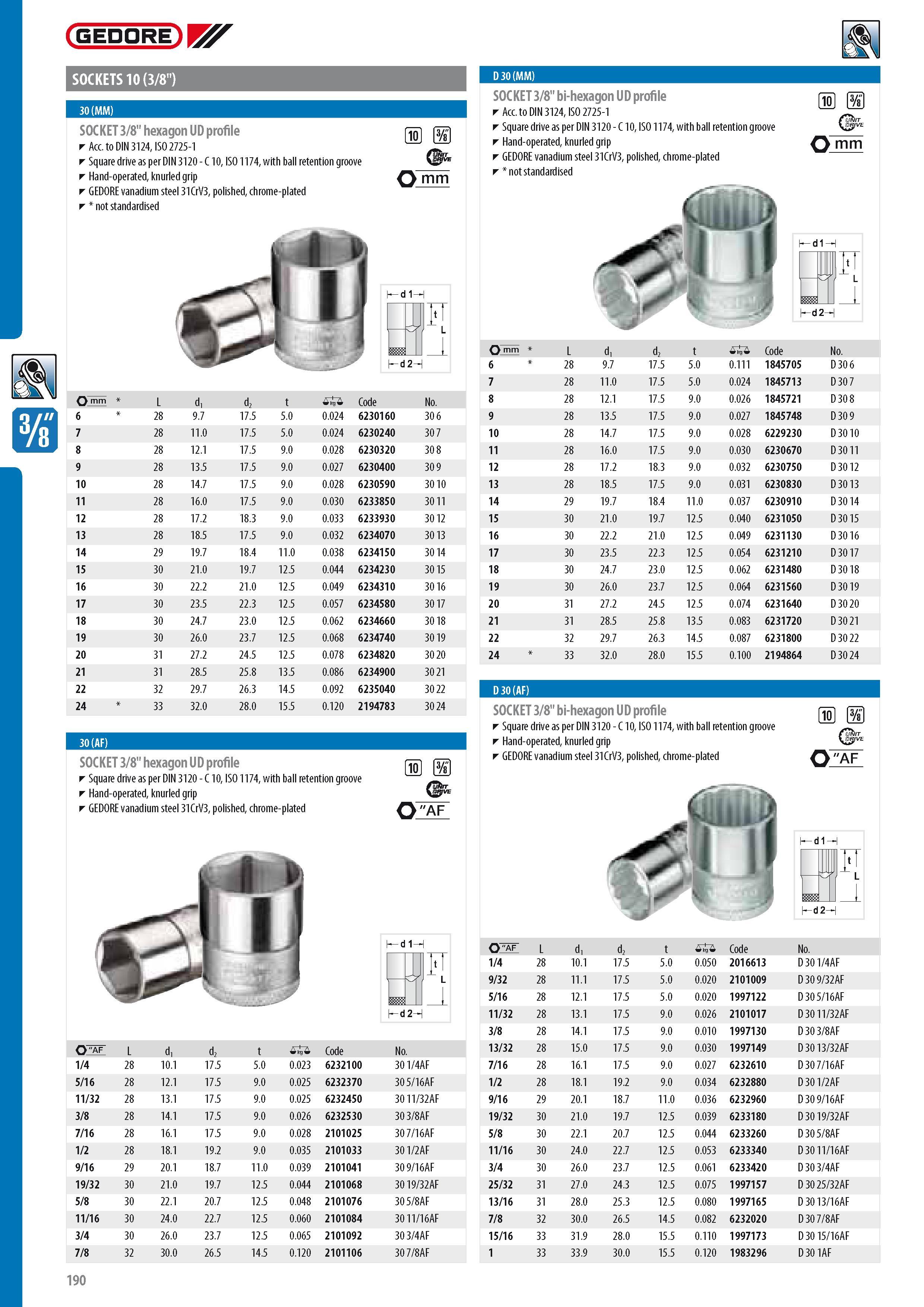

GEDORE SOCKETS 10 (3 8") 30 (MM) SOCKET 3 8" hexagon UD profile Acc. to DIN 3124 ISO 2725-1 Square drive as per DIN 3120 - C 10 ISO 1174 with ball retention groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated not standardised N S iTmrr k WVE Q mm c mm L d1 d2 0 Code No. 6 28 9.7 17.5 5.0 0.024 6230160 30 6 7 28 11.0 17.5 5.0 0.024 6230240 30 7 8 28 12.1 17.5 9.0 0.028 6230320 30 8 9 28 13.5 17.5 9.0 0.027 6230400 30 9 10 28 14.7 17.5 9.0 0.028 6230590 30 10 11 28 16.0 17.5 9.0 0.030 6233850 30 11 12 28 17.2 18.3 9.0 0.033 6233930 30 12 13 28 18.5 17.5 9.0 0.032 6234070 30 13 14 29 19.7 18.4 11.0 0.038 6234150 30 14 15 30 21.0 19.7 12.5 0.044 6234230 30 15 16 30 22.2 21.0 12.5 0.049 6234310 30 16 17 30 23.5 22.3 12.5 0.057 6234580 30 17 18 30 24.7 23.0 12.5 0.062 6234660 30 18 19 30 26.0 23.7 12.5 0.068 6234740 30 19 20 31 27.2 24.5 12.5 0.078 6234820 30 20 21 31 28.5 25.8 13.5 0.086 6234900 30 21 22 32 29.7 26.3 14.5 0.092 6235040 30 22 24 33 32.0 28.0 15.5 0.120 2194783 30 24 SOCKET 3 8" hexagon UD profile Square drive as per DIN 3120 - C 10 ISO 1174 with ball retention groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated N S ofor SipvE Q"af -d1H F d2H Q"af L d1 d2 0 Code No. 1 4 28 10.1 17.5 5.0 0.023 6232100 30 1 4AF 5 16 28 12.1 17.5 9.0 0.025 6232370 305 16AF 11 32 28 13.1 17.5 9.0 0.025 6232450 30 11 32AF 3 8 28 14.1 17.5 9.0 0.026 6232530 303 8AF 7 16 28 16.1 17.5 9.0 0.028 2101025 30 7 16AF 1 2 28 18.1 19.2 9.0 0.035 2101033 30 1 2AF 9 16 29 20.1 18.7 11.0 0.039 2101041 30 9 16AF 19 32 30 21.0 19.7 12.5 0.044 2101068 3019 32AF 5 8 30 22.1 20.7 12.5 0.048 2101076 305 8AF 11 16 30 24.0 22.7 12.5 0.060 2101084 30 11 16AF 3 4 30 26.0 23.7 12.5 0.065 2101092 30 3 4AF 7 8 32 30.0 26.5 14.5 0.120 2101106 307 8AF D 30 (MM) SOCKET 3 8" bi-hexagon UD profile Acc. to DIN 3124 ISO 2725-1 Square drive as per DIN 3120 - C 10 ISO 1174 with ball retention groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated not standardised N S fmilT wuve m m L d1 d2 0 Code No. 6 28 9.7 17.5 5.0 0.111 1845705 D 30 6 7 28 11.0 17.5 5.0 0.024 1845713 D 30 7 8 28 12.1 17.5 9.0 0.026 1845721 D 30 8 9 28 13.5 17.5 9.0 0.027 1845748 D 30 9 10 28 14.7 17.5 9.0 0.028 6229230 D 30 10 11 28 16.0 17.5 9.0 0.030 6230670 D 30 11 12 28 17.2 18.3 9.0 0.032 6230750 D 30 12 13 28 18.5 17.5 9.0 0.031 6230830 D 30 13 14 29 19.7 18.4 11.0 0.037 6230910 D 30 14 15 30 21.0 19.7 12.5 0.040 6231050 D 30 15 16 30 22.2 21.0 12.5 0.049 6231130 D 30 16 17 30 23.5 22.3 12.5 0.054 6231210 D 30 17 18 30 24.7 23.0 12.5 0.062 6231480 D 30 18 19 30 26.0 23.7 12.5 0.064 6231560 D 30 19 20 31 27.2 24.5 12.5 0.074 6231640 D 30 20 21 31 28.5 25.8 13.5 0.083 6231720 D 30 21 22 32 29.7 26.3 14.5 0.087 6231800 D 30 22 24 33 32.0 28.0 15.5 0.100 2194864 D 30 24 SOCKET 3 8" bi-hexagon UD profile Square drive as per DIN 3120 - C 10 ISO 1174 with ball retention groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated N S fmilT 3' Q"af Q"af L d1 d2 0 Code No. 1 4 28 10.1 17.5 5.0 0.050 2016613 D 30 1 4AF 9 32 28 11.1 17.5 5.0 0.020 2101009 D 30 9 32AF 5 16 28 12.1 17.5 5.0 0.020 1997122 D305 16AF 11 32 28 13.1 17.5 9.0 0.026 2101017 D 30 11 32AF 3 8 28 14.1 17.5 9.0 0.010 1997130 D 30 3 8AF 13 32 28 15.0 17.5 9.0 0.030 1997149 D 30 13 32AF 7 16 28 16.1 17.5 9.0 0.027 6232610 D 30 7 16AF 1 2 28 18.1 19.2 9.0 0.034 6232880 D 30 1 2AF 9 16 29 20.1 18.7 11.0 0.036 6232960 D 30 9 16AF 19 32 30 21.0 19.7 12.5 0.039 6233180 D 30 19 32AF 5 8 30 22.1 20.7 12.5 0.044 6233260 D 30 5 8AF 11 16 30 24.0 22.7 12.5 0.053 6233340 D 30 11 16AF 3 4 30 26.0 23.7 12.5 0.061 6233420 D 30 3 4AF 25 32 31 27.0 24.3 12.5 0.075 1997157 D 30 25 32AF 13 16 31 28.0 25.3 12.5 0.080 1997165 D3013 16AF 7 8 32 30.0 26.5 14.5 0.082 6232020 D 30 7 8AF 15 16 33 31.9 28.0 15.5 0.110 1997173 D 30 15 16AF 1 33 33.9 30.0 15.5 0.120 1983296 D 30 1AF 190
