190 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.188

Каталог GEDORE 2014 Слесарный инструмент Стр. 188 0190 ENG Lab2u

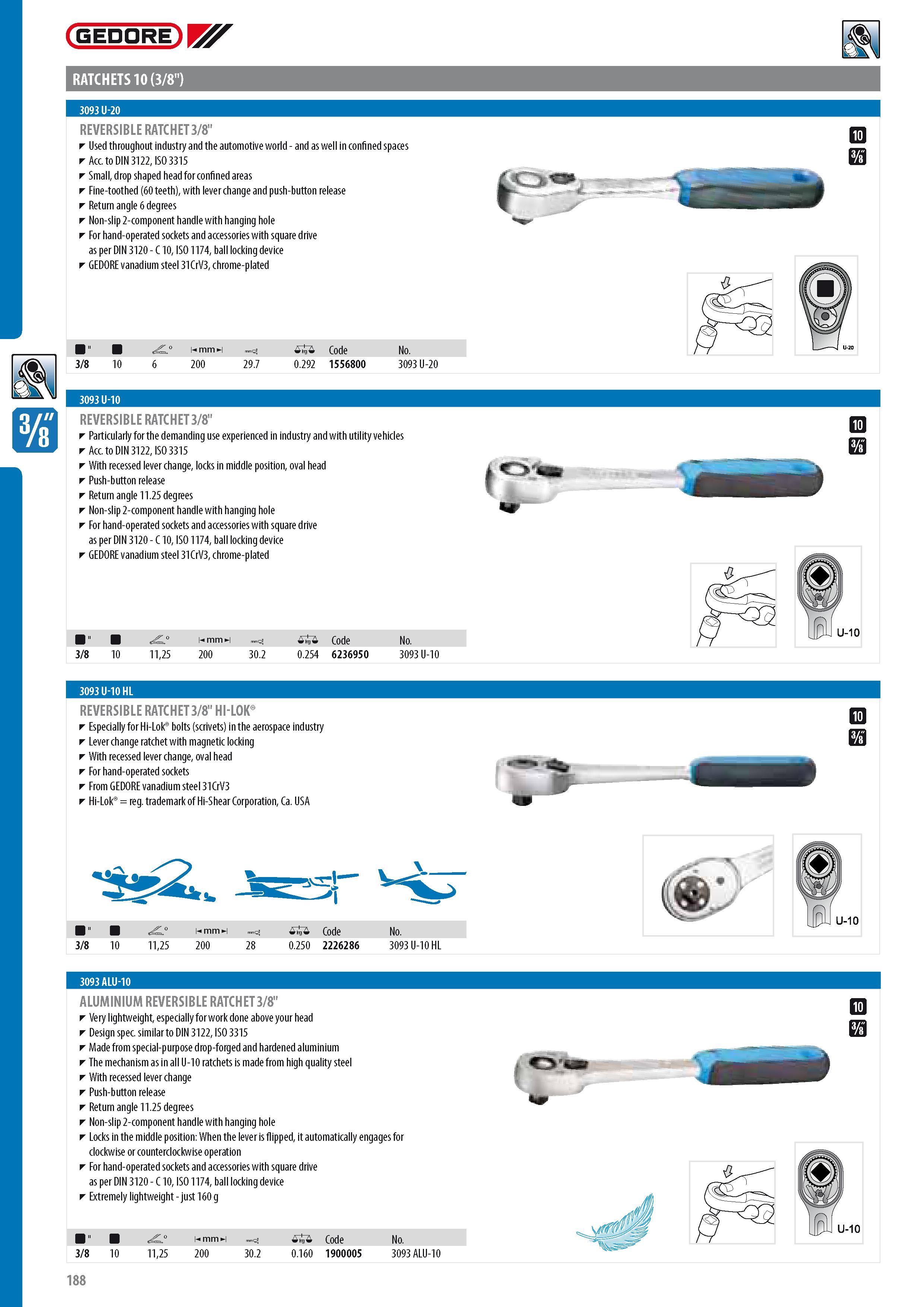

GEDORE RATCHETS 10 (3 8") REVERSIBLE RATCHET 3 8" Used throughout industry and the automotive world - and as well in confined spaces Acc. to DIN 3122 ISO 3315 Small drop shaped head for confined areas Fine-toothed (60 teeth) with lever change and push-button release Return angle 6 degrees Non-slip 2-component handle with hanging hole For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device GEDORE vanadium steel 31CrV3 chrome-plated " 3 8 10 A 6 200 ..3 29.7 0 0.292 Code 1556800 No. 3093 U-20 c c REVERSIBLE RATCHET 3 8" Particularly for the demanding use experienced in industry and with utility vehicles Acc. to DIN 3122 ISO 3315 With recessed lever change locks in middle position oval head Push-button release Return angle 11.25 degrees Non-slip 2-component handle with hanging hole For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device GEDORE vanadium steel 31CrV3 chrome-plated o E3 O' " 3 8 10 A 1125 200 30.2 0 0.254 Code 6236950 No. 3093 U-10 U-10 3093 U-20 3093 U-10 REVERSIBLE RATCHET 3 8" HI-LOK Especially for Hi-Lok bolts (scrivets) in the aerospace industry Lever change ratchet with magnetic locking With recessed lever change oval head For hand-operated sockets From GEDORE vanadium steel 31CrV3 Hi-Lok reg. trademark of Hi-Shear Corporation Ca. USA c -I W " A mmn ..3 0 Code No. 3 8 10 1125 200 28 0.250 2226286 3093 U-10 HL 3093 ALU-10 ALUMINIUM REVERSIBLE RATCHET 3 8" Very lightweight especially for work done above your head Design spec. similar to DIN 3122 ISO 3315 Made from special-purpose drop-forged and hardened aluminium The mechanism as in all U-10 ratchets is made from high quality steel With recessed lever change Push-button release Return angle 11.25 degrees Non-slip 2-component handle with hanging hole Locks in the middle position When the lever is flipped it automatically engages for clockwise or counterclockwise operation For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device Extremely lightweight - just 160 g " A mmn 3 0 Code No. o E3 3 8 10 1125 200 30.2 0.160 1900005 3093 ALU-10 U-10 188
