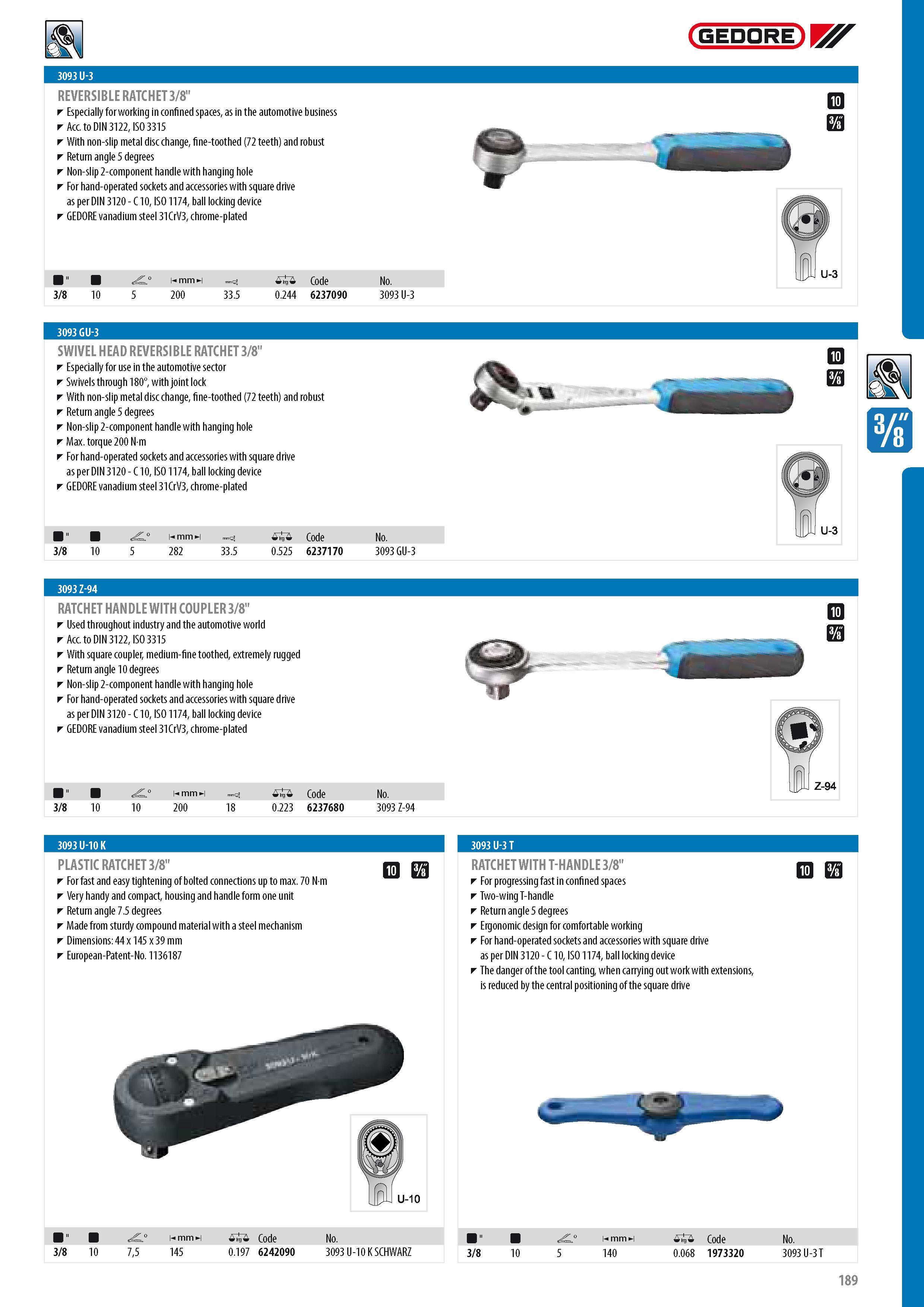

GEDORE REVERSIBLE RATCHET 3 8" Especially for working in confined spaces as in the automotive business Acc. to DIN 3122 ISO 3315 With non-slip metal disc change fine-toothed (72 teeth) and robust Return angle 5 degrees Non-slip 2-component handle with hanging hole For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device GEDORE vanadium steel 31CrV3 chrome-plated o Ea " A hmmH -3 0 Code No. 3 8 10 5 200 33.5 0.244 6237090 3093 U-3 3093 GU-3 SWIVEL HEAD REVERSIBLE RATCHET 3 8" Especially for use in the automotive sector Swivels through 180 with joint lock With non-slip metal disc change fine-toothed (72 teeth) and robust Return angle 5 degrees Non-slip 2-component handle with hanging hole Max. torque 200 Nm For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device GEDORE vanadium steel 31CrV3 chrome-plated " A hmmH 0 Code No. 3 8 10 5 282 33.5 0.525 6237170 3093 GU-3 3093 Z-94 RATCHET HANDLE WITH COUPLER 3 8" Used throughout industry and the automotive world Acc. to DIN 3122 ISO 3315 With square coupler medium-fine toothed extremely rugged Return angle 10 degrees Non-slip 2-component handle with hanging hole For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device GEDORE vanadium steel 31CrV3 chrome-plated " A hmmH 0 Code No. 3 8 10 10 200 18 0.223 6237680 3093 Z-94 U-3 o Ea c U-3 n c Z-94 PLASTIC RATCHET 3 8" For fast and easy tightening of bolted connections up to max. 70 Nm Very handy and compact housing and handle form one unit Return angle 7.5 degrees Made from sturdy compound material with a steel mechanism Dimensions 44 x 145 x 39 mm European-Patent-No. 1136187 n c RATCHET WITH T-HANDLE 3 8" For progressing fast in confined spaces Two-wing T-handle Return angle 5 degrees Ergonomic design for comfortable working For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10 ISO 1174 ball locking device The danger of the tool canting when carrying out work with extensions is reduced by the central positioning of the square drive n c U-10 3093 U-3 3093 U-3 T " 3 8 10 A 75 145 0 Code 0.197 6242090 No. 3093 U-10 K SCHWARZ " 3 8 10 A 5 m 140 0 Code 0.068 1973320 No. 3093 U-3T 189
