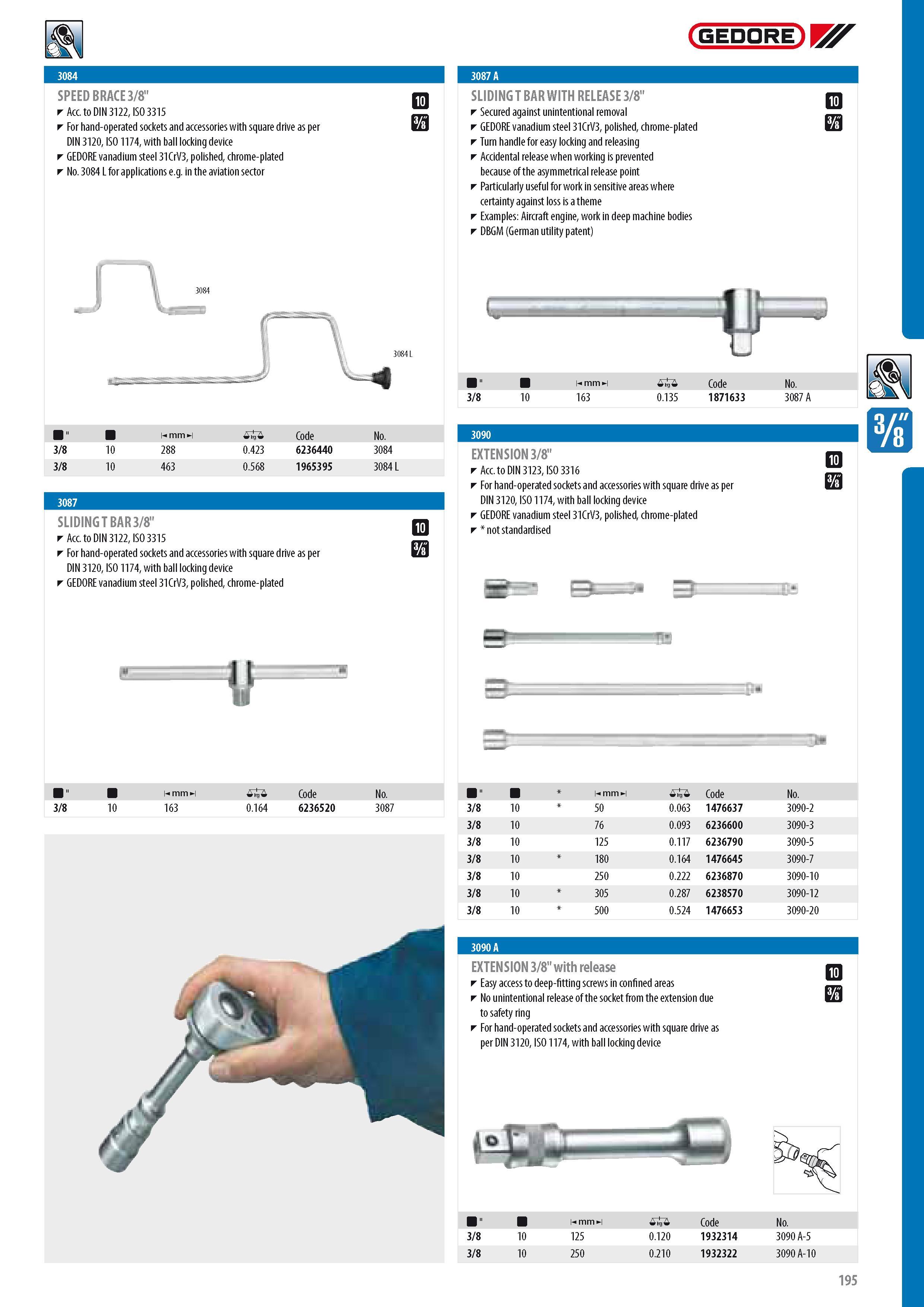

197 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.195

Каталог GEDORE 2014 Слесарный инструмент Стр. 195 0197 ENG Lab2u

GEDORE SPEED BRACE 3 8" Acc. to DIN 3122 ISO 3315 For hand-operated sockets and accessories with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated No. 3084 L for applications e.g. in the aviation sector n c SLIDING T BAR WITH RELEASE 3 8" Secured against unintentional removal GEDORE vanadium steel 31CrV3 polished chrome-plated Turn handle for easy locking and releasing Accidental release when working is prevented because of the asymmetrical release point Particularly useful for work in sensitive areas where certainty against loss is a theme Examples Aircraft engine work in deep machine bodies DBGM (German utility patent) n c 11 m mm ml 0 Code No. 3 8 10 288 0.423 6236440 3084 3 8 10 463 0.568 1965395 3084 L SLIDING T BAR 3 8" Acc. to DIN 3122 ISO 3315 For hand-operated sockets and accessories with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated n c 11 m -i0 Code No. 3 8 10 3 6 0.135 1871633 3087 A 3090 EXTENSION 3 8" Acc. to DIN 3123 ISO 3316 For hand-operated sockets and accessories with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated not standardised n c c 11 mmm m w0 Code No. " m -i0 Code No. 3 8 10 163 0.164 6236520 3087 3 8 10 50 0.063 1476637 3090-2 3 8 10 76 0.093 6236600 3090-3 3 8 10 125 0.117 6236790 3090-5 3 8 10 180 0.164 1476645 3090-7 3 8 10 250 0.222 6236870 3090-10 3 8 10 305 0.287 6238570 3090-12 3 8 10 500 0.524 1476653 3090-20 EXTENSION 3 8" with release Easy access to deep-fitting screws in confined areas No unintentional release of the socket from the extension due to safety ring For hand-operated sockets and accessories with square drive as per DIN 3120 ISO 1174 with ball locking device n c 11 m 0 Code No. 3 8 10 125 0.120 1932314 3090A-5 3 8 10 250 0.210 1932322 3090 A-10 195 3084 3084 3087
