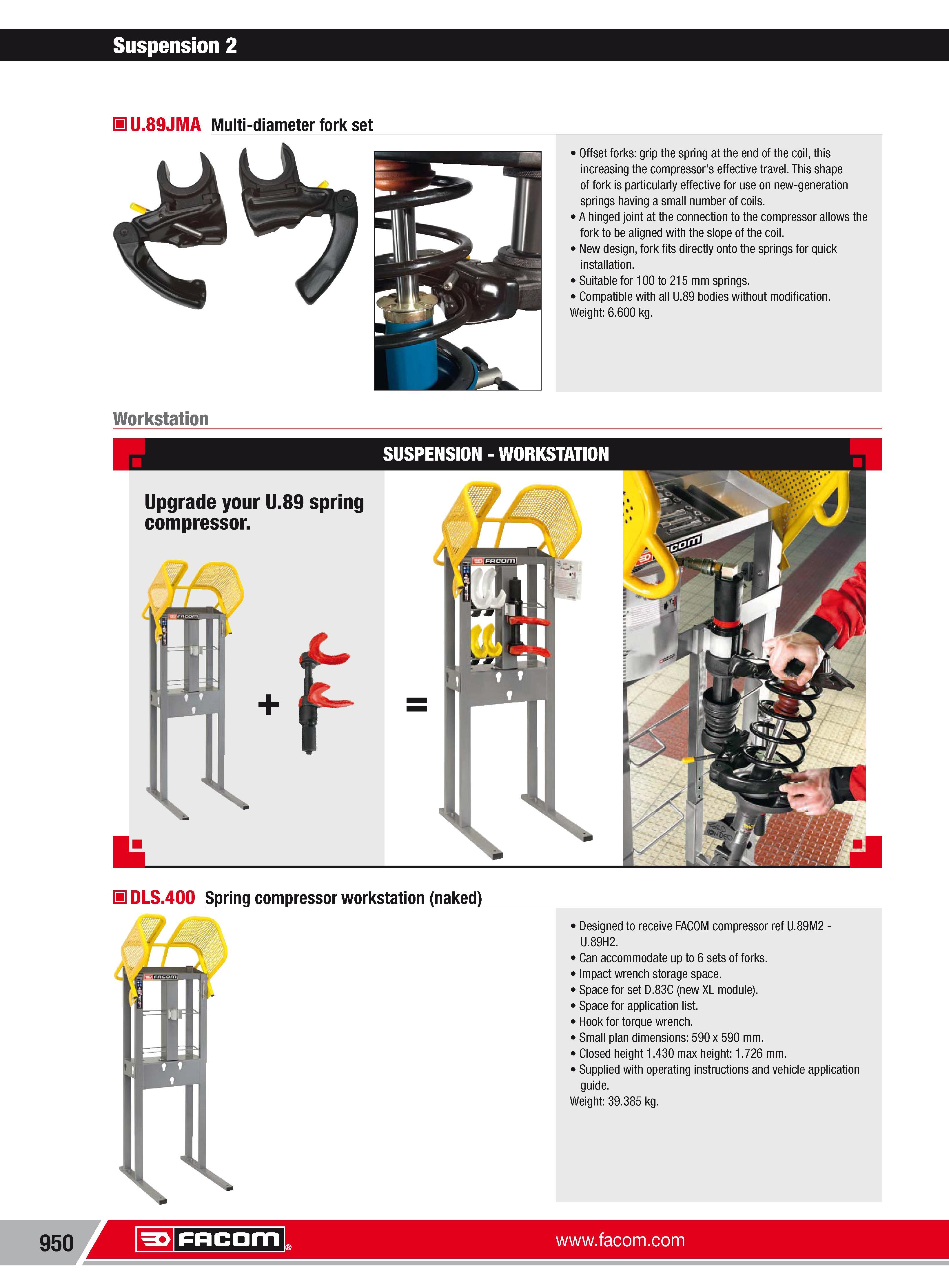

Suspension 2 H U.89JMA Multi-diameter fork set Offset forks grip the spring at the end of the coil this increasing the compressor's effective travel. This shape of fork is particularly effective for use on new-generation springs having a small number of coils. A hinged joint at the connection to the compressor allows the fork to be aligned with the slope of the coil. New design fork fits directly onto the springs for quick installation. Suitable for 100 to 215 mm springs. Compatible with all U.89 bodies without modification. Weight 6.600 kg. Workstation SUSPENSION WORKSTATION Upgrade your U.89 spring compressor. H DLS.400 Spring compressor workstation (naked) Designed to receive FACOM compressor ref U.89M2 V U.89H2. Can accommodate up to 6 sets of forks. Impact wrench storage space. Space for set D.83C (new XL module). Space for application list. Hook for torque wrench. Small plan dimensions 590 x 590 mm. Closed height 1.430 max height 1.726 mm. Supplied with operating instructions and vehicle application guide. Weight 39.385 kg. 950 Facom
