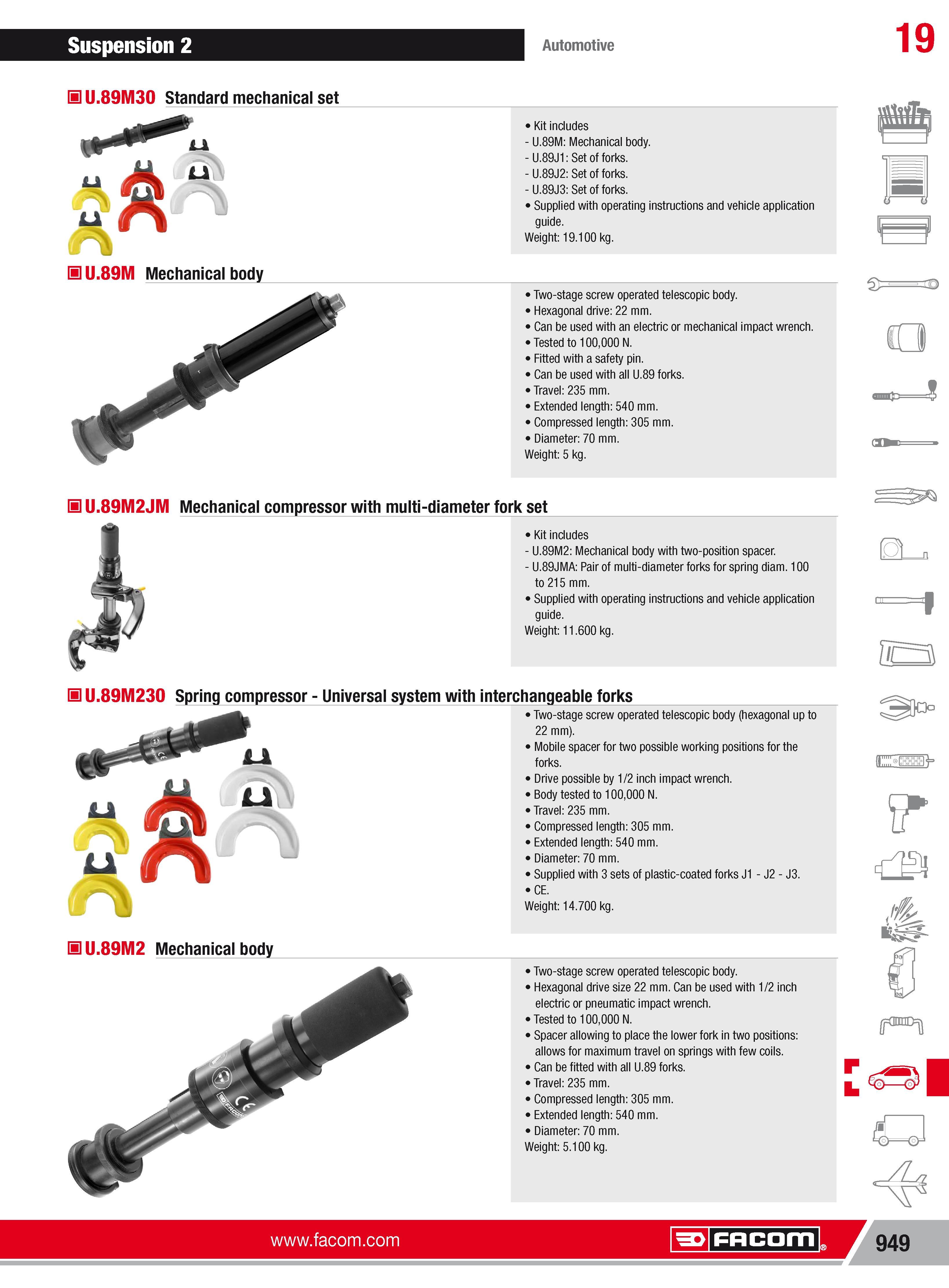

975 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.949

Каталог FACOM 2013 Инструмент Оборудование Стр. 949 0975 ENG Lab2u

Suspension 2 Automotive 19 H U.89M30 Standard mechanical set H U.89M Mechanical body Kit includes U.89M Mechanical body. U.89J1 Set of forks. U.89J2 Set of forks. U.89J3 Set of forks. Supplied with operating instructions and vehicle application guide. Weight 19.100 kg. Two-stage screw operated telescopic body. Hexagonal drive 22 mm. Can be used with an electric or mechanical impact wrench. Tested to 100000 N. Fitted with a safety pin. Can be used with all U.89 forks. Travel 235 mm. Extended length 540 mm. Compressed length 305 mm. Diameter 70 mm. Weight 5 kg. H U.89M2JM Mechanical compressor with multi-diameter fork set Kit includes U.89M2 Mechanical body with two-position spacer. U.89JMA Pair of multi-diameter forks for spring diam. 100 to 215 mm. Supplied with operating instructions and vehicle application guide. Weight 11.600 kg. U.89M230 Spring compressor Universal system with interchangeable forks u A LI" Lk L U.89M2 Mechanical body Two-stage screw operated telescopic body (hexagonal up to 22 mm). Mobile spacer for two possible working positions for the forks. Drive possible by 1 2 inch impact wrench. Body tested to 100000 N. Travel 235 mm. Compressed length 305 mm. Extended length 540 mm. Diameter 70 mm. Supplied with 3 sets of plastic-coated forks J1-J2- J3. CE. Weight 14.700 kg. Two-stage screw operated telescopic body. Hexagonal drive size 22 mm. Can be used with 1 2 inch electric or pneumatic impact wrench. Tested to 100000 N. Spacer allowing to place the lower fork in two positions allows for maximum travel on springs with few coils. Can be fitted with all U.89 forks. Travel 235 mm. Compressed length 305 mm. Extended length 540 mm. Diameter 70 mm. Weight 5.100 kg. Facom 949 Facom
