973 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.947

Каталог FACOM 2013 Инструмент Оборудование Стр. 947 0973 ENG Lab2u

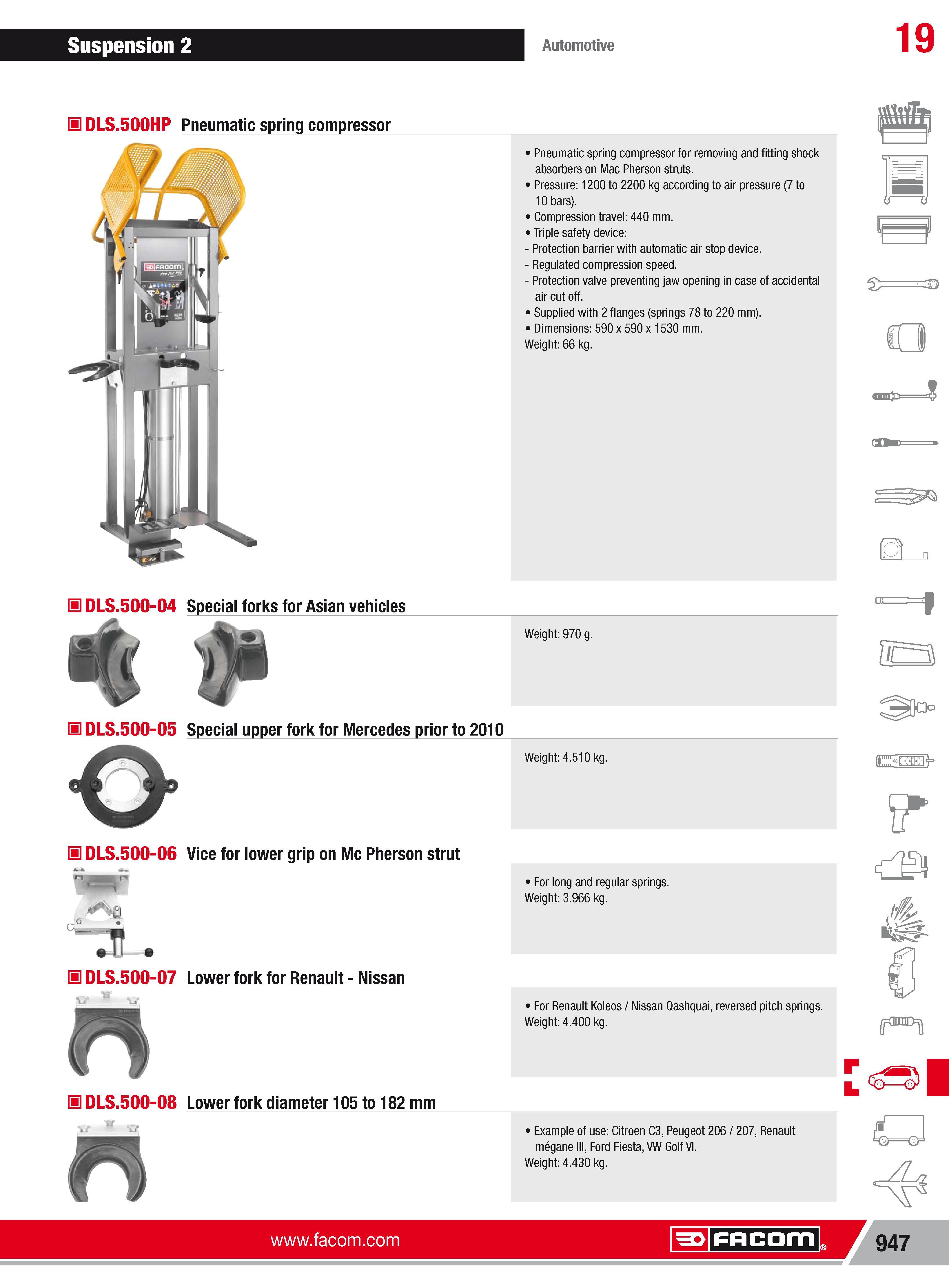

Suspension 2 Automotive 19 H DLS.500HP Pneumatic spring compressor Pneumatic spring compressor for removing and fitting shock absorbers on Mac Pherson struts. Pressure 1200 to 2200 kg according to air pressure (7 to 10 bars). Compression travel 440 mm. Triple safety device Protection barrier with automatic air stop device. Regulated compression speed. Protection valve preventing jaw opening in case of accidental air cut off. Supplied with 2 flanges (springs 78 to 220 mm). Dimensions 590 x590x 1530 mm. Weight 66 kg. 3 H DLS.500-04 Special forks for Asian vehicles Weight 970 g. II DLS.500-05 Special upper fork for Mercedes prior to 2010 Weight 4.510 kg. H DLS.500-06 Vice for lower grip on Mc Pherson strut For long and regular springs. Weight 3.966 kg. H DLS.500-07 Lower fork for Renault Nissan v. B w For Renault Koleos Nissan Qashquai reversed pitch springs. Weight 4.400 kg. H DLS.500-08 Lower fork diameter 105 to 182 mm Example of use Citroen C3 Peugeot 206 207 Renault megane Ford Fiesta VW Golf VI. Weight 4.430 kg. Facom 947
