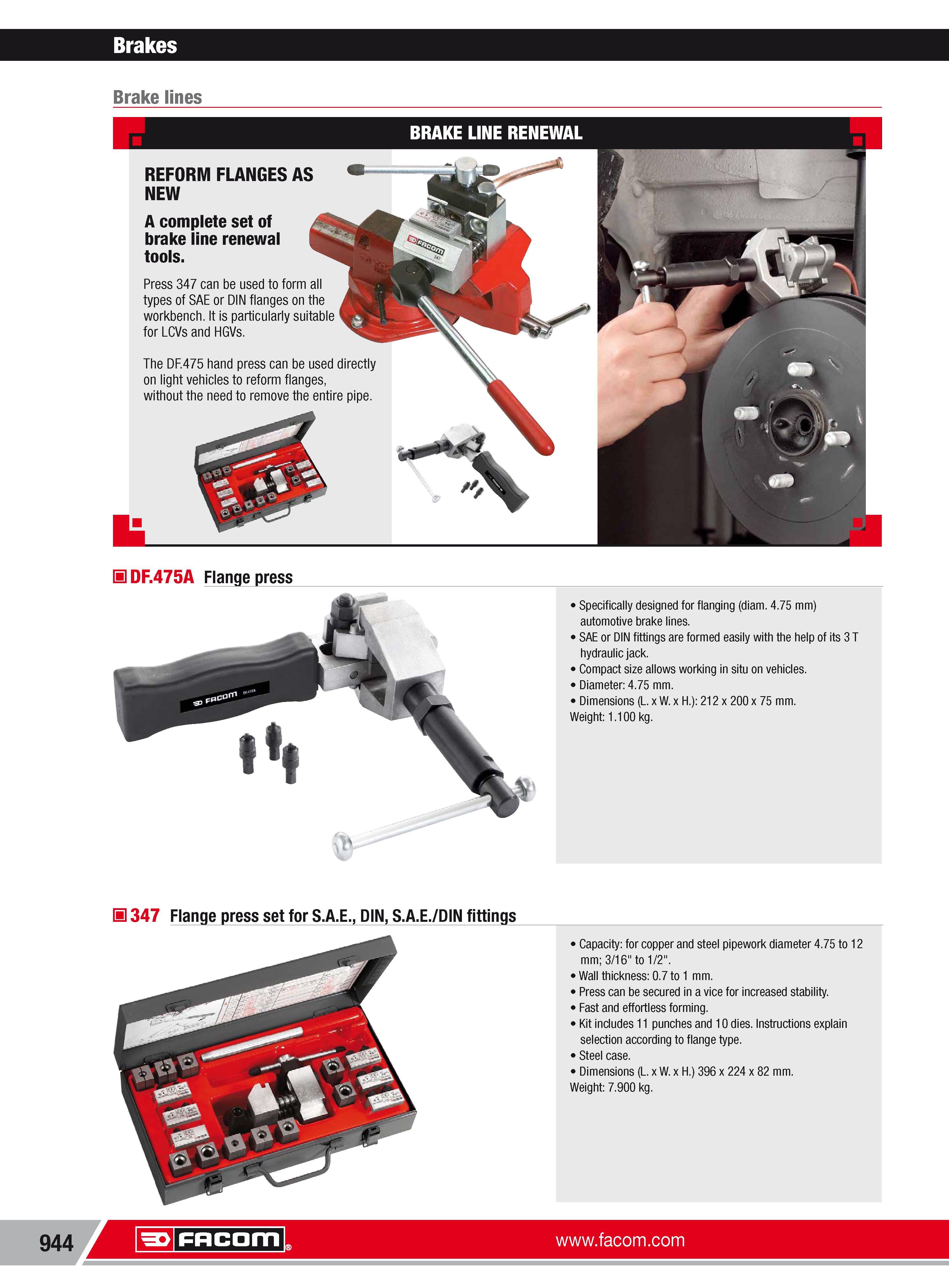

970 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.944

Каталог FACOM 2013 Инструмент Оборудование Стр. 944 0970 ENG Lab2u

Brakes Brake lines d BRAKE LINE RENEWAL REFORM FLANGES AS NEW A complete set of brake line renewal tools. Press 347 can be used to form all types of SAE or DIN flanges on the workbench. It is particularly suitable for LCVs and HGVs. The DF.475 hand press can be used directly on light vehicles to reform flanges without the need to remove the entire pipe. H DF.475A Flange press Specifically designed for flanging (diam. 4.75 mm) automotive brake lines. SAE or DIN fittings are formed easily with the help of its 3 T hydraulic jack. Compact size allows working in situ on vehicles. Diameter 4.75 mm. Dimensions (L.xW.x H.) 212x 200x 75 mm. Weight 1.100 kg. H 347 Flange press set for S.A.E. DIN S.A.E. DIN fittings Capacity for copper and steel pipework diameter 4.75 to 12 mm; 3 16" to 1 2". Wall thickness 0.7 to 1 mm. Press can be secured in a vice for increased stability. Fast and effortless forming. Kit includes 11 punches and 10 dies. Instructions explain selection according to flange type. Steel case. Dimensions (L.xW.x H.) 396x 224x82 mm. Weight 7.900 kg. 944 Facom
