977 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.951

Каталог FACOM 2013 Инструмент Оборудование Стр. 951 0977 ENG Lab2u

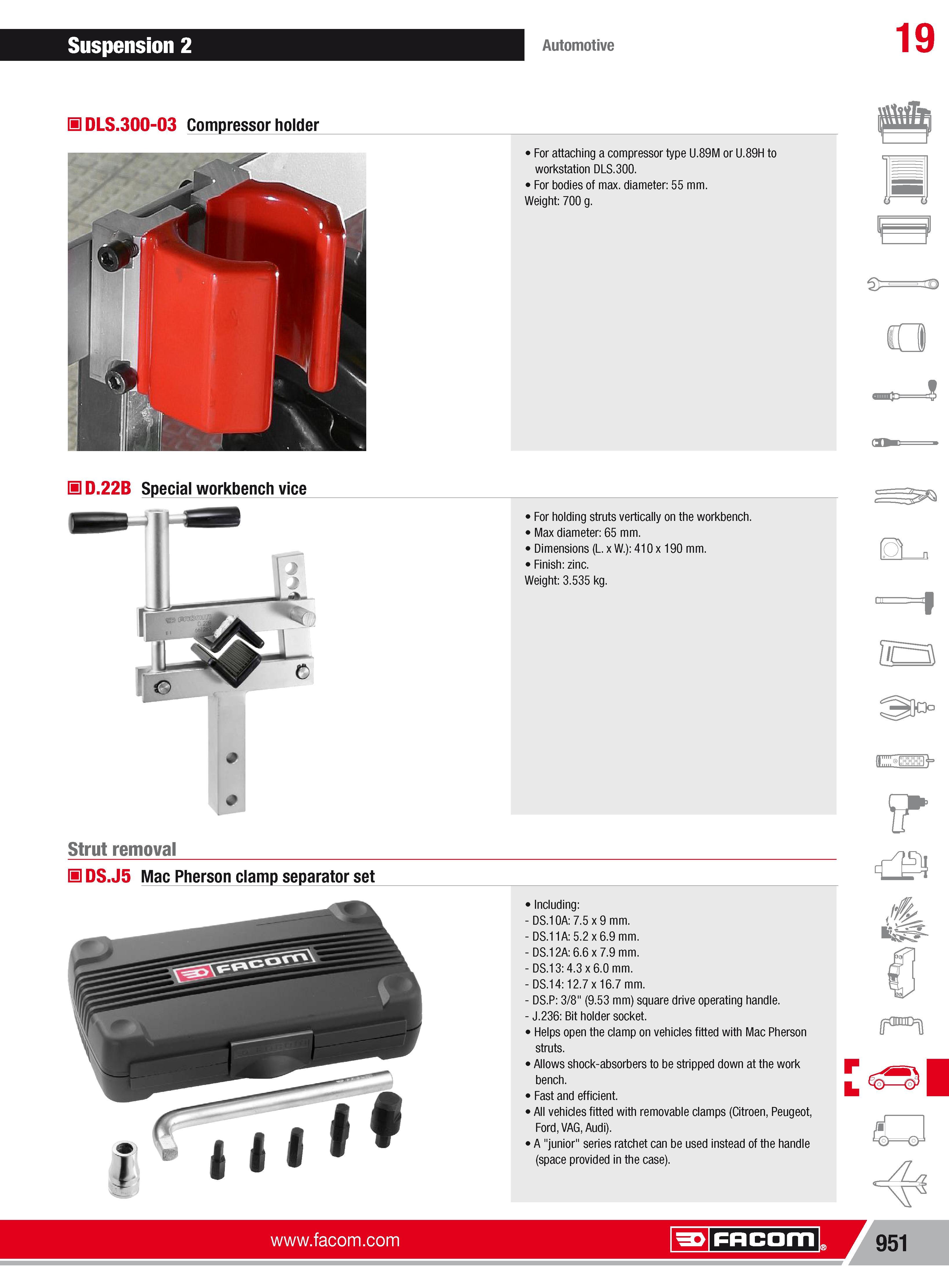

Suspension 2 Automotive 19 H DLS.300-03 Compressor holder For attaching a compressor type U.89M or U.89H to workstation DLS.300. For bodies of max. diameter 55 mm. Weight 700 g. 3 H D.22B Special workbench vice Strut removal H DS.J5 Mac Pherson clamp separator set For holding struts vertically on the workbench. Max diameter 65 mm. Dimensions (L. x W.) 410 x190 mm. Finish zinc. Weight 3.535 kg. Including DS.10A 7.5x9 mm. DS.11A:5.2x6.9mm. DS.12A 6.6 x7.9 mm. DS.13:4.3x6.0mm. -DS.14:12.7x16.7mm. DS.P 3/8" (9.53 mm) square drive operating handle. J.236 Bit holder socket. Helps open the clamp on vehicles fitted with Mac Pherson struts. Allows shock-absorbers to be stripped down at the work bench. Fast and efficient. All vehicles fitted with removable clamps (Citroen Peugeot Ford VAG Audi). A "junior" series ratchet can be used instead of the handle (space provided in the case). Facom 951
