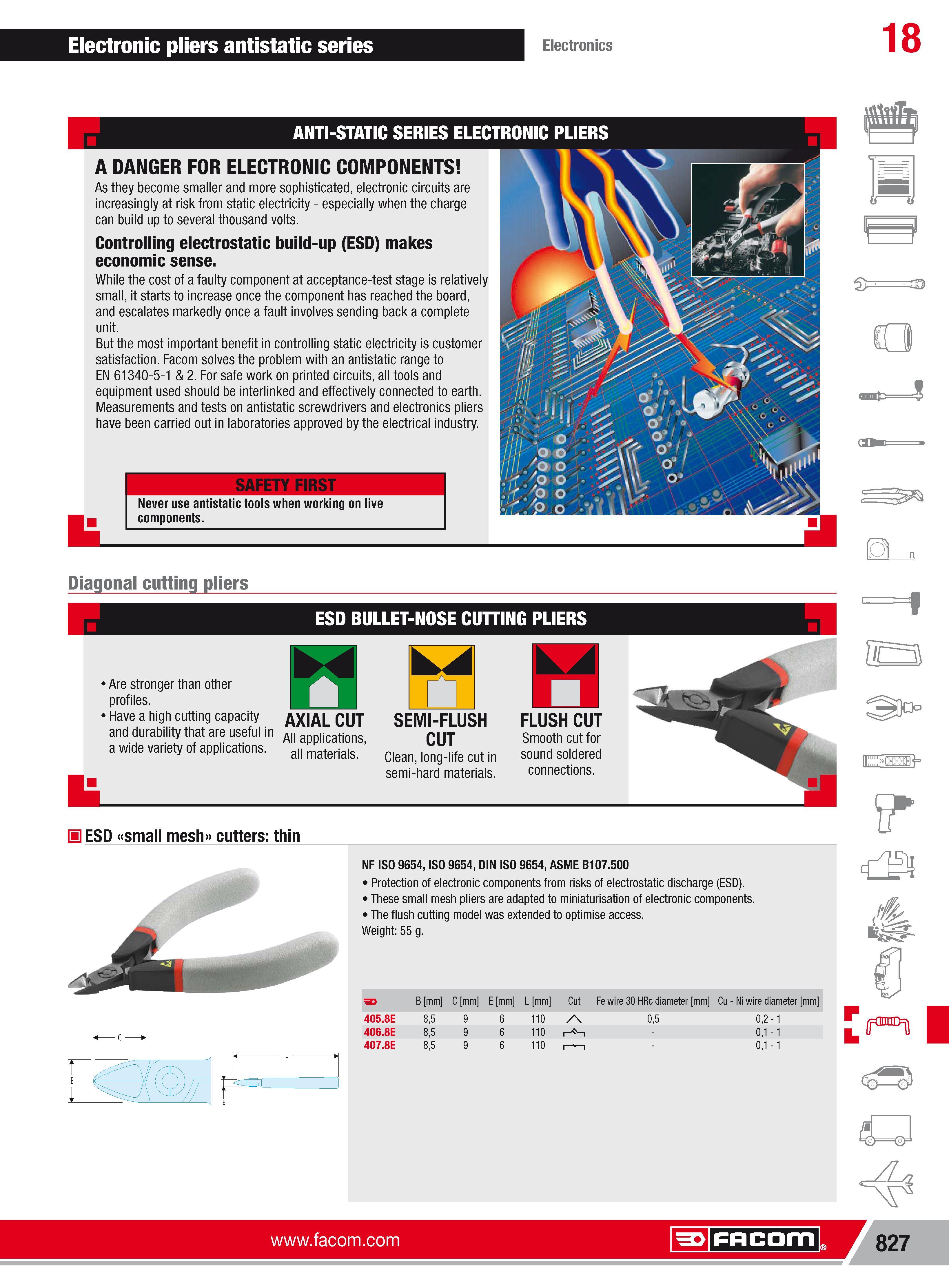

853 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.827

Каталог FACOM 2013 Инструмент Оборудование Стр. 827 0853 ENG Lab2u

Electronic pliers antistatic series Electronics 18 A DANGER FOR ELECTRONIC COMPONENTS As they become smaller and more sophisticated electronic circuits are increasingly at risk from static electricity especially when the charge can build up to several thousand volts. Controlling electrostatic build-up (ESD) makes economic sense. While the cost of a faulty component at acceptance-test stage is relatively small it starts to increase once the component has reached the board and escalates markedly once a fault involves sending back a complete unit. But the most important benefit in controlling static electricity is customer satisfaction. Facom solves the problem with an antistatic range to EN 61340-5-1 & 2. For safe work on printed circuits all tools and equipment used should be interlinked and effectively connected to earth. Measurements and tests on antistatic screwdrivers and electronics pliers have been carried out in laboratories approved by the electrical industry. SAFETY FIRST Never use antistatic tools when working on live components. 1 Ki m Diagonal cutting pliers ESD BULLET-NOSE CUTTING PLIERS Are stronger than other profiles. Have a high cutting capacity and durability that are useful in a wide variety of applications. A A W'l Jk. AXIAL CUT All applications all materials. SEMI-FLUSH CUT Clean long-life cut in semi-hard materials. FLUSH CUT Smooth cut for sound soldered connections. H ESD small mesh cutters thin NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). These small mesh pliers are adapted to miniaturisation of electronic components. The flush cutting model was extended to optimise access. Weight 55 g. B mm C mm E mm L mm Cut Fe wire 30 HRc diameter mm Cu Ni wire diameter mm 405.8E 85 9 6 110 05 02 1 406.8E 85 9 6 110 01 1 407.8E 85 9 6 110 r i 01 1 Facom 827 Facom
