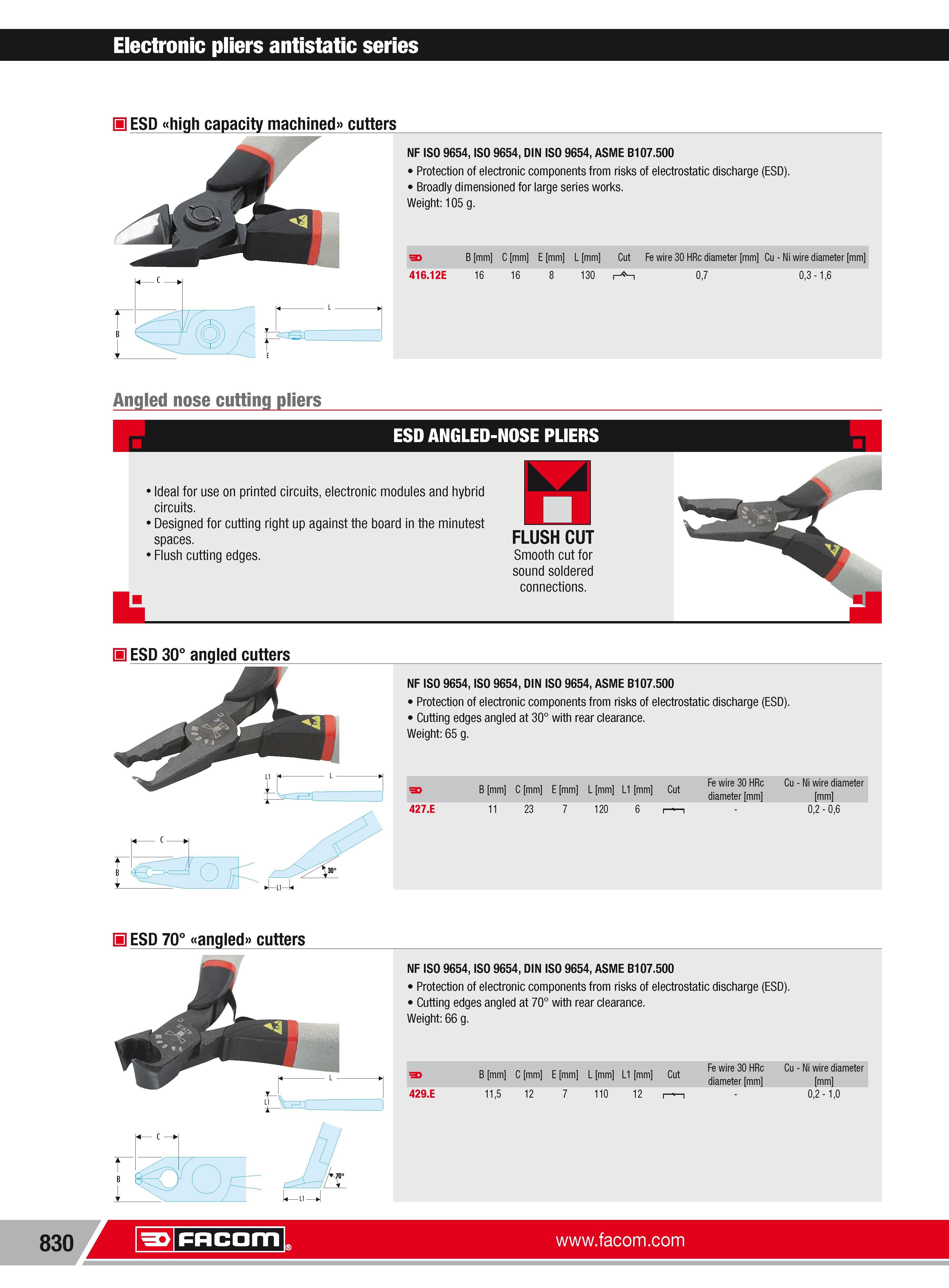

856 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.830

Каталог FACOM 2013 Инструмент Оборудование Стр. 830 0856 ENG Lab2u

Electronic pliers antistatic series H ESD high capacity machined cutters NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). Broadly dimensioned for large series works. Weight 105 g. 3 B mm C mm E mm L mm Cut Fe wire 30 HRc diameter mm Cu Ni wire diameter mm 416.12E 16 16 8 130 07 03 16 Angled nose cutting pliers ESD ANGLED-NOSE PLIERS 1 Ideal for use on printed circuits electronic modules and hybrid circuits. 1 Designed for cutting right up against the board in the minutest spaces. 1 Flush cutting edges. FLUSH CUT Smooth cut for sound soldered connections. 11 ESD 30 angled cutters NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). Cutting edges angled at 30 with rear clearance. Weight 65 g. 427.E B mm C mm E mm L mm L1 mm Cut 11 23 7 120 6 i 1 Fe wire 30 HRc diameter mm Cu Ni wire diameter mm 02 06 H ESD 70 angled cutters NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). Cutting edges angled at 70 with rear clearance. Weight 66 g. 429.E B mm C mm E mm L mm L1 mm Cut 115 12 7 110 12 n Fe wire 30 HRc Cu Ni wire diameter diameter mm mm 02 10 830 Facom
