855 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.829

Каталог FACOM 2013 Инструмент Оборудование Стр. 829 0855 ENG Lab2u

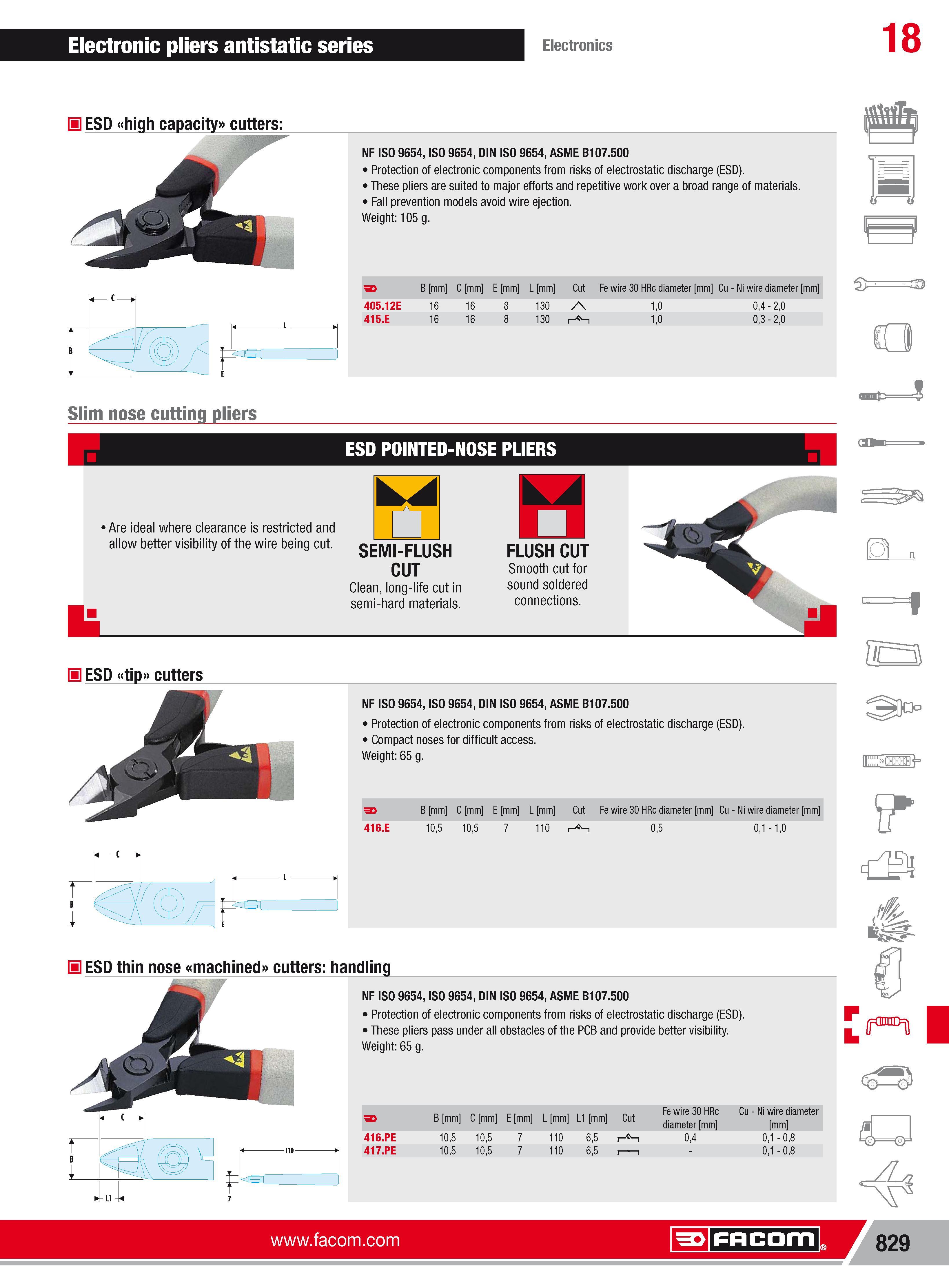

Electronic pliers antistatic series Electronics 18 H ESD high capacity cutters fis NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). These pliers are suited to major efforts and repetitive work over a broad range of materials. Fall prevention models avoid wire ejection. Weight 105 g. B mm C mm E mm L mm Cut Fe wire 30 HRc diameter mm Cu Ni wire diameter mm 405.12E 16 16 8 130 10 04 20 415.E 16 16 8 130 10 03 20 Slim nose cutting pliers d ESD POINTED-NOSE PLIERS Are ideal where clearance is restricted and allow better visibility of the wire being cut. SEMI-FLUSH CUT Clean long-life cut in semi-hard materials. FLUSH CUT Smooth cut for sound soldered connections. H ESD tip cutters NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). Compact noses for difficult access. Weight 65 g. B mm C mm E mm L mm Cut Fe wire 30 HRc diameter mm Cu Ni wire diameter mm 416.E 105 105 7 110 r i 05 01 10 ESD thin nose machined cutters handling NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Protection of electronic components from risks of electrostatic discharge (ESD). These pliers pass under all obstacles of the PCB and provide better visibility. Weight 65 g. 110 SL B mm C mm E mm L mm L1 mm Cut Fe wire 30 HRc diameter mm Cu Ni wire diameter mm 416.PE 105 105 7 110 65 04 01 08 417.PE 105 105 7 110 65 01 08 Facom 829 Facom
