850 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.824

Каталог FACOM 2013 Инструмент Оборудование Стр. 824 0850 ENG Lab2u

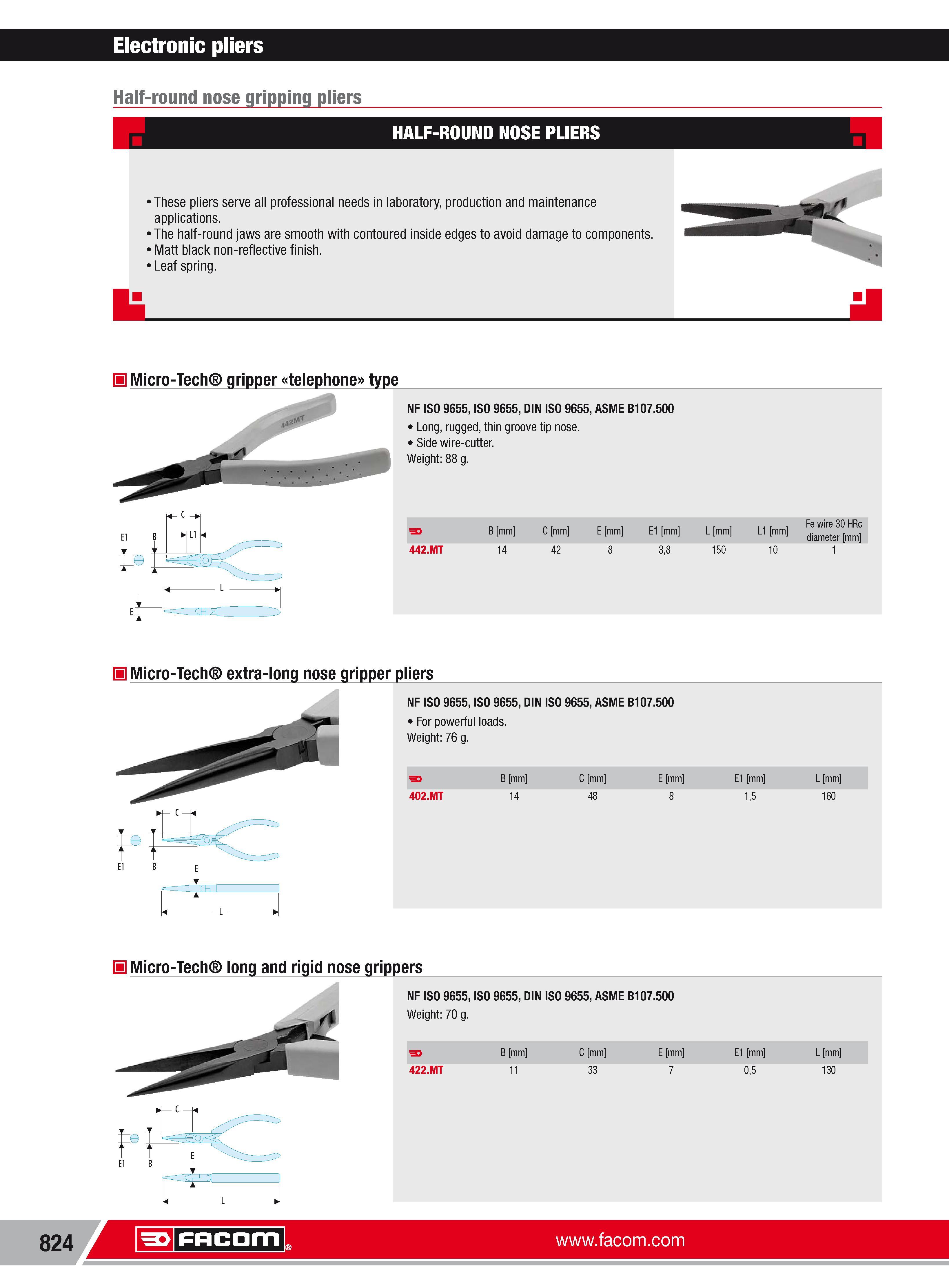

Electronic pliers Half-round nose gripping pliers HALF-ROUND NOSE PLIERS -These pliers serve all professional needs in laboratory production and maintenance applications. The half-round jaws are smooth with contoured inside edges to avoid damage to components. Matt black non-reflective finish. Leaf spring. H Micro-Tech gripper telephone type NF ISO 9655 ISO 9655 DIN ISO 9655 ASME B107.500 Long rugged thin groove tip nose. Side wire-cutter. Weight 88 g. -C LI 3 B mm C mm E mm E1 mm L mm L1 mm Fe wire 30 HRc diameter mm 442.MT 14 42 8 38 150 10 1 H Micro-Tech extra-long nose gripper pliers NF ISO 9655 ISO 9655 DIN ISO 9655 ASME B107.500 For powerful loads. Weight 76 g. 3 B mm C mm E mm E1 mm L mm 402.MT 14 48 8 15 160 H Micro-Tech long and rigid nose grippers NF ISO 9655 ISO 9655 DIN ISO 9655 ASME B107.500 Weight 70 g. B mm C mm E mm E1 mm L mm 422.MT 11 33 7 05 130 c t t El B Facom
