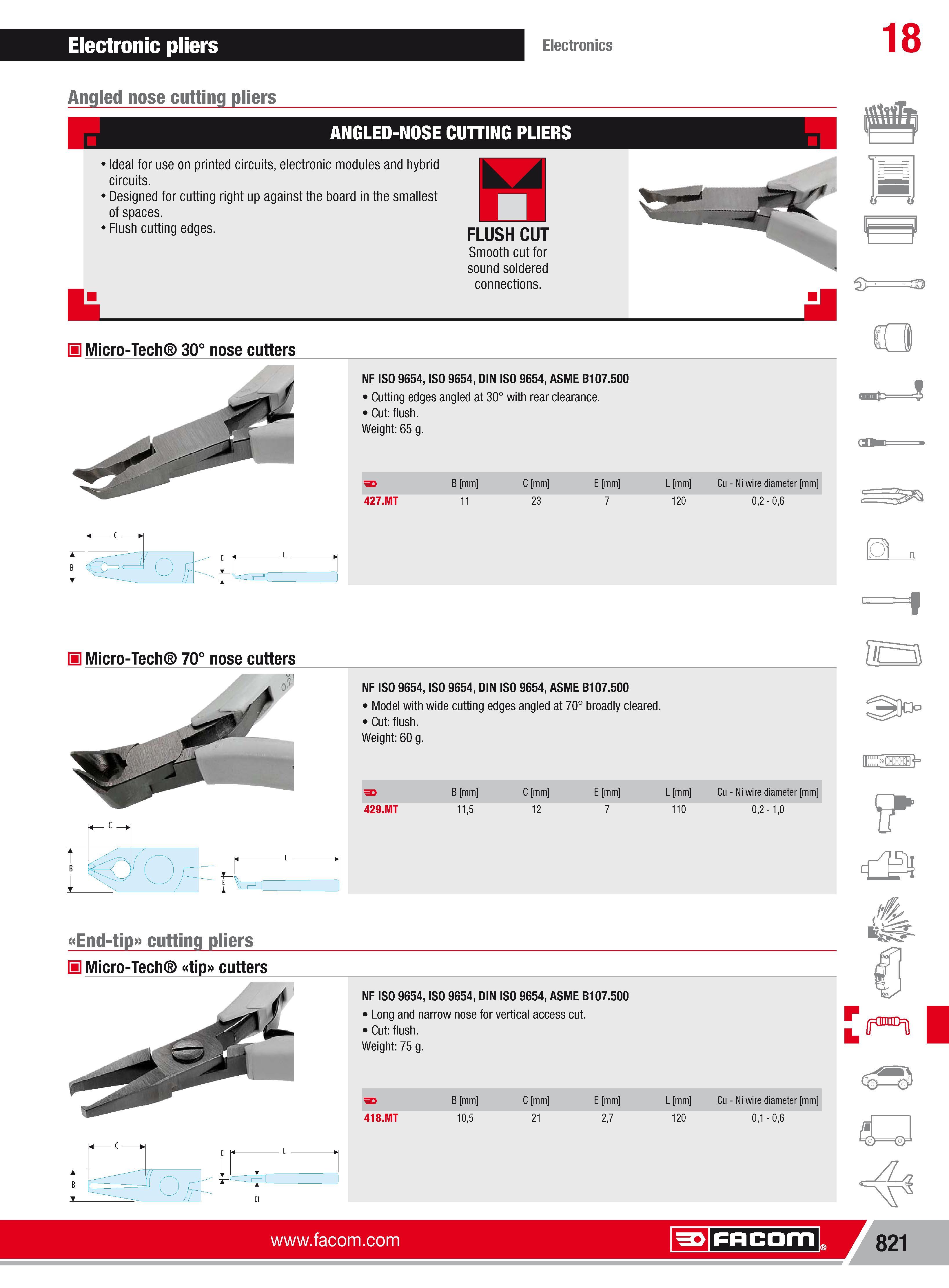

847 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.821

Каталог FACOM 2013 Инструмент Оборудование Стр. 821 0847 ENG Lab2u

Electronic pliers Electronics 18 Angled nose cutting pliers d ANGLED-NOSE CUTTING PLIERS 1 Ideal for use on printed circuits electronic modules and hybrid circuits. 1 Designed for cutting right up against the board in the smallest of spaces. 1 Flush cutting edges. H Micro-Tech 30 nose cutters FLUSH CUT Smooth cut for sound soldered connections. NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Cutting edges angled at 30 with rear clearance. Cut flush. Weight 65 g. B mm C mm E mm L mm Cu Ni wire diameter mm 427.MT 11 23 7 120 02 06 c 11 Micro-Tech 70 nose cutters End-tip cutting pliers H Micro-Tech tip cutters NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Model with wide cutting edges angled at 70 broadly cleared. Cut flush. Weight 60 g. B mm C mm E mm L mm Cu Ni wire diameter mm 429.MT 115 12 7 110 02 10 Facom M s NF ISO 9654 ISO 9654 DIN ISO 9654 ASME B107.500 Long and narrow nose for vertical access cut. Cut flush. Weight 75 g. B mm C mm E mm L mm Cu Ni wire diameter mm 418.MT 105 21 27 120 01 06 J 821
