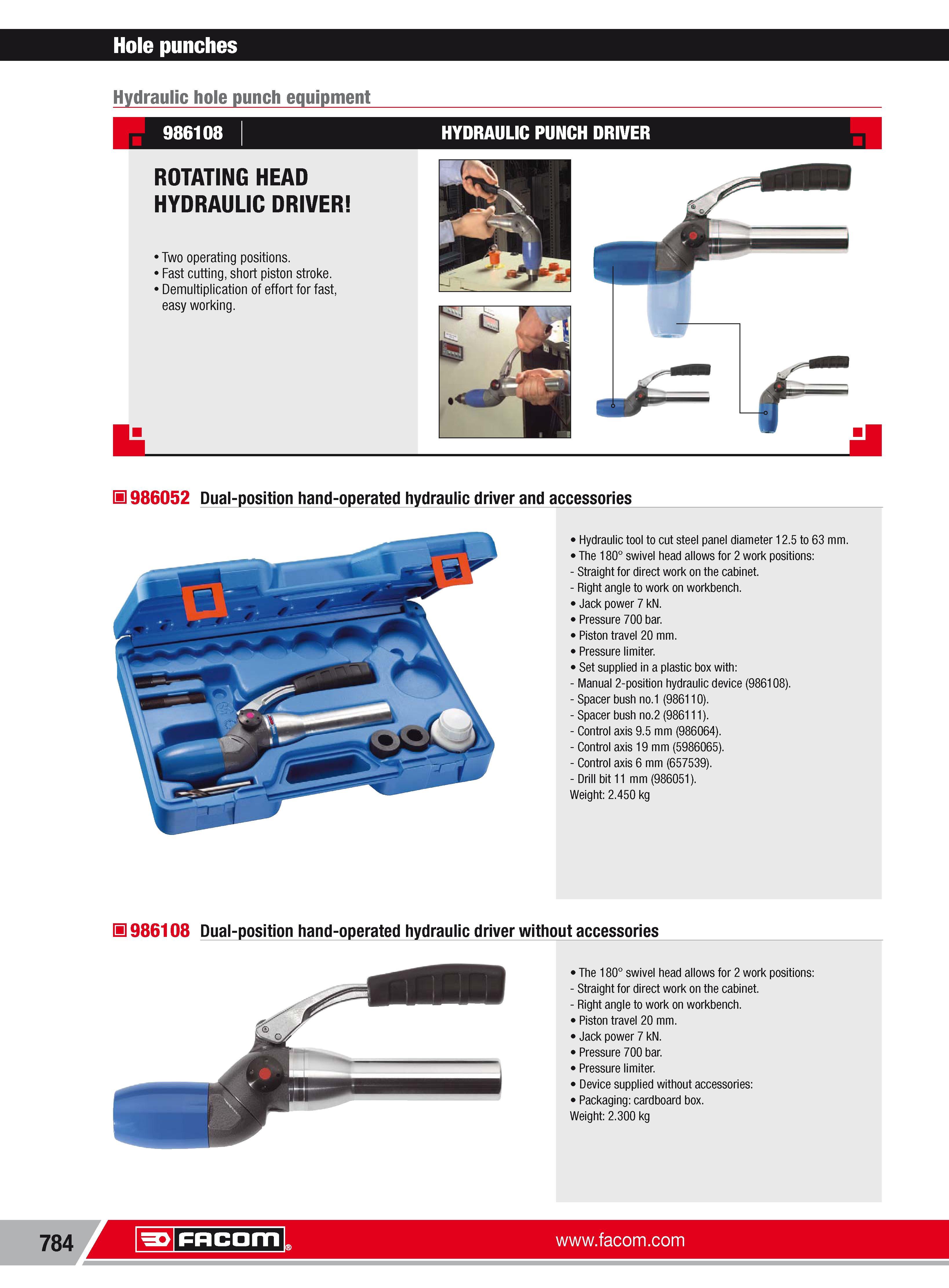

Hole punches Hydraulic hole punch equipment 986108 ROTATING HEAD HYDRAULIC DRIVER Two operating positions. Fast cutting short piston stroke. Demultiplication of effort for fast easy working. HYDRAULIC PUNCH DRIVER H 986052 Dual-position hand-operated hydraulic driver and accessories Hydraulic tool to cut steel panel diameter 12.5 to 63 mm. The 180 swivel head allows for 2 work positions Straight for direct work on the cabinet. Right angle to work on workbench. Jack power 7 kN. Pressure 700 bar. Piston travel 20 mm. Pressure limiter. Set supplied in a plastic box with Manual 2-position hydraulic device (986108). Spacer bush no.1 (986110). Spacer bush no.2 (986111). Control axis 9.5 mm (986064). Control axis 19 mm (5986065). Control axis 6 mm (657539). -Drill bit 11 mm (986051). Weight 2.450 kg H 986108 Dual-position hand-operated hydraulic driver without accessories The 180 swivel head allows for 2 work positions Straight for direct work on the cabinet. Right angle to work on workbench. Piston travel 20 mm. Jack power 7 kN. Pressure 700 bar. Pressure limiter. Device supplied without accessories Packaging cardboard box. Weight 2.300 kg 784 Facom
