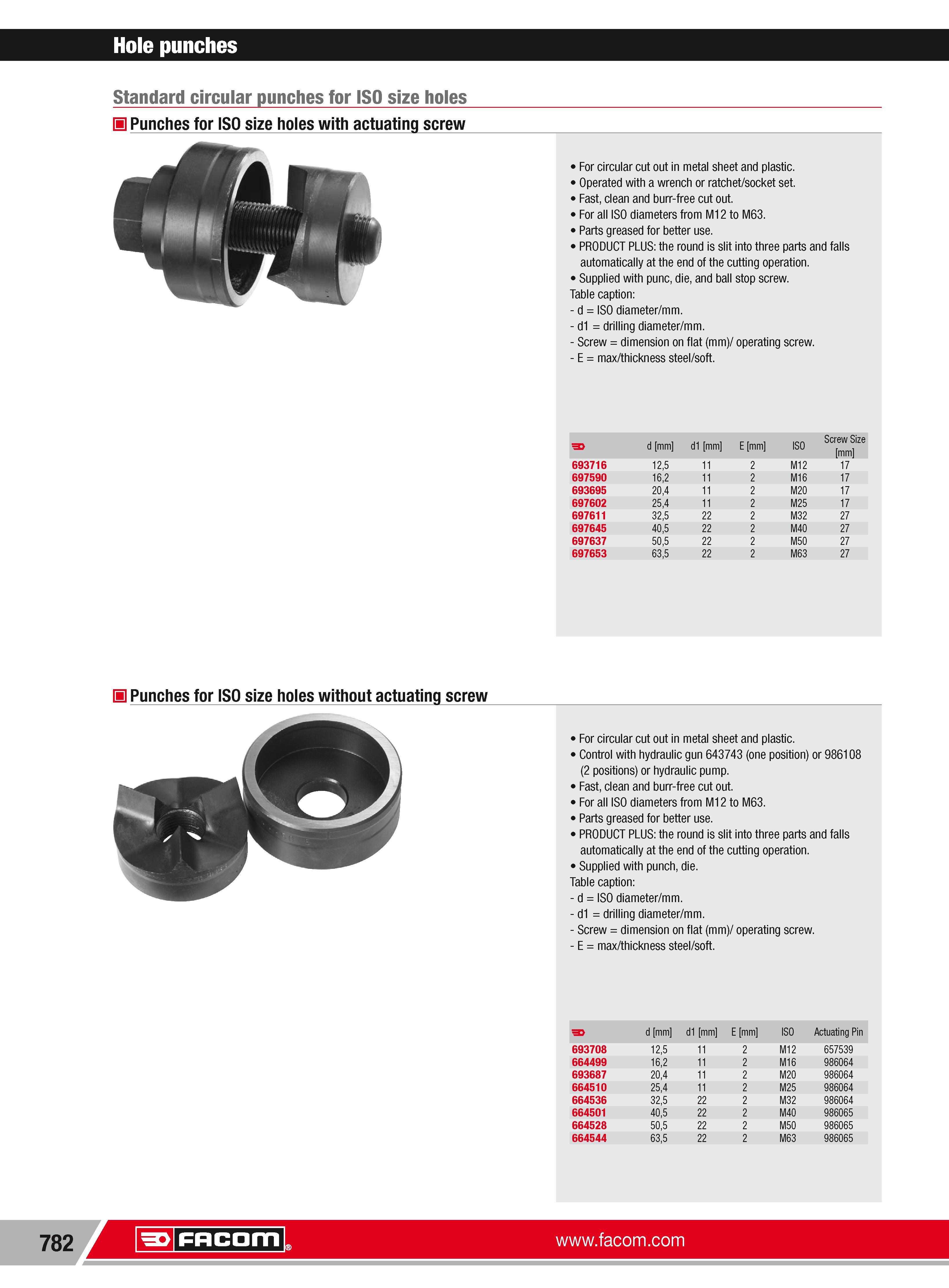

Hole punches Standard circular punches for ISO size holes H Punches for ISO size holes with actuating screw For circular cut out in metal sheet and plastic. Operated with a wrench or ratchet socket set. Fast clean and burr-free cut out. For all ISO diameters from M12 to M63. Parts greased for better use. PRODUCT PLUS the round is slit into three parts and falls automatically at the end of the cutting operation. Supplied with punc die and ball stop screw. Table caption d ISO diameter mm. d1 drilling diameter mm. Screw dimension on flat (mm) operating screw. E max thickness steel soft. 11 Punches for ISO size holes without actuating screw For circular cut out in metal sheet and plastic. Control with hydraulic gun 643743 (one position) or 986108 (2 positions) or hydraulic pump. Fast clean and burr-free cut out. For all ISO diameters from M12 to M63. Parts greased for better use. PRODUCT PLUS the round is slit into three parts and falls automatically at the end of the cutting operation. Supplied with punch die. Table caption d ISO diameter mm. d1 drilling diameter mm. Screw dimension on flat (mm) operating screw. E max thickness steel soft. 782 Facom
