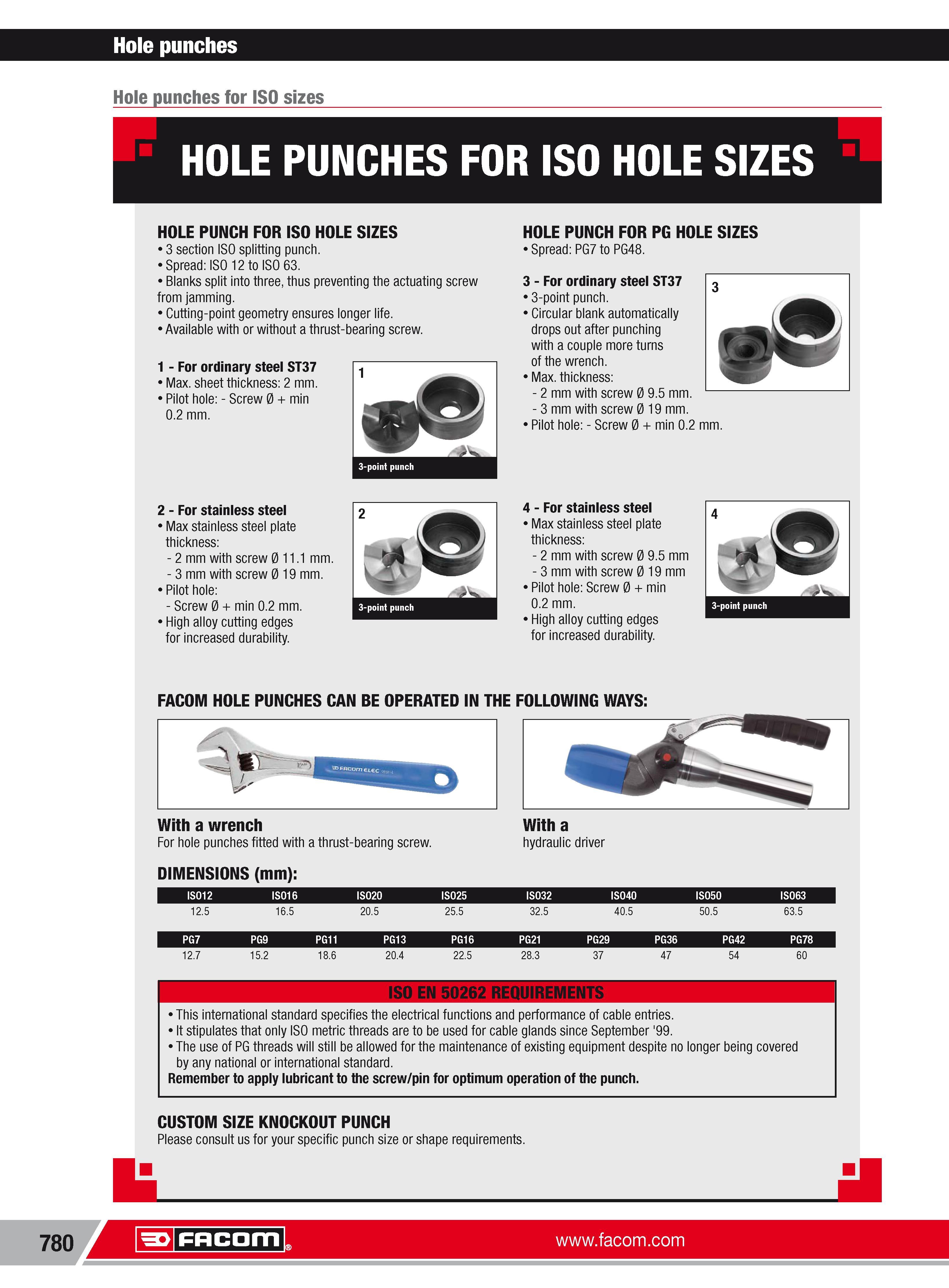

Hole punches Hole punches for ISO sizes HOLE PUNCHES FOR ISO HOLE SIZES HOLE PUNCH FOR ISO HOLE SIZES 3 section ISO splitting punch. Spread ISO 12to ISO 63. Blanks split into three thus preventing the actuating screw from jamming. Cutting-point geometry ensures longer life. Available with or without a thrust-bearing screw. 1 For ordinary steel ST37 Max. sheet thickness 2 mm. Pilot hole Screw 0 + min 0.2 mm. HOLE PUNCH FOR PG HOLE SIZES Spread PG7 to PG48. 3 For ordinary steel ST37 3-point punch. Circular blank automatically drops out after punching with a couple more turns of the wrench. Max. thickness 2 mm with screw 0 9.5 mm. 3 mm with screw 0 19 mm. Pilot hole Screw 0 + min 0.2 mm. 2 For stainless steel Max stainless steel plate thickness 2 mm with screw 011.1 mm. 3 mm with screw 0 19 mm. Pilot hole Screw 0 + min 0.2 mm. High alloy cutting edges for increased durability. 4 For stainless steel Max stainless steel plate thickness 2 mm with screw 0 9.5 mm 3 mm with screw 019mm Pilot hole Screw 0 + min 0.2 mm. High alloy cutting edges for increased durability. FACOM HOLE PUNCHES CAN BE OPERATED IN THE FOLLOWING WAYS 780 With a wrench For hole punches fitted with a thrust-bearing screw. DIMENSIONS (mm) With a hydraulic driver ISO12 ISO16 ISO20 ISO25 ISO32 ISQ40 ISQ50 ISQ63 12.5 16.5 20.5 25.5 32.5 40.5 50.5 63.5 PG7 PG9 PG11 PG13 PG16 PG21 PG29 PG36 PG42 PG78 12.7 15.2 18.6 20.4 22.5 28.3 37 47 54 60 ISO EN 50262 REQUIREMENTS This international standard specifies the electrical functions and performance of cable entries. It stipulates that only ISO metric threads are to be used for cable glands since September '99. The use of PG threads will still be allowed for the maintenance of existing equipment despite no longer being covered by any national or international standard. Remember to apply lubricant to the screw pin for optimum operation of the punch. CUSTOM SIZE KNOCKOUT PUNCH Please consult us for your specific punch size or shape requirements. Facom
