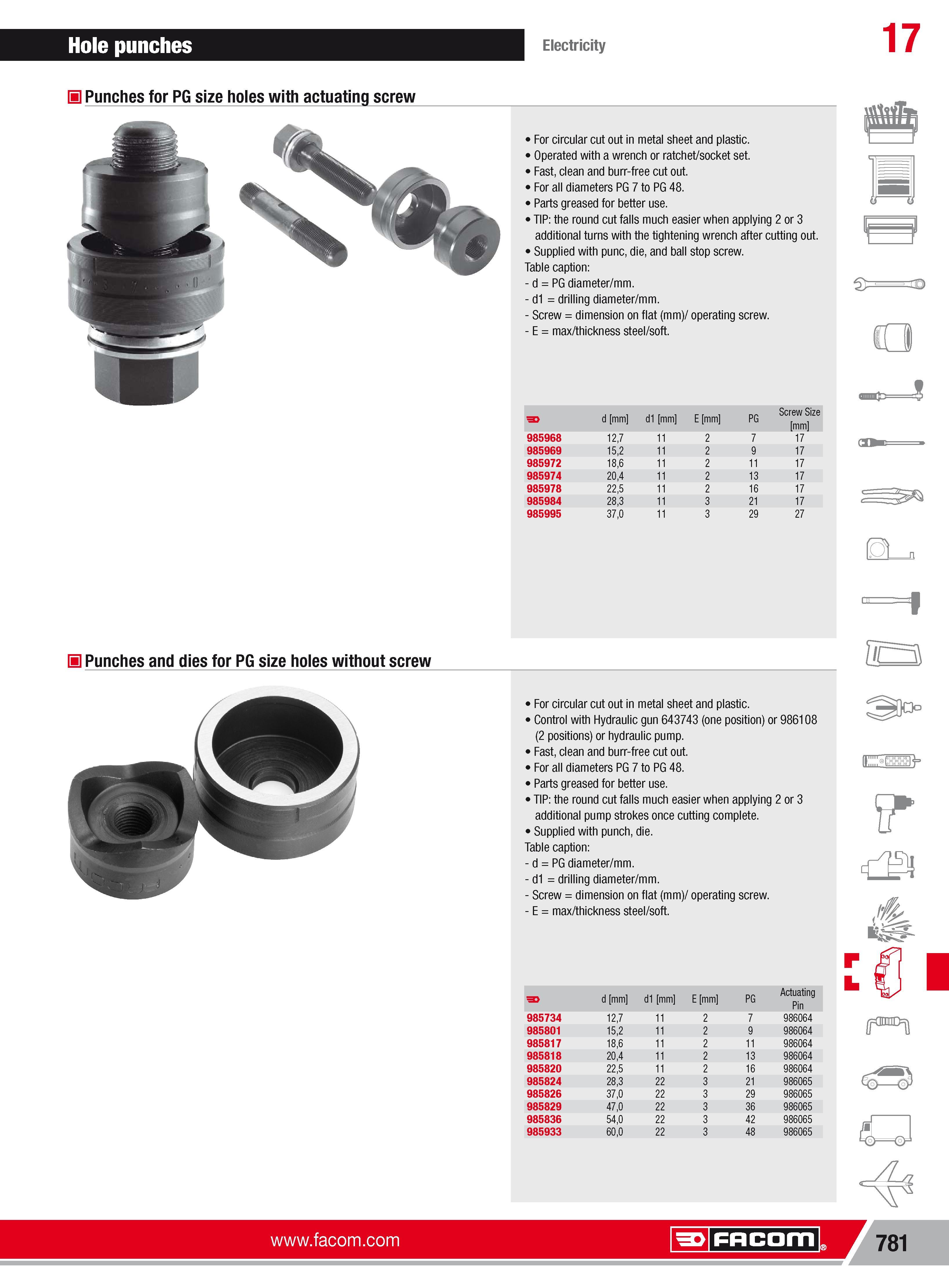

Hole punches Electricity 17 H Punches for PG size holes with actuating screw For circular cut out in metal sheet and plastic. Operated with a wrench or ratchet socket set. Fast clean and burr-free cut out. For all diameters PG 7 to PG 48. Parts greased for better use. TIP the round cut falls much easier when applying 2or3 additional turns with the tightening wrench after cutting out. Supplied with punc die and ball stop screw. Table caption d PG diameter mm. d1 drilling diameter mm. Screw dimension on flat (mm) operating screw. E max thickness steel soft. 4 d mm d1 mm E mm PG Screw Size mm 985968 127 11 2 7 17 985969 152 11 2 9 17 985972 186 11 2 11 17 985974 204 11 2 13 17 985978 225 11 2 16 17 985984 283 11 3 21 17 985995 370 11 3 29 27 cr- -Hr. H Punches and dies for PG size holes without screw For circular cut out in metal sheet and plastic. Control with Hydraulic gun 643743 (one position) or 986108 (2 positions) or hydraulic pump. Fast clean and burr-free cut out. For all diameters PG 7 to PG 48. Parts greased for better use. TIP the round cut falls much easier when applying 2or3 additional pump strokes once cutting complete. Supplied with punch die. Table caption d PG diameter mm. d1 drilling diameter mm. Screw dimension on flat (mm) operating screw. E max thickness steel soft. d mm d1 mm E mm PG Actuating Pin 985734 127 11 2 7 986064 985801 152 11 2 9 986064 985817 186 11 2 11 986064 985818 204 11 2 13 986064 985820 225 11 2 16 986064 985824 283 22 3 21 986065 985826 370 22 3 29 986065 985829 470 22 3 36 986065 985836 540 22 3 42 986065 985933 600 22 3 48 986065 Facom 781 Facom
