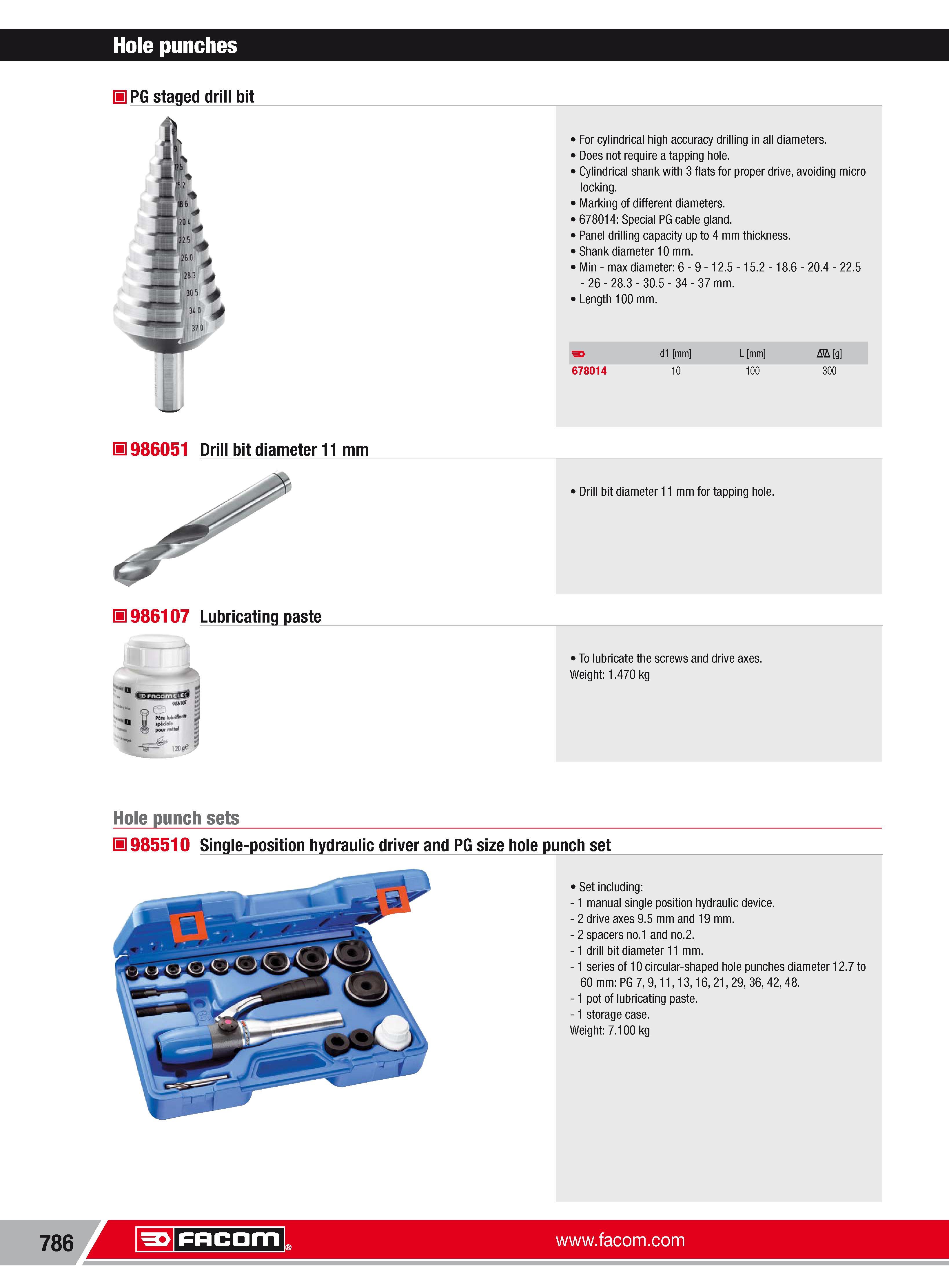

812 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.786

Каталог FACOM 2013 Инструмент Оборудование Стр. 786 0812 ENG Lab2u

Hole punches H PG staged drill bit For cylindrical high accuracy drilling in all diameters. Does not require a tapping hole. Cylindrical shank with 3 flats for proper drive avoiding micro locking. Marking of different diameters. 678014 Special PG cable gland. Panel drilling capacity up to 4 mm thickness. ShankdiameterlOmm. Min max diameter 6-9- 12.5 15.2 18.6- 20.4 22.5 26 28.3 30.5 34- 37 mm. Length 100 mm. 678014 dl mm 10 L mm 100 Nh g 300 ID 986051 Drill bit diameter 11 mm H 986107 Lubricating paste Drill bit diameter 11 mm for tapping hole. To lubricate the screws and drive axes. Weight 1.470 kg Hole punch sets H 985510 Single-position hydraulic driver and PG size hole punch set Set including 1 manual single position hydraulic device. 2 drive axes 9.5 mm and 19 mm. 2 spacers no.1 and no.2. 1 drill bit diameter 11 mm. -1 series of 10 circular-shaped hole punches diameter 12.7 to 60 mm PG 79111316 21 29 36 4248. 1 pot of lubricating paste. 1 storage case. Weight 7.100 kg 786 Facom
