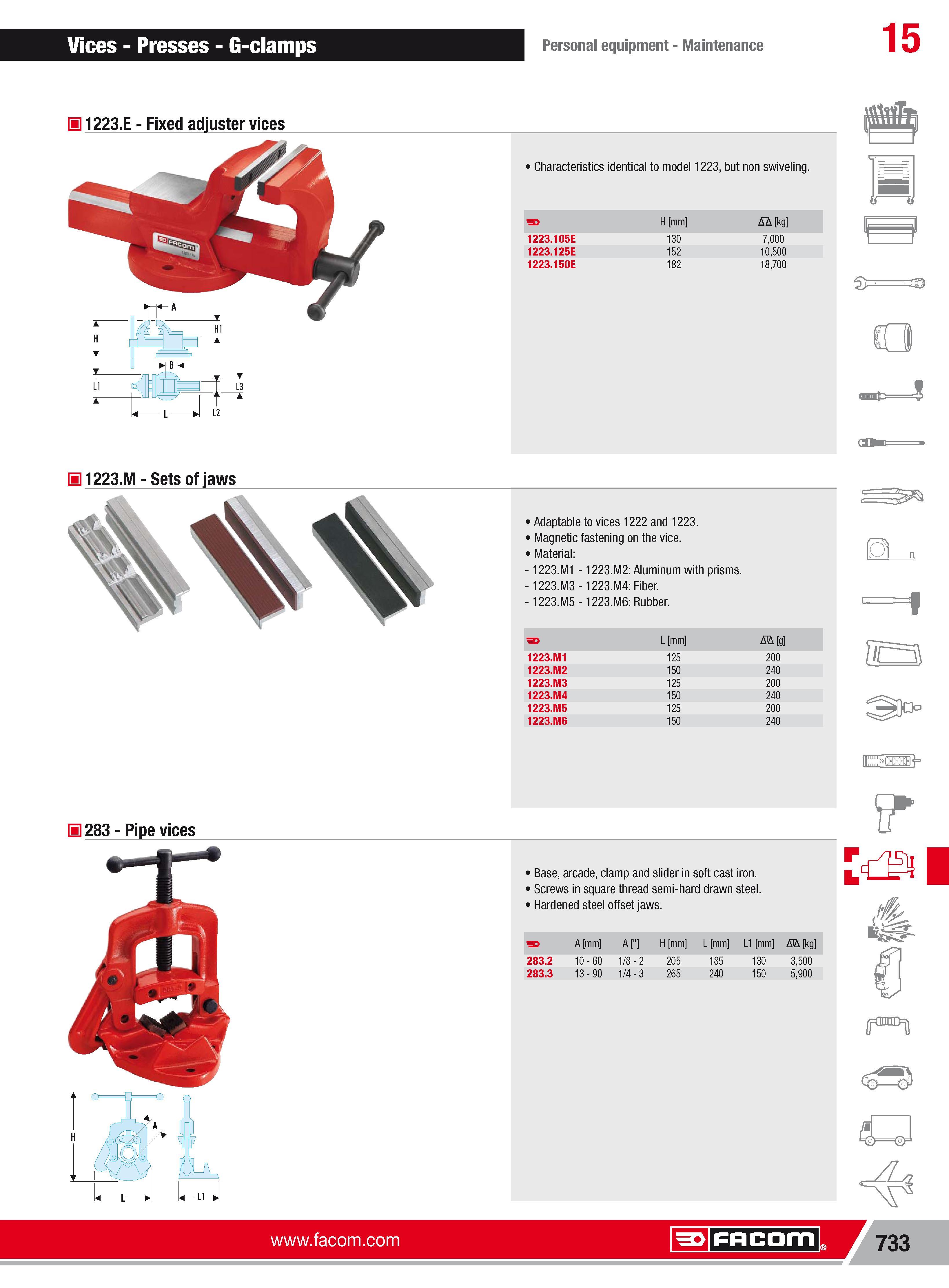

Vices Presses G-clamps Personal equipment Maintenance 15 1223.E Fixed adjuster vices Characteristics identical to model 1223 but non swiveling. 1223.150E 182 18700 4 c H 1223.M Sets of jaws Adaptable to vices 1222 and 1223. Magnetic fastening on the vice. Material 1223.M1 1223.M2 Aluminum with prisms. 1223.M3 1223.M4 Fiber. 1223.M5 1223.M6 Rubber. 283 Pipe vices Facom Base arcade clamp and slider in soft cast iron. Screws in square thread semi-hard drawn steel. Hardened steel offsetjaws. A mm A " H mm L mm L1 mm Nh kg 283.2 10-60 1 8-2 205 185 130 3500 283.3 13-90 1 4-3 265 240 150 5900 Facom 733
