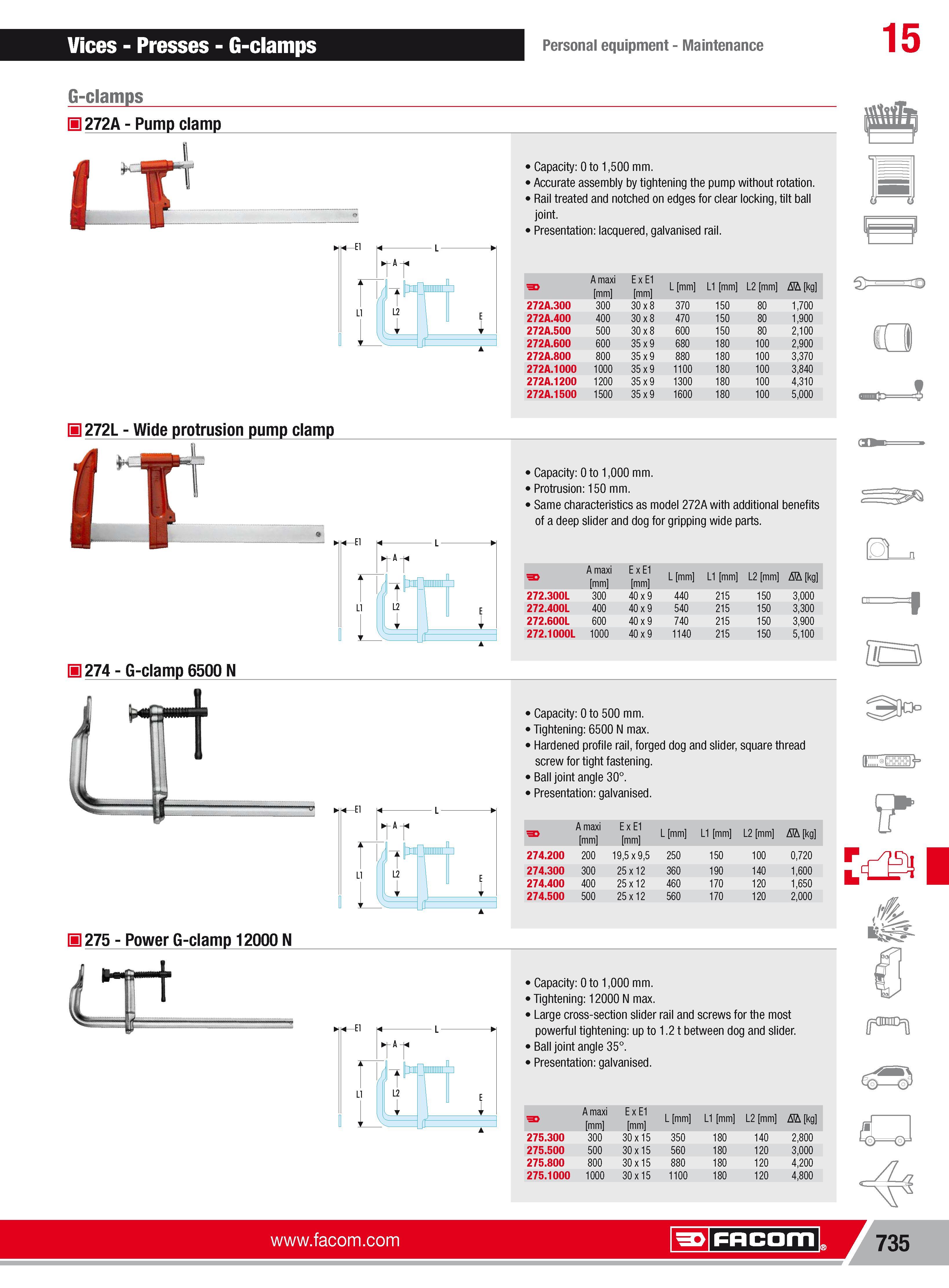

Vices Presses G-clamps Personal equipment Maintenance 15 G-clamps 272A Pump clamp Capacity 0to 1500 mm. Accurate assembly by tightening the pump without rotation. Rail treated and notched on edges for clear locking tilt ball joint. Presentation lacquered galvanised rail. A maxi mm ExE1 mm L mm L1 mm L2 mm 272A.300 300 30x8 370 150 80 1700 272A.400 400 30x8 470 150 80 1900 272A.500 500 30x8 600 150 80 2100 272A.600 600 35x9 680 180 100 2900 272A.800 800 35x9 880 180 100 3370 272A.1000 1000 35x9 1100 180 100 3840 272A.1200 1200 35x9 1300 180 100 4310 272A.1500 1500 35x9 1600 180 100 5000 272L Wide protrusion pump clamp Capacity 0to 1000 mm. Protrusion 150 mm. Same characteristics as model 272Awith additional benefits of a deep slider and dog for gripping wide parts. A maxi mm ExE1 mm L mm L1 mm L2 mm AA kg 272.300L 300 40x9 440 215 150 3000 272.400L 400 40x9 540 215 150 3300 272.600L 600 40x9 740 215 150 3900 272.1000L 1000 40x9 1140 215 150 5100 H 274 G-clamp 6500 N Capacity Oto 500 mm. Tightening 6500 N max. Hardened profile rail forged dog and slider square thread screw for tight fastening. Ball joint angle 30. Presentation galvanised. hA- L E 1 A maxi mm ExE1 mm L mm L1 mm L2 mm AA kg 274.200 200 195x95 250 150 100 0720 274.300 300 25x12 360 190 140 1600 274.400 400 25x12 460 170 120 1650 274.500 500 25x12 560 170 120 2000 II275 Power G-clamp 12000 N rr j t Capacity 0to 1000 mm. Tightening 12000 N max. Large cross-section slider rail and screws for the most powerful tightening up to1.2t between dog and slider. Ball joint angle 35. Presentation galvanised. A maxi mm ExE1 mm L mm L1 mm L2 mm AA kg 275.300 300 30x15 350 180 140 2800 275.500 500 30x15 560 180 120 3000 275.800 800 30x15 880 180 120 4200 275.1000 1000 30x15 1100 180 120 4800 s Facom 735 Facom
