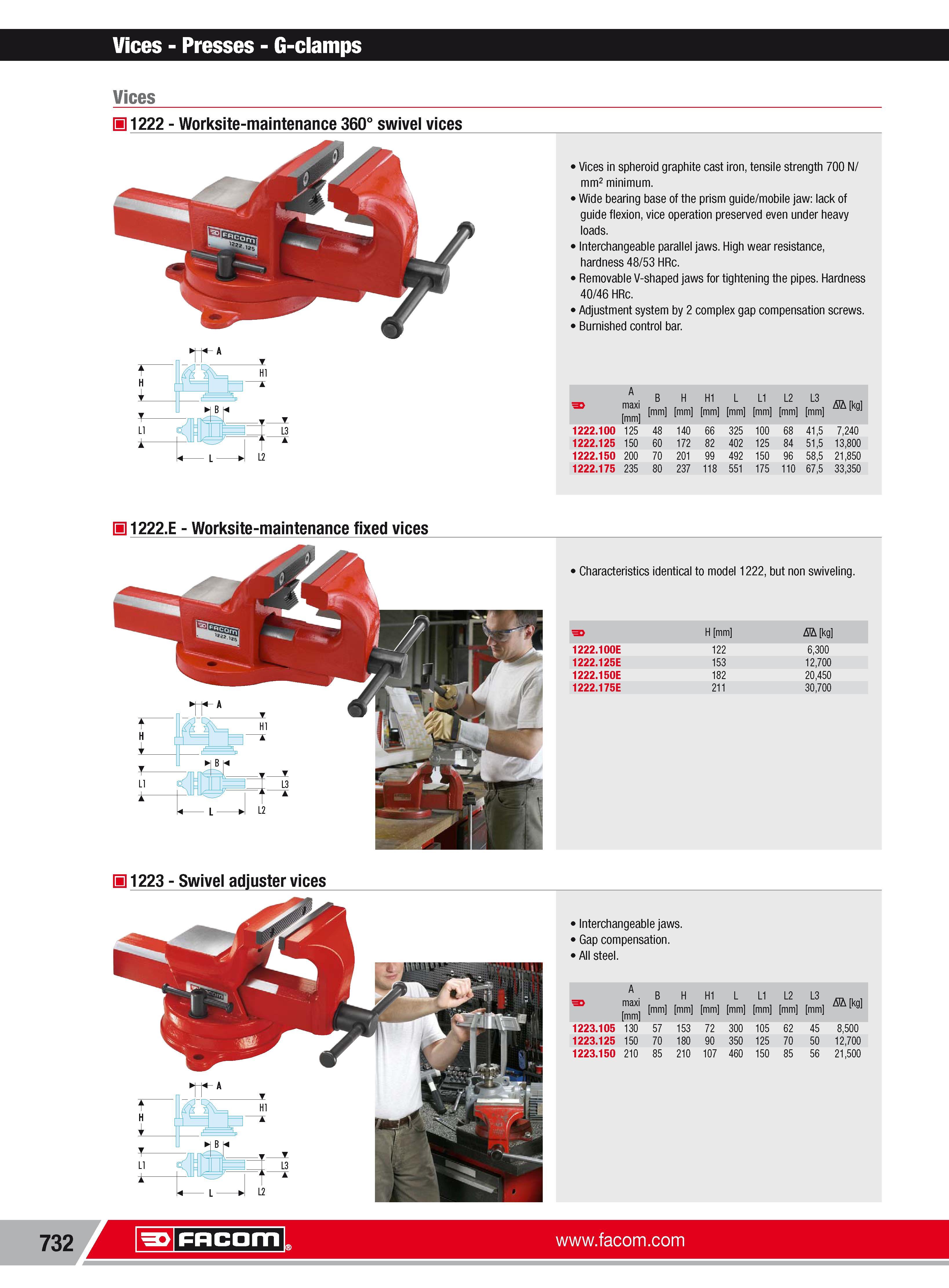

758 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.732

Каталог FACOM 2013 Инструмент Оборудование Стр. 732 0758 ENG Lab2u

Vices Presses G-clamps Vices 1222 Worksite-maintenance 360 swivel vices Vices in spheroid graphite cast iron tensile strength 700 N mm2 minimum. Wide bearing base of the prism guide mobile jaw lack of guide flexion vice operation preserved even under heavy loads. Interchangeable parallel jaws. High wear resistance hardness 48 53 HRc. Removable V-shaped jaws for tightening the pipes. Hardness 40 46 HRc. Adjustment system by 2 complex gap compensation screws. Burnished control bar. A maxi mm B mm H mm H1 mm L mm L1 mm L2 mm L3 mm Nh kg 1222.100 125 48 140 66 325 100 68 415 7240 1222.125 150 60 172 82 402 125 84 515 13800 1222.150 200 70 201 99 492 150 96 585 21850 1222.175 CO Cn 80 237 118 551 175 110 675 33350 1222.E Worksite-maintenance fixed vices Characteristics identical to model 1222 but non swiveling. H mm Nh kg 1222.100E 122 6300 1222.125E 153 12700 1222.150E 182 20450 1222.175E 211 30700 H1223 Swivel adjuster vices Interchangeable jaws. Gap compensation. All steel. A maxi mm 1223.105 130 57 153 72 300 105 62 45 8500 1223.125 150 70 180 90 350 125 70 50 12700 1223.150 210 85 210 107 460 150 85 56 21500 B H H1 L L1 L2 L3 mm mm mm mm mm mm mm Nh kg 732 Facom
