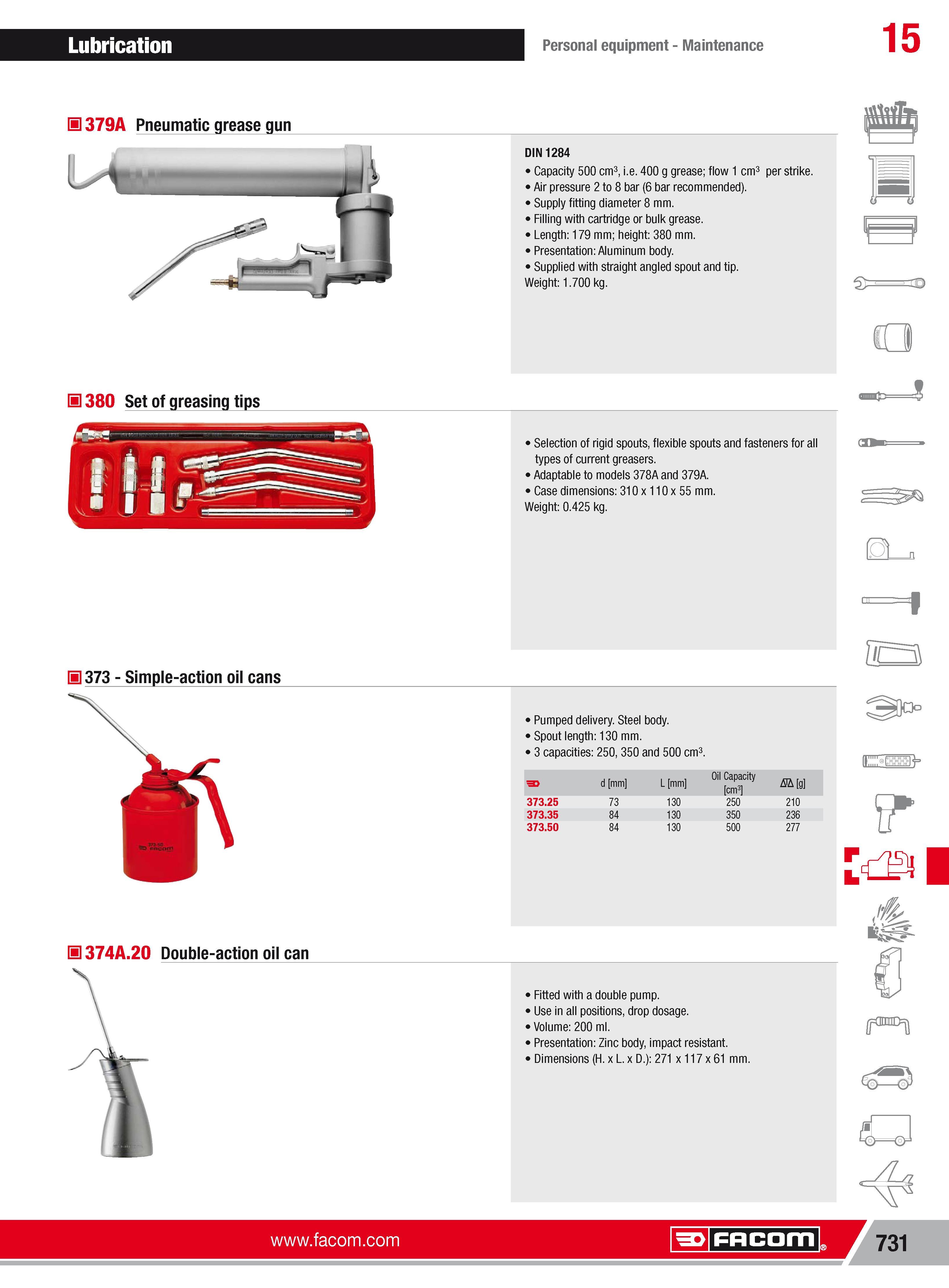

757 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.731

Каталог FACOM 2013 Инструмент Оборудование Стр. 731 0757 ENG Lab2u

Lubrication Personal equipment Maintenance 15 H 379A Pneumatic grease gun DIN 1284 Capacity 500 cm3 i.e. 400 g grease; flow 1 cm3 per strike. Air pressure 2to8 bar (6 bar recommended). Supply fitting diameter 8 mm. Filling with cartridge or bulk grease. Length 179 mm; height 380 mm. Presentation Aluminum body. Supplied with straight angled spout and tip. Weight 1.700 kg. 4 H380 Set of greasing tips c Selection of rigid spouts flexible spouts and fasteners for all types of current greasers. Adaptable to models 378A and 379A. Case dimensions 310x110x55 mm. Weight 0.425 kg. 373 Simple-action oil cans H374A.20 Double-action oil can Pumped delivery. Steel body. Spout length 130 mm. 3 capacities 250 350 and 500 cm3. d mm L mm Oil Capacity cm3 Nh g 373.25 73 130 250 210 373.35 84 130 350 236 373.50 84 130 500 277 Fitted with a double pump. Use in all positions drop dosage. Volume 200 ml. Presentation Zinc body impact resistant. Dimensions (H. xL. x D.) 271 x117x61 mm. Facom 731
