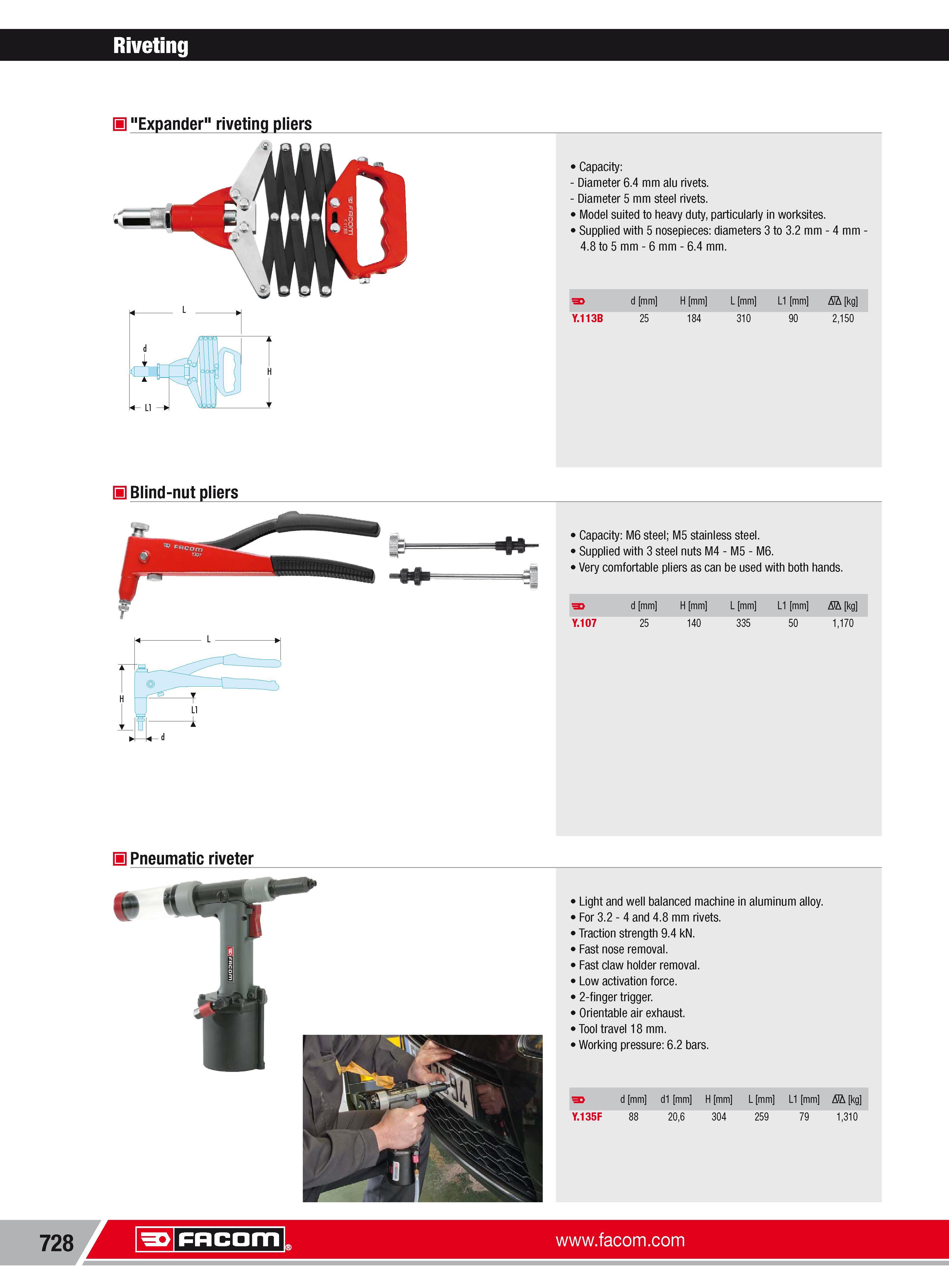

754 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.728

Каталог FACOM 2013 Инструмент Оборудование Стр. 728 0754 ENG Lab2u

Riveting H "Expander" riveting pliers Capacity Diameter 6.4 mm alu rivets. Diameter 5 mm steel rivets. Model suited to heavy duty particularly in worksites. Supplied with 5 nosepieces diameters 3 to 3.2 mm-4mm- 4.8 to5mm-6mm- 6.4 mm. d mm H mm L mm L1 mm Nh kg Y.113B 25 184 310 90 2150 Blind-nut pliers jr f p com no Capacity M6 steel; M5 stainless steel. Supplied with 3 steel nuts M4-M5- M6. Very comfortable pliers as can be used with both hands. Y.107 d mm H mm L mm L1 mm Nh kg 25 140 335 50 1170 H Pneumatic riveter 728 Light and well balanced machine in aluminum alloy. For 3.2 4 and 4.8 mm rivets. Traction strength 9.4 kN. Fast nose removal. Fast claw holder removal. Low activation force. 2-finger trigger. Orientable air exhaust. Tool travel 18 mm. Working pressure 6.2 bars. d mm d1 mm H mm L mm L1 mm AIA kg Y.135F 88 206 304 259 79 1310 Facom
