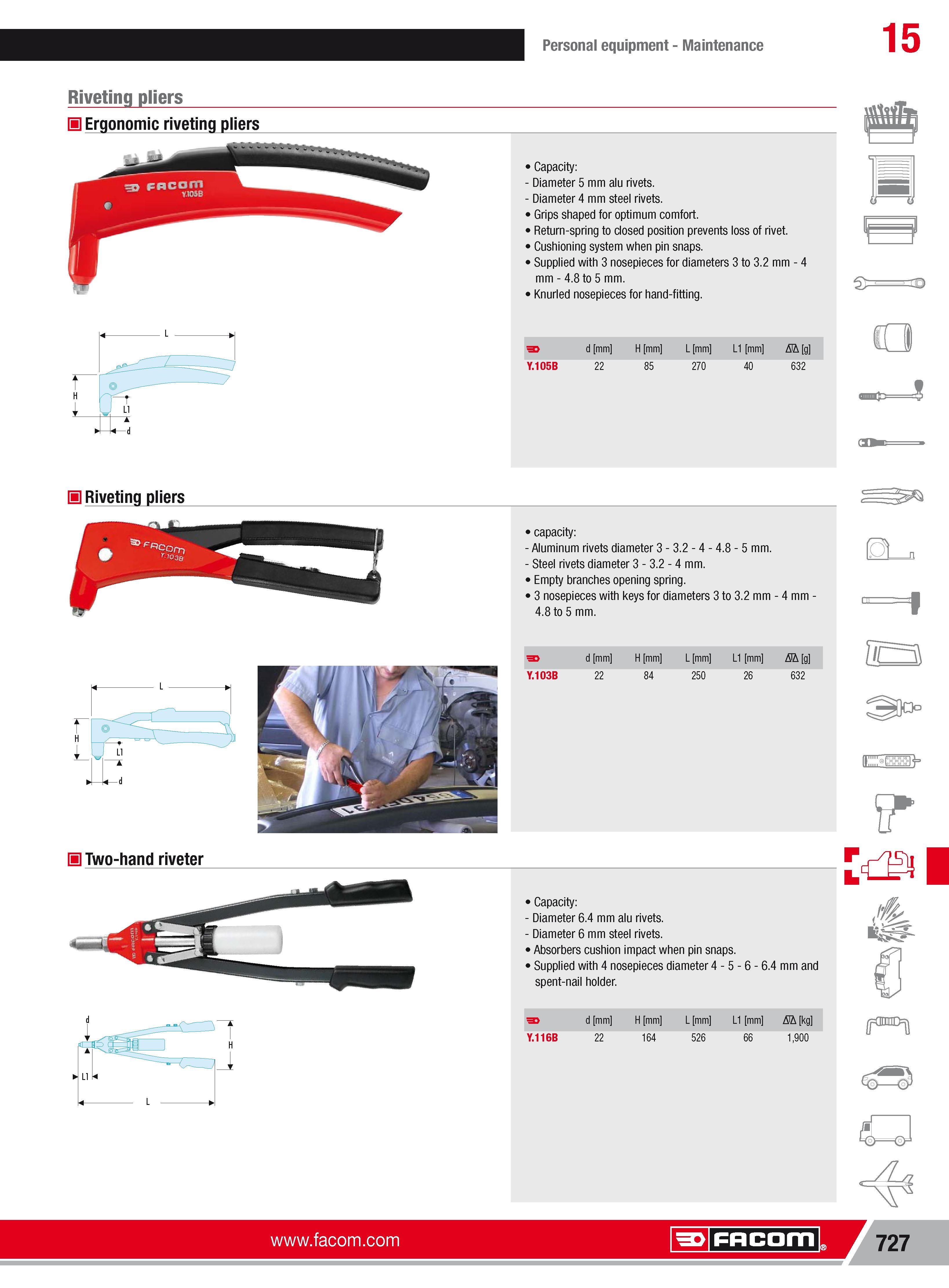

Personal equipment Maintenance 15 Riveting pliers H Ergonomic riveting pliers H Riveting pliers H Two-hand riveter capacity Aluminum rivets diameter 3-3.2-4-4.8-5 mm. Steel rivets diameter 3-3.2-4 mm. Empty branches opening spring. 3 nosepieces with keys for diameters 3 to 3.2 mm-4mm 4.8 to 5 mm. d mm H mm L mm L1 mm Nh g Y.103B 22 84 250 26 632 Capacity Diameter 6.4 mm alu rivets. Diameter 6 mm steel rivets. Absorbers cushion impact when pin snaps. Supplied with 4 nosepieces diameter 4-5-6-6.4mm and spent-nail holder. Capacity Diameter 5 mm alu rivets. Diameter 4 mm steel rivets. Grips shaped for optimum comfort. Return-spring to closed position prevents loss of rivet. Cushioning system when pin snaps. Supplied with 3 nosepieces for diameters 3 to 3.2 mm 4 mm 4.8 to 5 mm. Knurled nosepieces for hand-fitting. d mm H mm L mm L1 mm Nh g Y.105B 22 85 270 40 632 s H 6Ss J Y.116B d mm 22 H mm 164 L mm 526 L1 mm Nh kg 1900 Facom 727
