750 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.724

Каталог FACOM 2013 Инструмент Оборудование Стр. 724 0750 ENG Lab2u

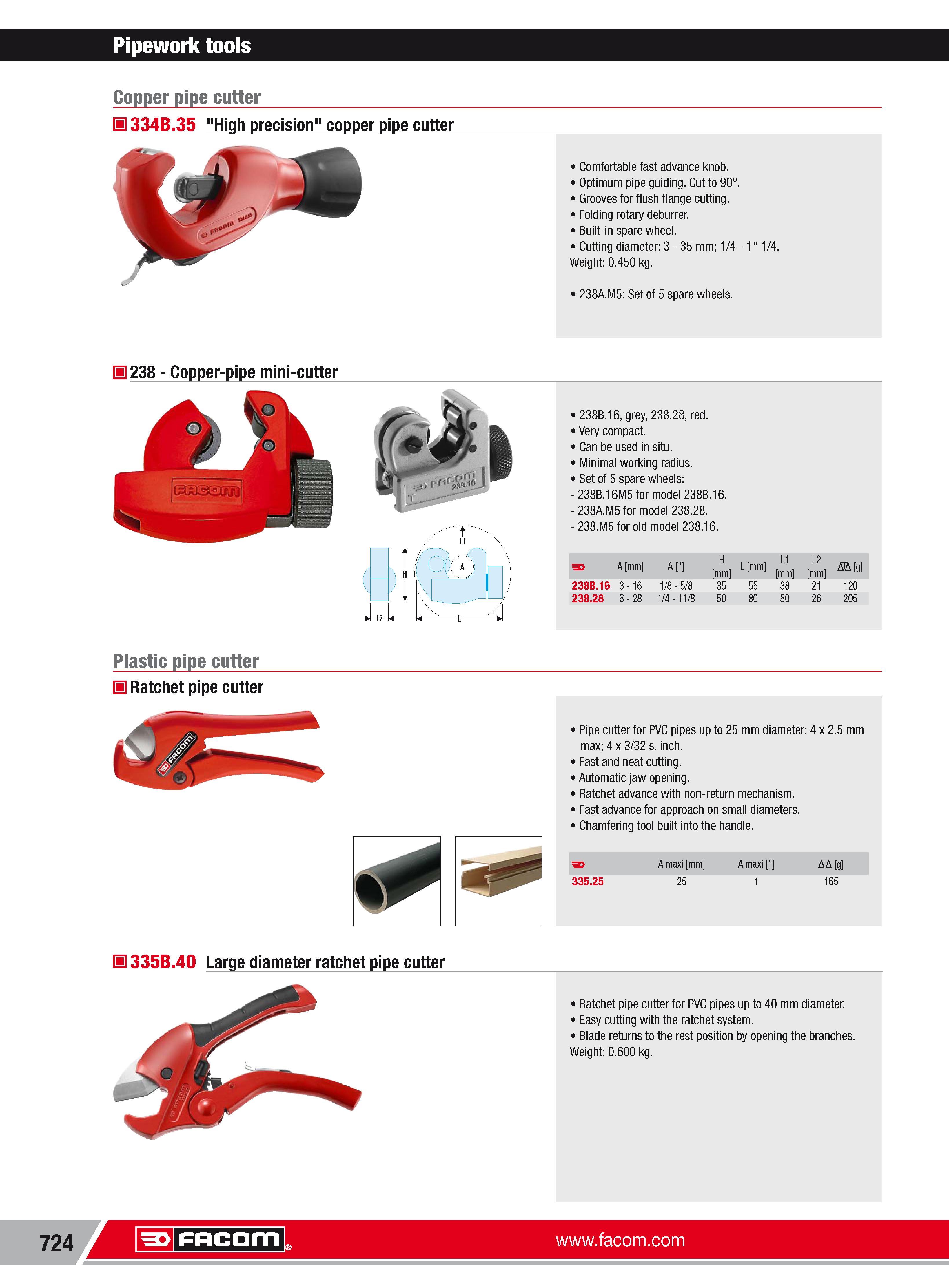

Pipework tools Copper pipe cutter H 334B.35 "High precision" copper pipe cutter Comfortable fast advance knob. Optimum pipe guiding. Cut to 90. Grooves for flush flange cutting. Folding rotary deburrer. Built-in spare wheel. Cutting diameter 3 35 mm; 1 4-1" 1 4. Weight 0.450 kg. 238A.M5 Set of 5 spare wheels. 238 Copper-pipe mini-cutter 238B.16 grey 238.28 red. Very compact. Can be used in situ. Minimal working radius. Set of 5 spare wheels 238B.16M5 for model 238B.16. 238A.M5 for model 238.28. 238.M5 for old model 238. 16. 3 A mm A " H mm L mm L1 mm L2 mm Nh g 238B.16 3-16 1 8 5 8 35 55 38 21 120 238.28 6-28 1 4-11 8 50 80 50 26 205 Plastic pipe cutter H Ratchet pipe cutter Pipe cutter for PVC pipes up to 25 mm diameter 4 x 2.5 mm max; 4 x 3 32 s. inch. Fast and neat cutting. Automaticjaw opening. Ratchet advance with non-return mechanism. Fast advance for approach on small diameters. Chamfering tool built into the handle. A maxi mm A maxi " AlA g 335.25 25 1 165 H 335B.40 Large diameter ratchet pipe cutter Ratchet pipe cutter for PVC pipes up to 40 mm diameter. Easy cutting with the ratchet system. Blade returns to the rest position by opening the branches. Weight 0.600 kg. 724 Facom
