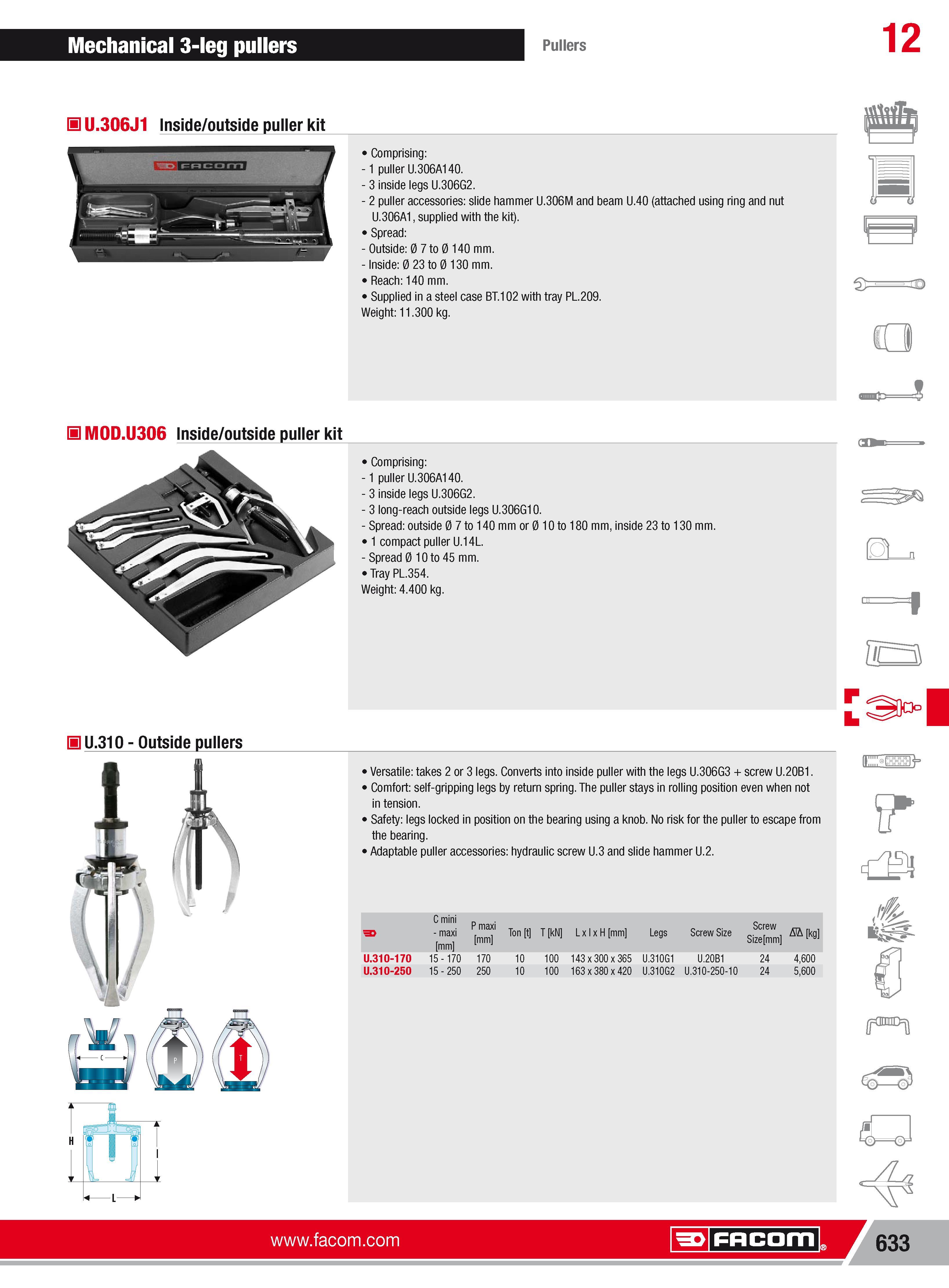

659 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.633

Каталог FACOM 2013 Инструмент Оборудование Стр. 633 0659 ENG Lab2u

Mechanical 3-leg pullers Pullers 12 H U.306J1 Inside outside puller kit Comprising -1 puller U.306A140. 3 inside legs U.306G2. 2 puller accessories slide hammer U.306M and beam U.40 (attached using ring and nut U.306A1 supplied with the kit). Spread Outside 0 7to014O mm. Inside 0 23to013O mm. Reach 140 mm. Supplied in a steel case BT.102 with tray PL.209. Weight 11.300 kg. 4 c H M0D.U306 Inside outside puller kit U.310 Outside pullers if iDfli Comprising -1 puller U.306A140. 3 inside legs U.306G2. 3 long-reach outside legs U.306G10. Spread outside 0 7to14Ommor01Oto18O mm inside 23 to 130 mm. 1 compact puller U.14L. Spread 01Oto45 mm. Tray PL.354. Weight 4.400 kg. Versatile takes 2or3 legs. Converts into inside puller with the legs U.306G3 + screw U.20B1. Comfort self-gripping legs by return spring. The puller stays in rolling position even when not in tension. Safety legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing. Adaptable puller accessories hydraulic screw U.3 and slide hammer U.2. C mini maxi mm P maxi mm Ton t T kN LxIxH mm Legs Screw Size Screw Size mm Nh kg U.310-170 15-170 170 10 100 143x300x365 U.310G1 U.20B1 24 4600 U.310-250 15 250 250 10 100 163x380x420 U.310G2 U.310-250-10 24 5600 Facom 633
