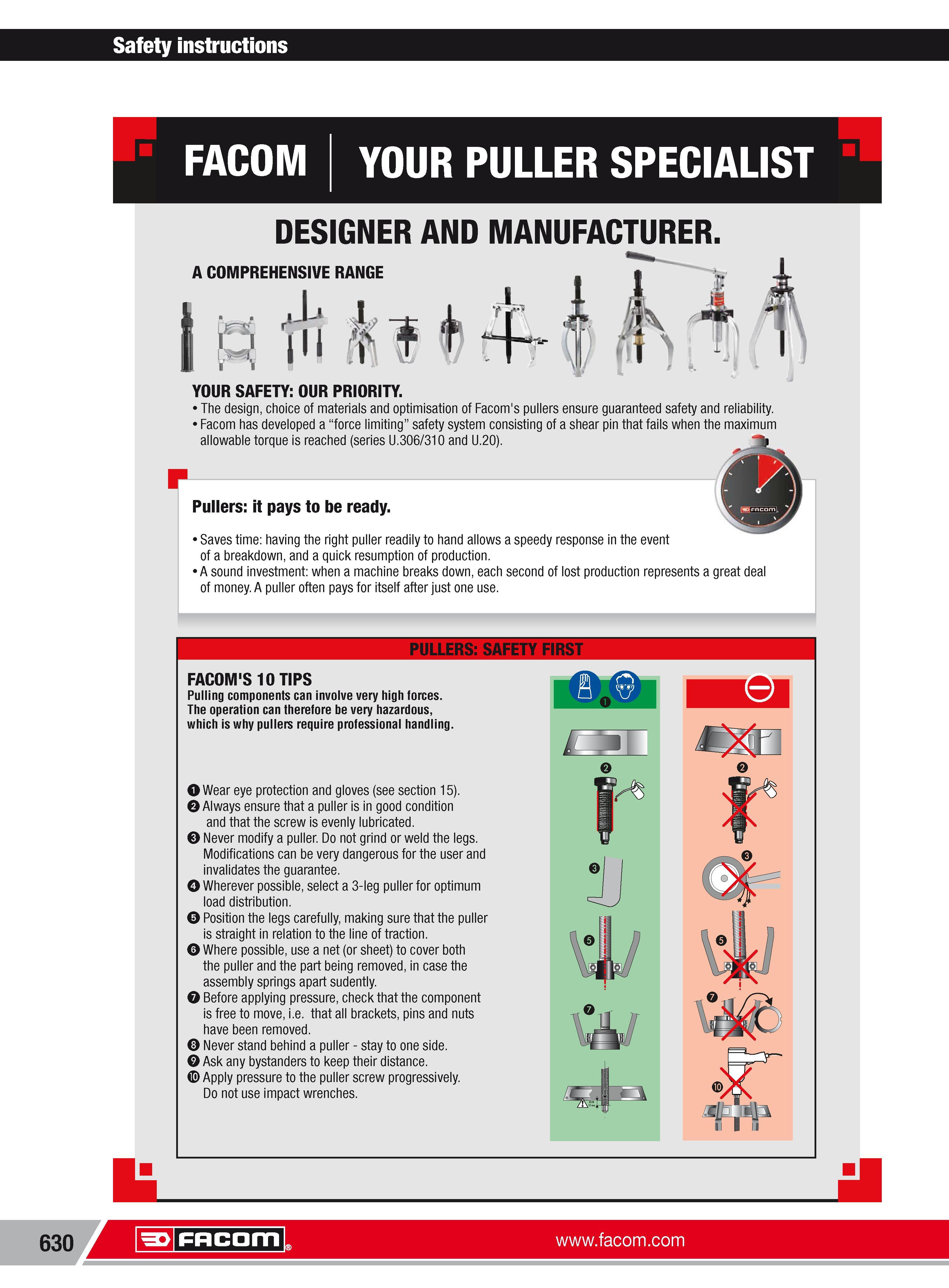

Safety instructions FACOM YOUR PULLER SPECIALIST DESIGNER AND MANUFACTURER. A COMPREHENSIVE RANGE 4 Hi YOUR SAFETY OUR PRIORITY. The design choice of materials and optimisation of Facom's pullers ensure guaranteed safety and reliability. Facom has developed a force limiting safety system consisting of a shear pin that fails when the maximum allowable torque is reached (series U.306 310 and U.20). Pullers it pays to be ready. Saves time having the right puller readily to hand allows a speedy response in the event of a breakdown and a quick resumption of production. A sound investment when a machine breaks down each second of lost production represents a great deal of money. A puller often pays for itself after just one use. PULLERS SAFETY FIRST FACOM'S 10 TIPS Pulling components can involve very high forces. The operation can therefore be very hazardous which is why pullers require professional handling. O Wear eye protection and gloves (see section 15). O Always ensure that a puller is in good condition and that the screw is evenly lubricated. 0 Never modify a puller. Do not grind or weld the legs. Modifications can be very dangerous for the user and invalidates the guarantee. O Wherever possible select a 3-leg puller for optimum load distribution. 0 Position the legs carefully making sure that the puller is straight in relation to the line of traction. 0 Where possible use a net (or sheet) to cover both the puller and the part being removed in case the assembly springs apart sudently. Before applying pressure check that the component is free to move i.e. that all brackets pins and nuts have been removed. Never stand behind a puller stay to one side. 0 Ask any bystanders to keep their distance. Apply pressure to the puller screw progressively. Do not use impact wrenches. O 0 O O 0 O m Facom
