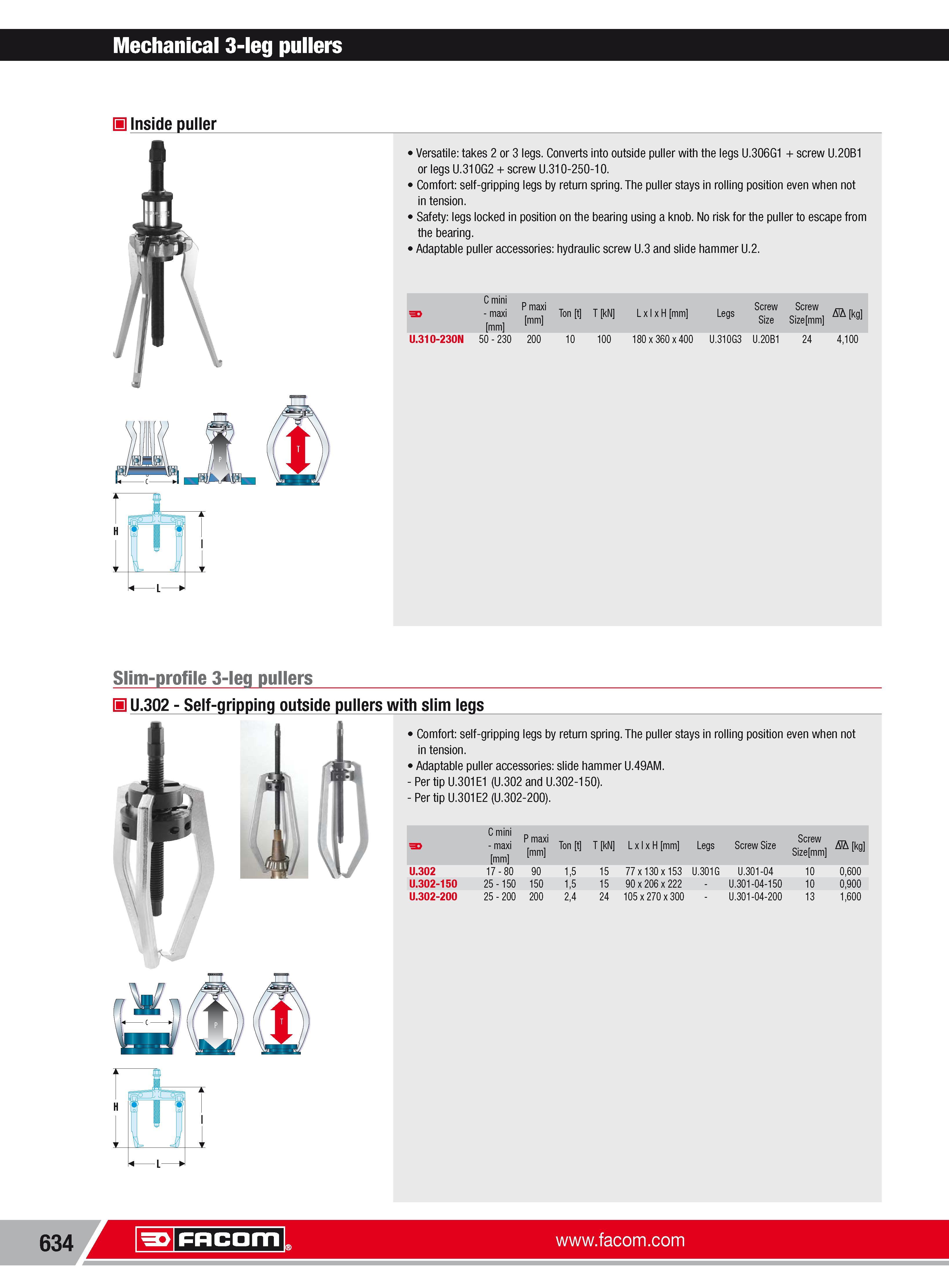

Mechanical 3-leg pullers Inside puller Versatile takes 2or3 legs. Converts into outside puller with the legs U.306G1 + screw U.20B1 or legs U.310G2 + screw U.310-250-10. Comfort self-gripping legs by return spring. The puller stays in rolling position even when not in tension. Safety legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing. Adaptable puller accessories hydraulic screw U.3 and slide hammer U.2. C mini D c c P maxi Tnm nr Screw Screw N mm Ton t T kN LxlxHImml Legs Size Size mm M kg U.310-230N 50 230 200 10 100 180x360x400 U.310G3 U.20B1 24 4100 Slim-profile 3-leg pullers H U.302 Self-gripping outside pullers with slim legs if r -y Comfort self-gripping legs by return spring. The puller stays in rolling position even when not in tension. Adaptable puller accessories slide hammer U.49AM. Per tip U.301E1 (U.302 and U.302-150). Per tip U.301E2 (U.302-200). C mini maxi mm P maxi mm Ton t T kN LxIxH mm Legs Screw Size Screw Size mm Nh kg U.302 17-80 90 15 15 77x130x 153 U.301G U.301-04 10 0600 U.302-150 25-150 150 15 15 90 x 206 x 222 U.301-04-150 10 0900 U.302-200 25 200 200 24 24 105x270x300 U.301-04-200 13 1600 634 Facom
