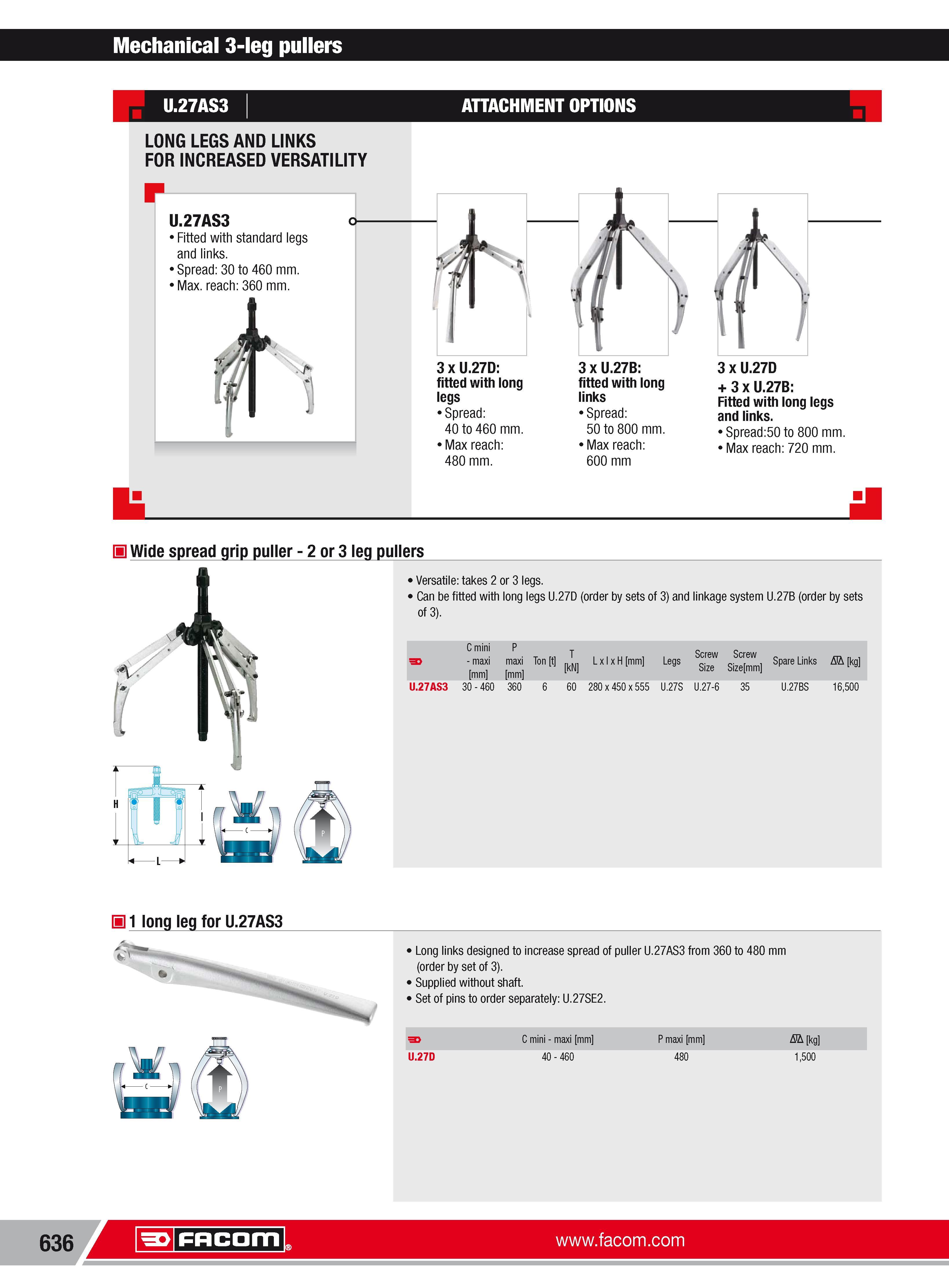

Mechanical 3-leg pullers U.27AS3 LONG LEGS AND LINKS FOR INCREASED VERSATILITY ATTACHMENT OPTIONS b U.27AS3 Fitted with standard legs and links. Spread 30 to 460 mm. Max. reach 360 mm. 3 x U.27D fitted with long legs Spread 40 to 460 mm. Max reach 480 mm. 3 x U.27B fitted with long links Spread 50 to 800 mm. Max reach 600 mm 3 x U.27D + 3 x U.27B Fitted with long legs and links. Spread:50 to 800 mm. Max reach 720 mm. H Wide spread grip puller 2 or 3 leg pullers Is Versatile takes 2or3 legs. Can be fitted with long legs U.27D (order by sets of 3) and linkage system U.27B (order by sets of 3). C mini P T S S 3 maxi maxi Ton t LxIxH mm Legs crew c- 1 Spare Links Nh kg mm mm kN Size Size mm " U.27AS3 30 460 360 6 60 280x450x555 U.27S U.27-6 35 U.27BS 16500 H1 long leg for U.27AS3 Long links designed to increase spread of puller U.27AS3 from 360 to 480 mm (order by set of 3). Supplied without shaft. Set of pins to order separately U.27SE2. U.27D C mini maxi mm 40 460 P maxi mm 480 Nh kg 1500 636 Facom
