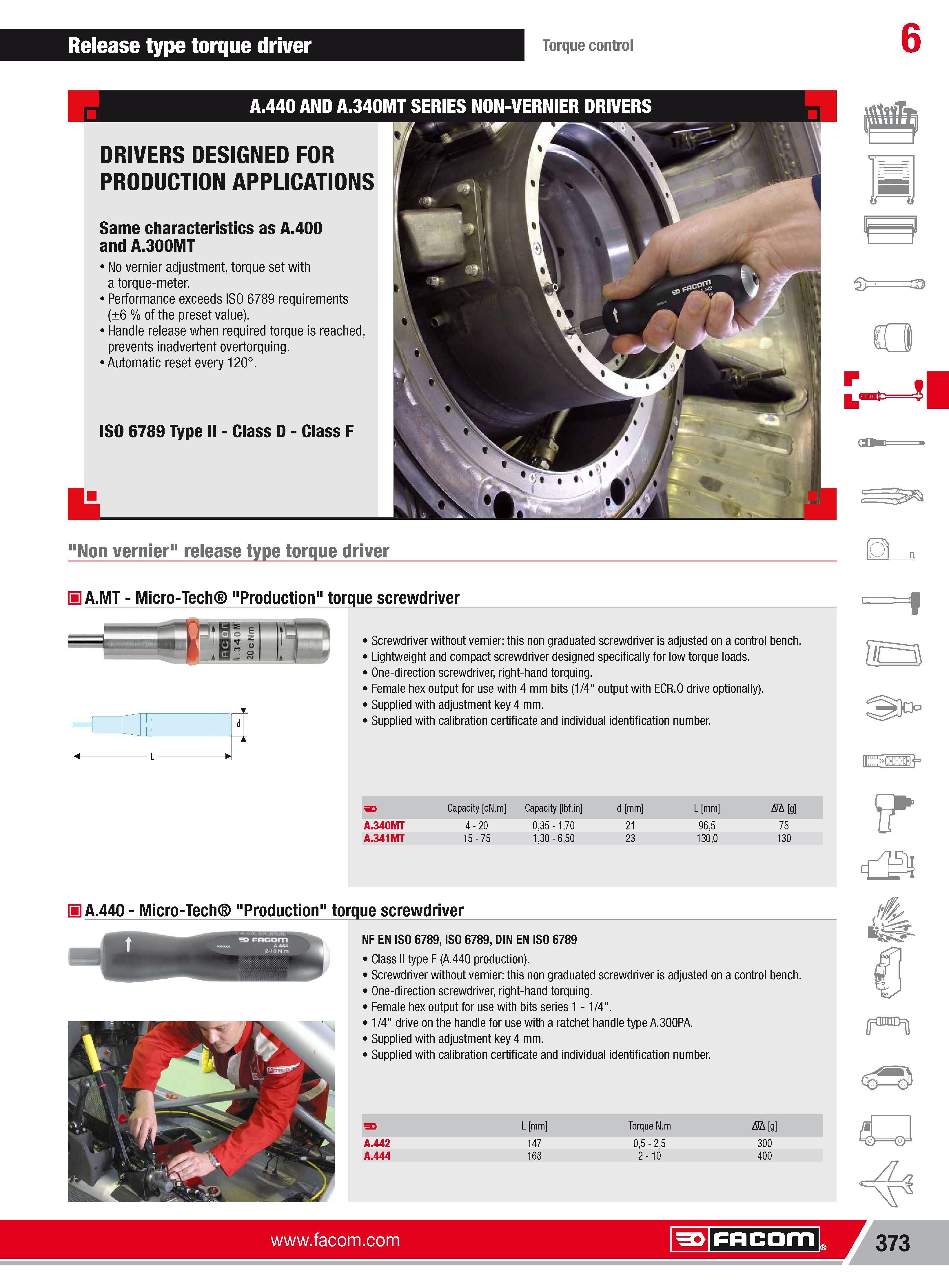

Release type torque driver Torque control 6 Same characteristics as A.400 and A.300MT No vernier adjustment torque set with a torque-meter. Performance exceeds ISO 6789 requirements (6 of the preset value). Handle release when required torque is reached prevents inadvertent overtorquing. Automatic reset every 120. ISO 6789 Type II Class D Class F 1 "Non vernier" release type torque driver A.MT Micro-Tech "Production" torque screwdriver Screwdriver without vernier this non graduated screwdriver is adjusted on a control bench. Lightweight and compact screwdriver designed specifically for low torque loads. One-direction screwdriver right-hand torquing. Female hex output for use with 4 mm bits (1/4" output with ECR.O drive optionally). Supplied with adjustment key 4 mm. Supplied with calibration certificate and individual identification number. Capacity cN.m Capacity lbf.in d mm L mm Nh g A.340MT 4 20 035 170 21 965 75 A.341MT 15 75 130 650 23 1300 130 A.440 Micro-Tech "Production" torque screwdriver NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Class II type F (A.440 production). Screwdriver without vernier this non graduated screwdriver is adjusted on a control bench. One-direction screwdriver right-hand torquing. Female hex output for use with bits series 1 -1/4". 1/4" drive on the handle for use with a ratchet handle type A.300PA. Supplied with adjustment key 4 mm. Supplied with calibration certificate and individual identification number. L mm Torque N.m Nh g A.442 147 05 25 300 A.444 168 2 10 400 Facom 373 Facom
