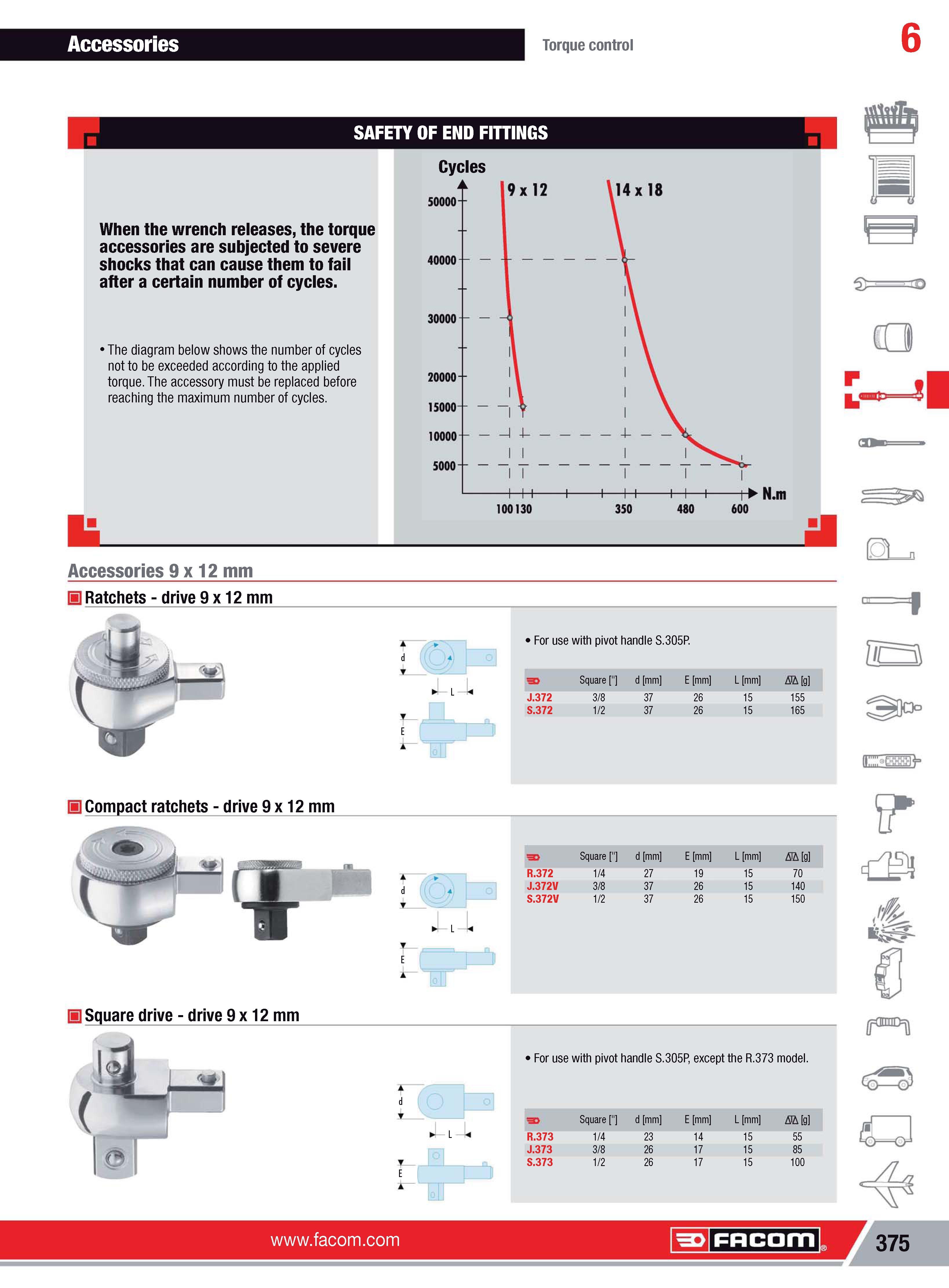

Accessories Torque control 6 i SAFETY OF END FITTINGS Cycles When the wrench releases the torque accessories are subjected to severe shocks that can cause them to fail after a certain number of cycles. The diagram below shows the number of cycles notto be exceeded according to the applied torque. The accessory must be replaced before reaching the maximum number of cycles. Accessories 9 x 12 mm m Ratchets drive 9 x 12 mm 1 d A k L i E r r- k For use with pivot handle S.305P. J.372 S.372 Square 3 8 1 2 d mm 37 37 E mm 26 26 L mm 15 15 & g 155 165 H Compact ratchets drive 9 x 12 mm 3J Square " d mm E mm L mm Mt R.372 1 4 27 19 15 70 J.372V 3 8 37 26 15 140 S.372V 1 2 37 26 15 150 L i E A H Square drive drive 9 x 12 mm For use with pivot handle S.305P except the R.373 model. Square " d mm E mm L mm A'A g R.373 1 4 23 14 15 55 J.373 3 8 26 17 15 85 S.373 1 2 26 17 15 100 Facom 3 P ill u u a Z O n t fdDDf 7 rnrn 375
