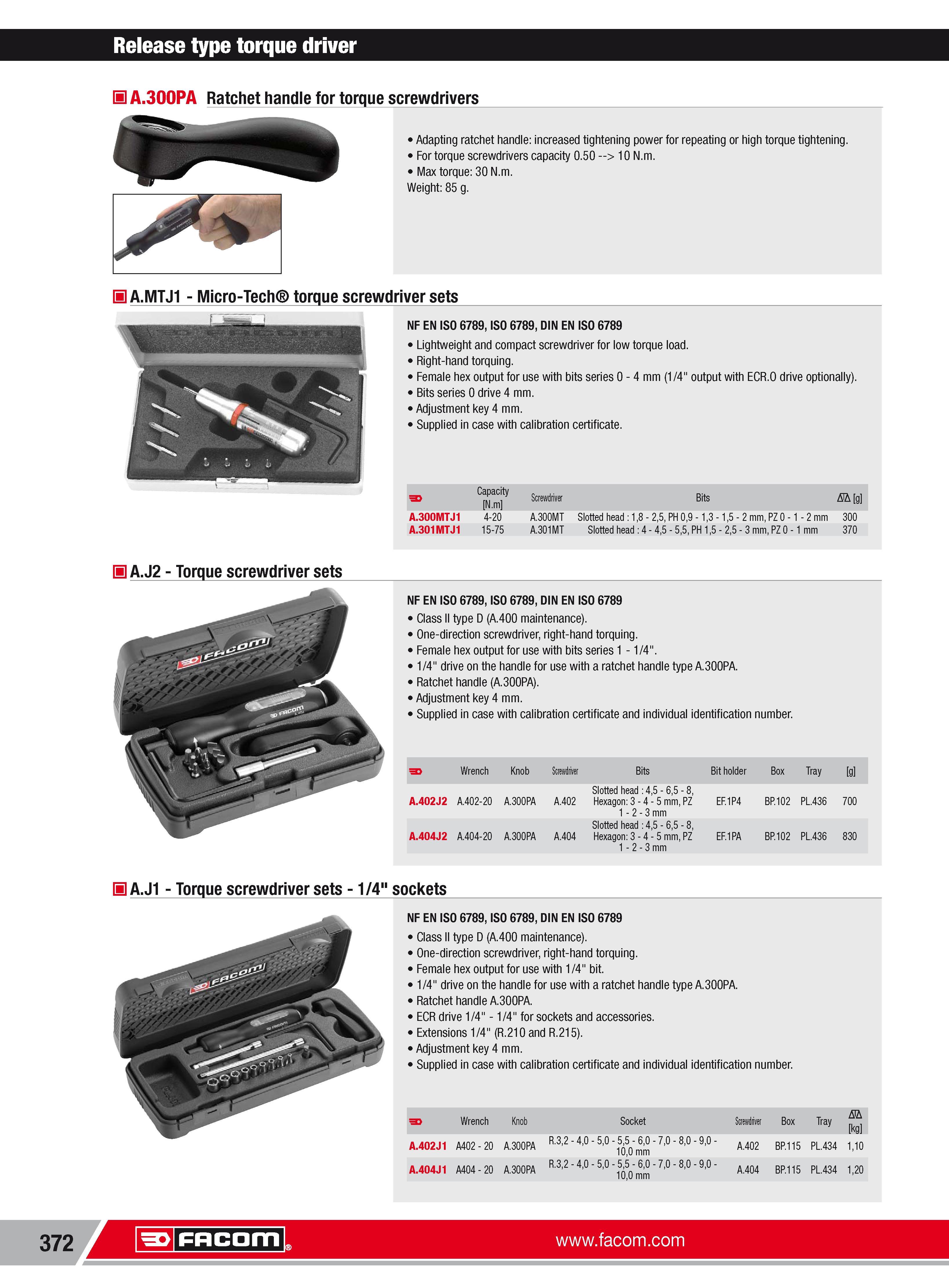

398 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.372

Каталог FACOM 2013 Инструмент Оборудование Стр. 372 0398 ENG Lab2u

Release type torque driver H A.300PA Ratchet handle for torque screwdrivers Adapting ratchet handle increased tightening power for repeating or high torque tightening. For torque screwdrivers capacity 0.50 10 N.m. Maxtorque 30N.m. Weight 85 g. A.MTJ1 Micro-Tech torque screwdriver sets NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Lightweight and compact screwdriver for low torque load. Right-hand torquing. Female hex output for use with bits series 0 Bits series 0 drive 4 mm. Adjustment key 4 mm. Supplied in case with calibration certificate. 4 mm (1/4" output with ECR.O drive optionally). 3 Capacity N.m Screwdriver Bits Nh g A.300MTJ1 4-20 A.300MT Slotted head 18- 25 PH09-13-15-2mm PZ0-1-2mm 300 A.301MTJ1 15-75 A.301MT Slotted head 4-45- 55 PH15- 25 3 mm PZ0-1mm 370 H A.J2 Torque screwdriver sets NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Class II type D (A.400 maintenance). One-direction screwdriver right-hand torquing. Female hex output for use with bits series 1 -1/4". 1/4" drive on the handle for use with a ratchet handle type A.300PA. Ratchet handle (A.300PA). Adjustment key 4 mm. Supplied in case with calibration certificate and individual identification number. 3 Wrench Knob Screwdriver Bits Bit holder Box Tray g A.402J2 A.402-20 A.300PA A.402 Slotted head 45 65 8 Hexagon 3-4-5 mm PZ 1 2 3 mm EF.1P4 BP.102 PL.436 700 A.404J2 A.404-20 A.300PA A.404 Slotted head 45 65 8 Hexagon 3-4-5 mm PZ 1 2 3 mm EF.1PA BP 102 PL.436 830 A.J1 Torque screwdriver sets 1/4" sockets NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Class II type D (A.400 maintenance). One-direction screwdriver right-hand torquing. Female hex output for use with 1/4" bit. 1/4" drive on the handle for use with a ratchet handle type A.300PA. Ratchet handle A.300PA. ECR drive 1/4" -1/4" for sockets and accessories. Extensions 1/4" (R.210and R.215). Adjustment key 4 mm. Supplied in case with calibration certificate and individual identification number. 3 Wrench Knob Socket Screwdriver Box Tray Nh kg A.402J1 A402 20 A.300PA R.32 40 50 55 60 70 80 90 -100 mm A.402 BP.115 PL.434 110 A.404J1 A404 20 A.300PA R.32 40 50 55 60 70 80 90 -100 mm A.404 BP.115 PL.434 120 372 Facom
