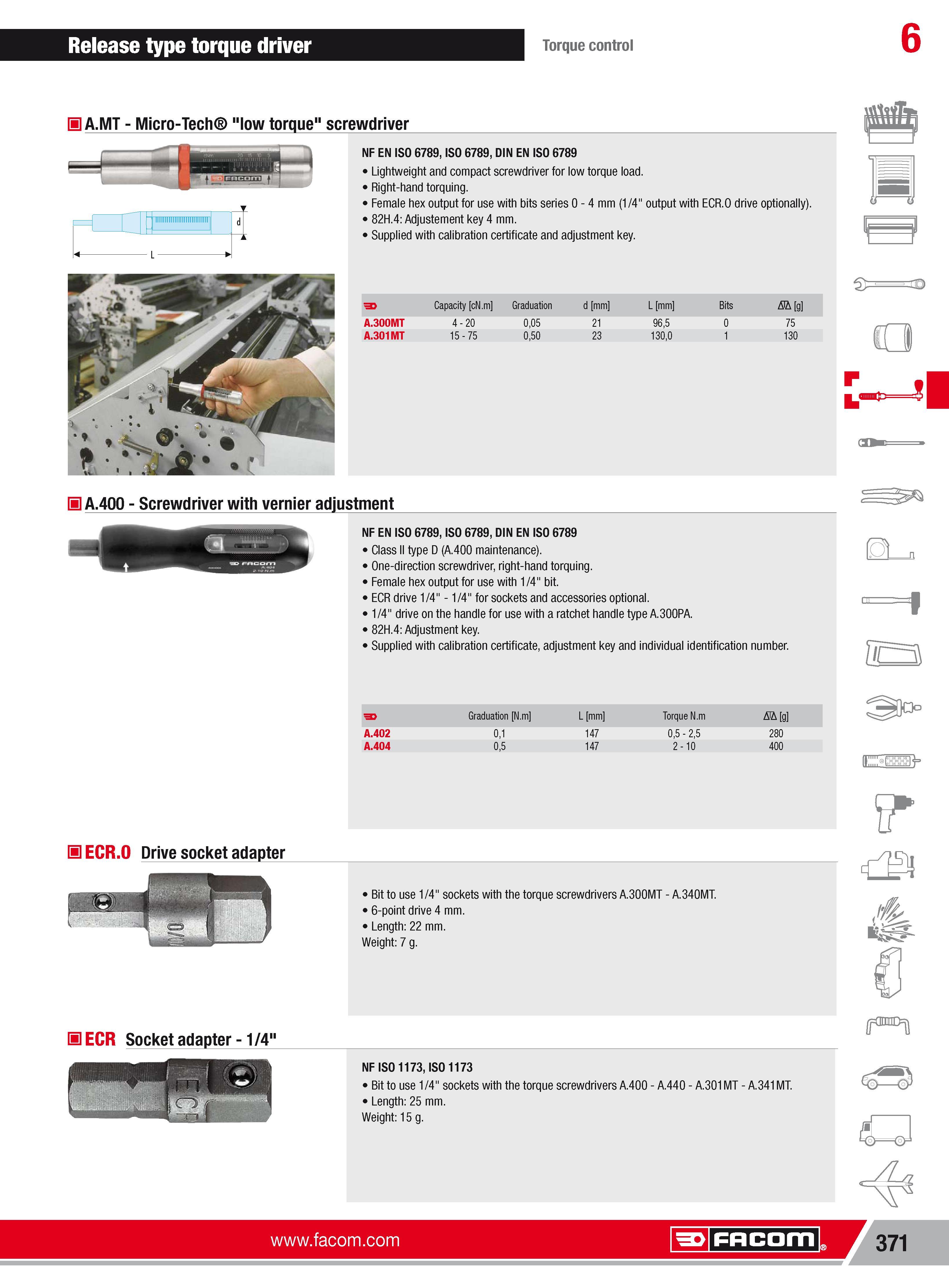

397 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.371

Каталог FACOM 2013 Инструмент Оборудование Стр. 371 0397 ENG Lab2u

Release type torque driver Torque control 6 A.MT Micro-Tech "low torque" screwdriver NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Lightweight and compact screwdriver for low torque load. Right-hand torquing. Female hex output for use with bits series 0-4mm (1/4" output with ECR.O drive optionally). 82H.4 Adjustement key 4 mm. Supplied with calibration certificate and adjustment key. A.400 Screwdriver with vernier adjustment NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Class II type D (A.400 maintenance). One-direction screwdriver right-hand torquing. Female hex output for use with 1/4" bit. ECR drive 1/4" -1/4" for sockets and accessories optional. 1/4" drive on the handle for use with a ratchet handle type A.300PA. 82H.4 Adjustment key. Supplied with calibration certificate adjustment key and individual identification number. Capacity cN.m Graduation d mm L mm Bits AlA g A.300MT 4 20 005 21 965 0 75 A.301MT 15 75 050 23 1300 1 130 r il Graduation N.m L mm Torque N.m AA g A.402 01 147 05 25 280 A.404 05 147 2 10 400 H ECR.0 Drive socket adapter Bit to use 1/4" sockets with the torque screwdrivers A.300MT A.340MT. 6-point drive 4 mm. Length 22 mm. Weight 7 g. II ECR Socket adapter 1/4" NF ISO 1173 ISO 1173 Bit to use 1/4" sockets with the torque screwdrivers A.400 A.440 A.301MT A.341MT. Length 25 mm. Weight 15g. Facom 371
