394 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.368

Каталог FACOM 2013 Инструмент Оборудование Стр. 368 0394 ENG Lab2u

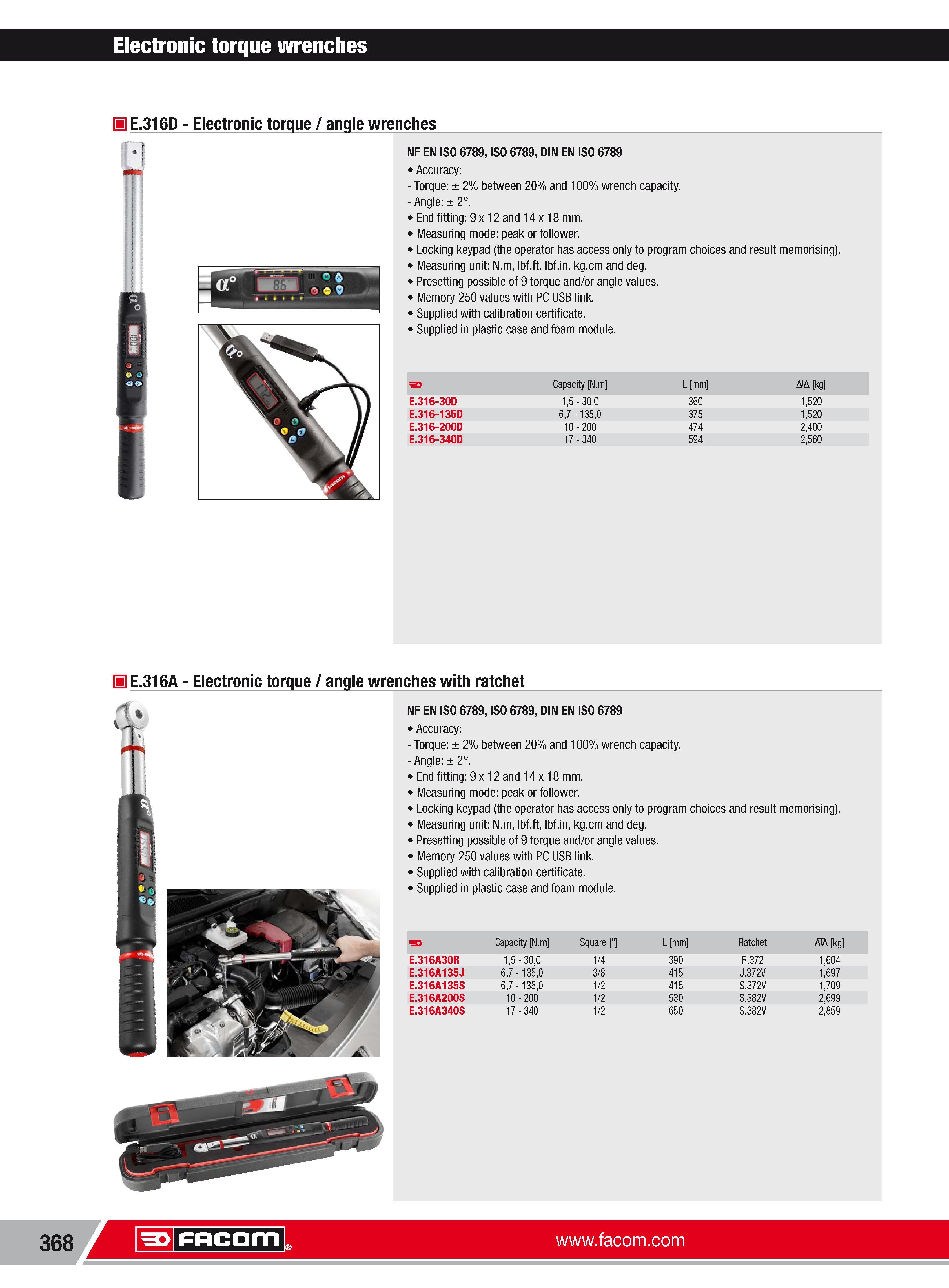

Electronic torque wrenches H E.316D Electronic torque angle wrenches NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy Torque 2% between 20% and 100% wrench capacity. -Angle 2. End fitting 9x12and14x18mm. Measuring mode peak or follower. Locking keypad (the operator has access only to program choices and result memorising). Measuring unit N.m Ibf.ft Ibf.in kg.cm and deg. Presetting possible of 9 torque and or angle values. Memory 250 values with PC USB link. Supplied with calibration certificate. Supplied in plastic case and foam module. H E.316A Electronic torque angle wrenches with ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy Torque 2% between 20% and 100% wrench capacity. -Angle 2. End fitting 9x12and14x18mm. Measuring mode peak or follower. Locking keypad (the operator has access only to program choices and result memorising). Measuring unit N.m Ibf.ft Ibf.in kg.cm and deg. Presetting possible of 9 torque and or angle values. Memory 250 values with PC USB link. Supplied with calibration certificate. Supplied in plastic case and foam module. Capacity N.m Square " L mm Ratchet Nh kg E.316A30R 15 300 1 4 390 R.372 1604 E.316A135J 67 1350 3 8 415 J.372V 1697 E.316A135S 67 1350 1 2 415 S.372V 1709 E.316A200S 10 200 1 2 530 S.382V 2699 E.316A340S 17 340 1 2 650 S.382V 2859 368 Facom
