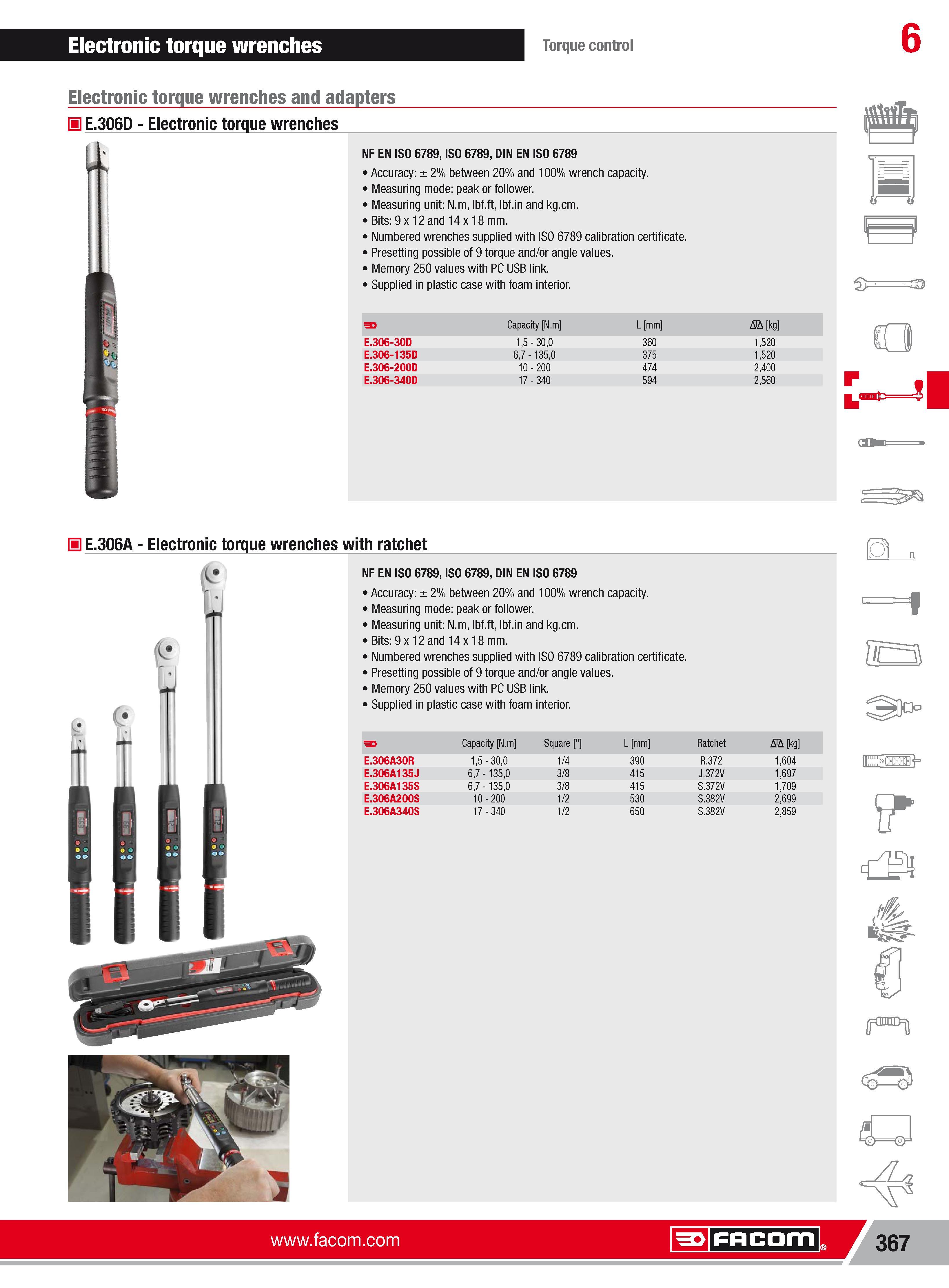

Electronic torque wrenches Torque control 6 Electronic torque wrenches and adapters H E.306D Electronic torque wrenches 1 NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 2% between 20% and 100% wrench capacity. Measuring mode peak or follower. Measuring unit N.m Ibf.ft Ibf.in and kg.cm. Bits 9x12and14x18mm. Numbered wrenches supplied with ISO 6789 calibration certificate. Presetting possible of 9 torque and or angle values. Memory 250 values with PC USB link. Supplied in plastic case with foam interior. LH; I'. Capacity N.m L mm Nh kg E.306-30D 15 300 360 1520 E.306-135D 67 1350 375 1520 E.306-200D 10 200 474 2400 E.306-340D 17 340 594 2560 r ll H E.306A Electronic torque wrenches with ratchet NF EN ISO 6789 ISO 6789 DIN EN ISO 6789 Accuracy 2% between 20% and 100% wrench capacity. Measuring mode peak or follower. Measuring unit N.m Ibf.ft Ibf.in and kg.cm. Bits 9x12and14x18mm. Numbered wrenches supplied with ISO 6789 calibration certificate. Presetting possible of 9 torque and or angle values. Memory 250 values with PC USB link. Supplied in plastic case with foam interior. Capacity N.m Square " L mm Ratchet Nh kg E.306A30R 15 300 1 4 390 R.372 1604 E.306A135J 67 1350 3 8 415 J.372V 1697 E.306A135S 67 1350 3 8 415 S.372V 1709 E.306A200S 10 200 1 2 530 S.382V 2699 E.306A340S 17 340 1 2 650 S.382V 2859 Facom 367
