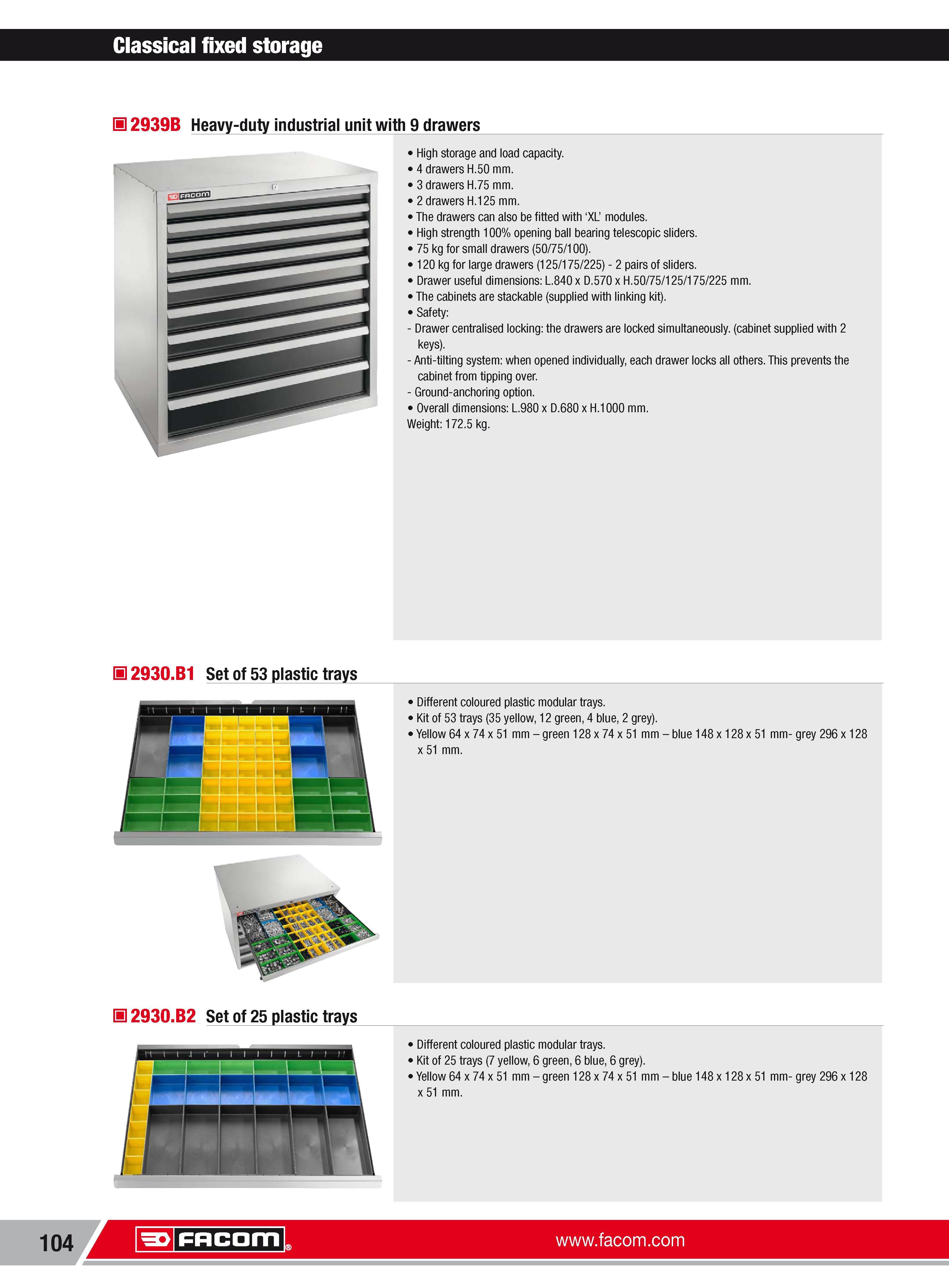

130 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.104

Каталог FACOM 2013 Инструмент Оборудование Стр. 104 0130 ENG Lab2u

Classical fixed storage H 2939B Heavy-duty industrial unit with 9 drawers High storage and load capacity. 4 drawers H.50 mm. 3 drawers H.75 mm. 2 drawers H.125 mm. The drawers can also be fitted with XL modules. High strength 100% opening ball bearing telescopic sliders. 75 kg for small drawers (50 75 100). 120 kg for large drawers (125 175 225) 2 pairs of sliders. Drawer useful dimensions L.840 x D.570 x H.50 75 125 175 225 mm. The cabinets are stackable (supplied with linking kit). Safety Drawer centralised locking the drawers are locked simultaneously (cabinet supplied with 2 keys). Anti-tilting system when opened individually each drawer locks all others. This prevents the cabinet from tipping over. Ground-anchoring option. Overall dimensions L.980 x D.680 x H.1000 mm. Weight 172.5 kg. H 2930.B1 Set of 53 plastic trays Different coloured plastic modular trays. Kit of 53 trays (35 yellow 12 green 4 blue 2 grey). Yellow 64x74x 51 mm green 128x74x51 mm blue 148x128x51 mm- grey 296 x 128 x 51 mm. H 2930.B2 Set of 25 plastic trays Different coloured plastic modular trays. Kit of 25 trays (7 yellow 6 green 6 blue 6 grey). Yellow 64x74x 51 mm green 128x74x51 mm blue 148x128x51 mm- grey 296 x 128 x 51 mm. 104 Facom
