127 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.101

Каталог FACOM 2013 Инструмент Оборудование Стр. 101 0127 ENG Lab2u

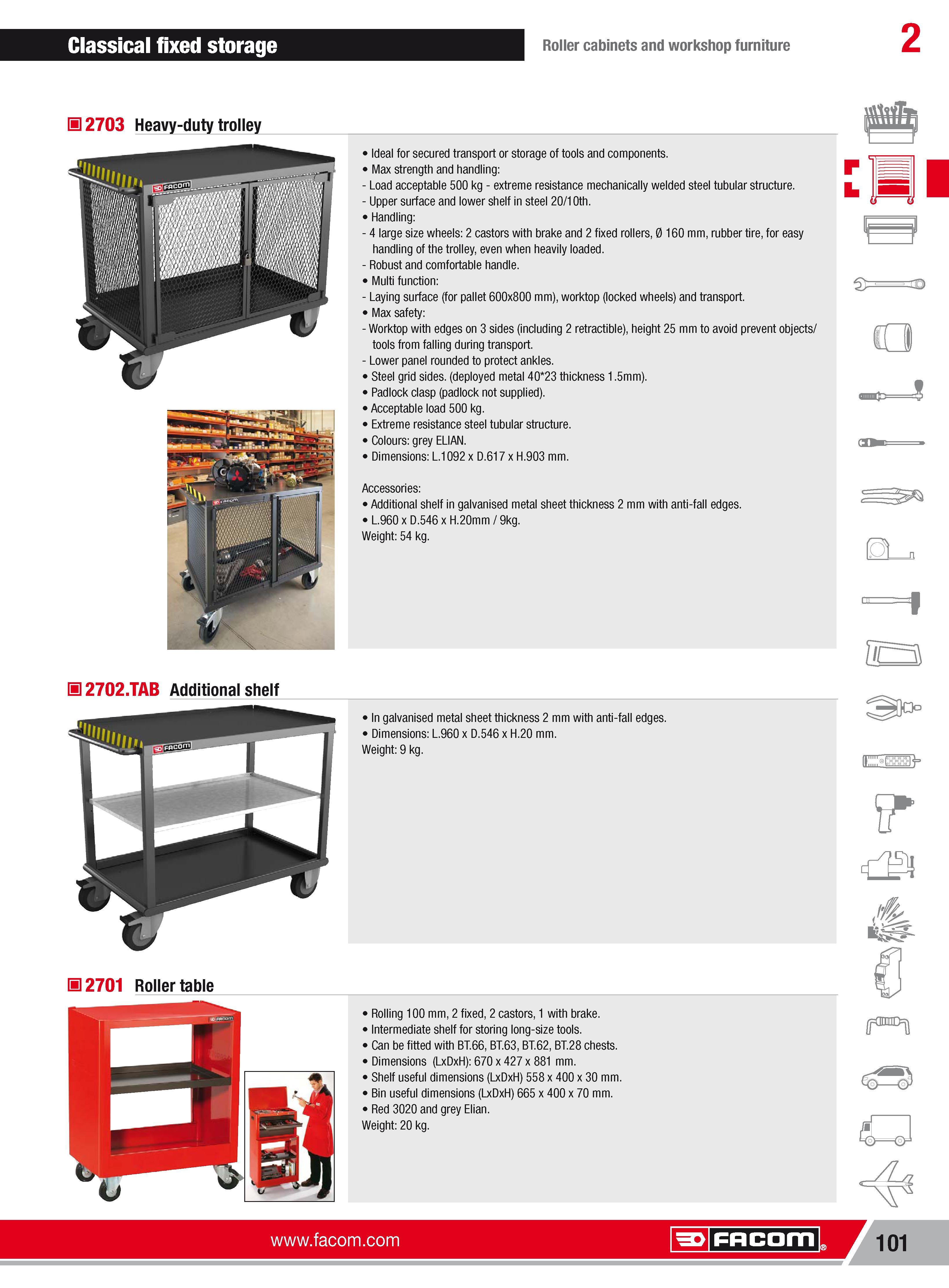

Classical fixed storage Roller cabinets and workshop furniture 2 0 2703 Heavy-duty trolley Ideal for secured transport or storage of tools and components. Max strength and handling Load acceptable 500 kg extreme resistance mechanically welded steel tubular structure. Upper surface and lower shelf in steel 20 10th. Handling 4 large size wheels 2 castors with brake and 2 fixed rollers 0 160 mm rubber tire for easy handling of the trolley even when heavily loaded. Robust and comfortable handle. Multi function Laying surface (for pallet 600x800 mm) worktop (locked wheels) and transport. Max safety Worktop with edges on 3 sides (including 2 retractible) height 25 mm to avoid prevent objects tools from falling during transport. Lower panel rounded to protect ankles. Steel grid sides (deployed metal 40 23 thickness 1.5mm). Padlock clasp (padlock not supplied). Acceptable load 500 kg. Extreme resistance steel tubular structure. Colours grey ELIAN. Dimensions L.1092 x D.617 x H.903 mm. Accessories Additional shelf in galvanised metal sheet thickness 2 mm with anti-fall edges. L.960 x D.546 x H.20mm 9kg. Weight 54 kg. H 2702.TAB Additional shelf In galvanised metal sheet thickness 2 mm with anti-fall edges. Dimensions L.960 x D.546 x H.20 mm. Weight 9 kg. fig r L 2701 Roller table Rolling 100 mm 2 fixed 2 castors 1 with brake. Intermediate shelf for storing long-size tools. Can be fitted with BT.66 BT.63 BT.62 BT.28 chests. Dimensions (LxDxH) 670 x 427 x 881 mm. Shelf useful dimensions (LxDxH) 558 x 400 x 30 mm. Bin useful dimensions (LxDxH) 665 x 400 x 70 mm. Red 3020 and grey Elian. Weight 20 kg. Facom 101 Facom
