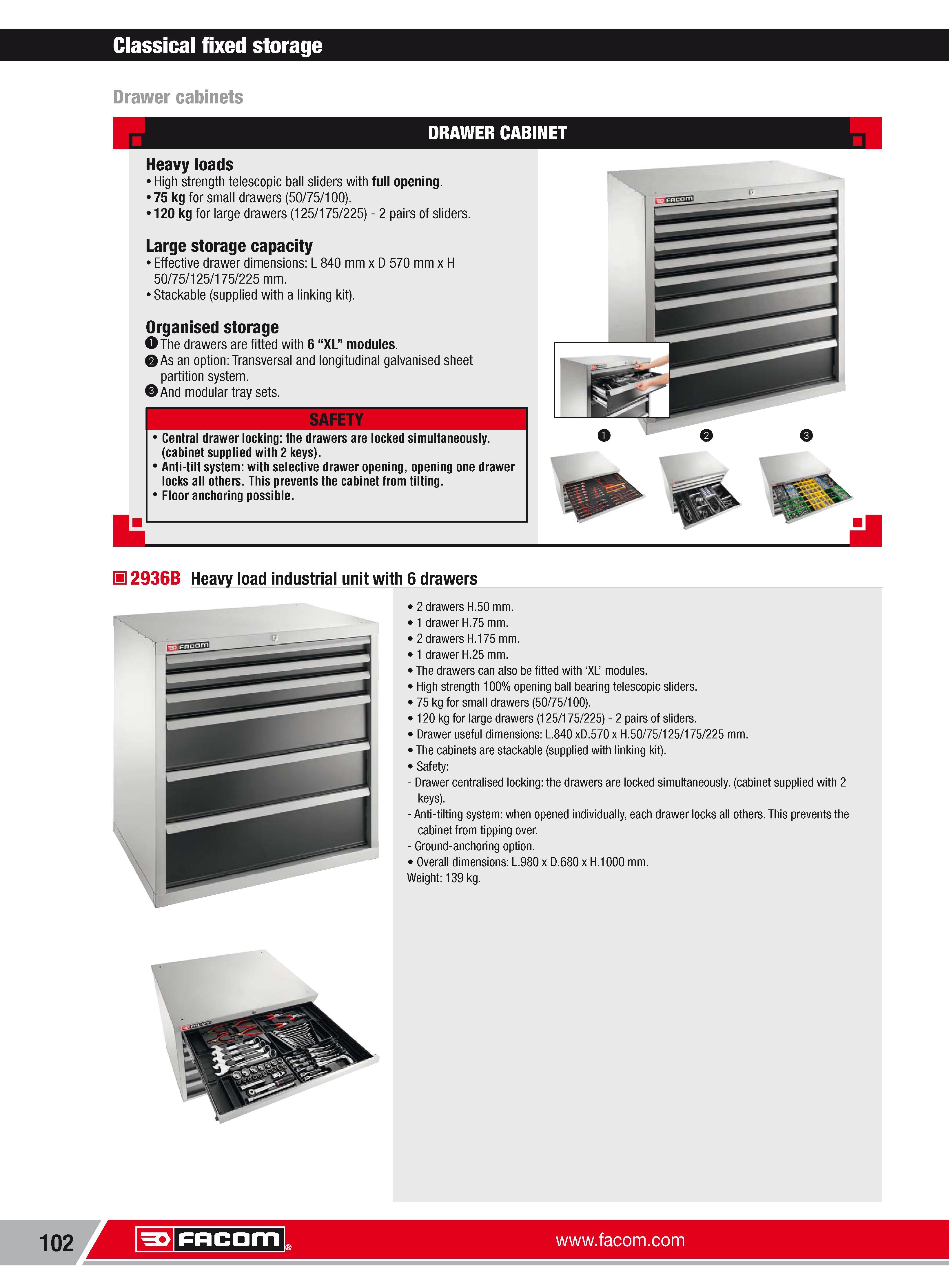

128 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.102

Каталог FACOM 2013 Инструмент Оборудование Стр. 102 0128 ENG Lab2u

Classical fixed storage Drawer cabinets DRAWER CABINET Heavy loads High strength telescopic ball sliders with full opening. 75 kg for small drawers (50 75 100). 120 kg for large drawers (125 175 225) 2 pairs of sliders. Large storage capacity Effective drawer dimensions L 840 mm x D 570 mm x H 50 75 125 175 225 mm. Stackable (supplied with a linking kit). Organised storage O The drawers are fitted with 6 XL modules. 0 As an option Transversal and longitudinal galvanised sheet partition system. And modular tray sets. SAFETY Central drawer locking the drawers are locked simultaneously (cabinet supplied with 2 keys). Anti-tilt system with selective drawer opening opening one drawer locks all others. This prevents the cabinet from tilting. Floor anchoring possible. H 2936B Heavy load industrial unit with 6 drawers 2 drawers H.50 mm. 1 drawerH.75 mm. 2 drawers H.175 mm. 1 drawerH.25 mm. The drawers can also be fitted with XL modules. High strength 100% opening ball bearing telescopic sliders. 75 kg for small drawers (50 75 100). 120 kg for large drawers (125 175 225) 2 pairs of sliders. Drawer useful dimensions L.840xD.570xH.50 75 125 175 225 mm. The cabinets are stackable (supplied with linking kit). Safety Drawer centralised locking the drawers are locked simultaneously (cabinet supplied with 2 keys). Anti-tilting system when opened individually each drawer locks all others. This prevents the cabinet from tipping over. Ground-anchoring option. Overall dimensions L.980 x D.680 x H.1000 mm. Weight 139 kg. 102 Facom
