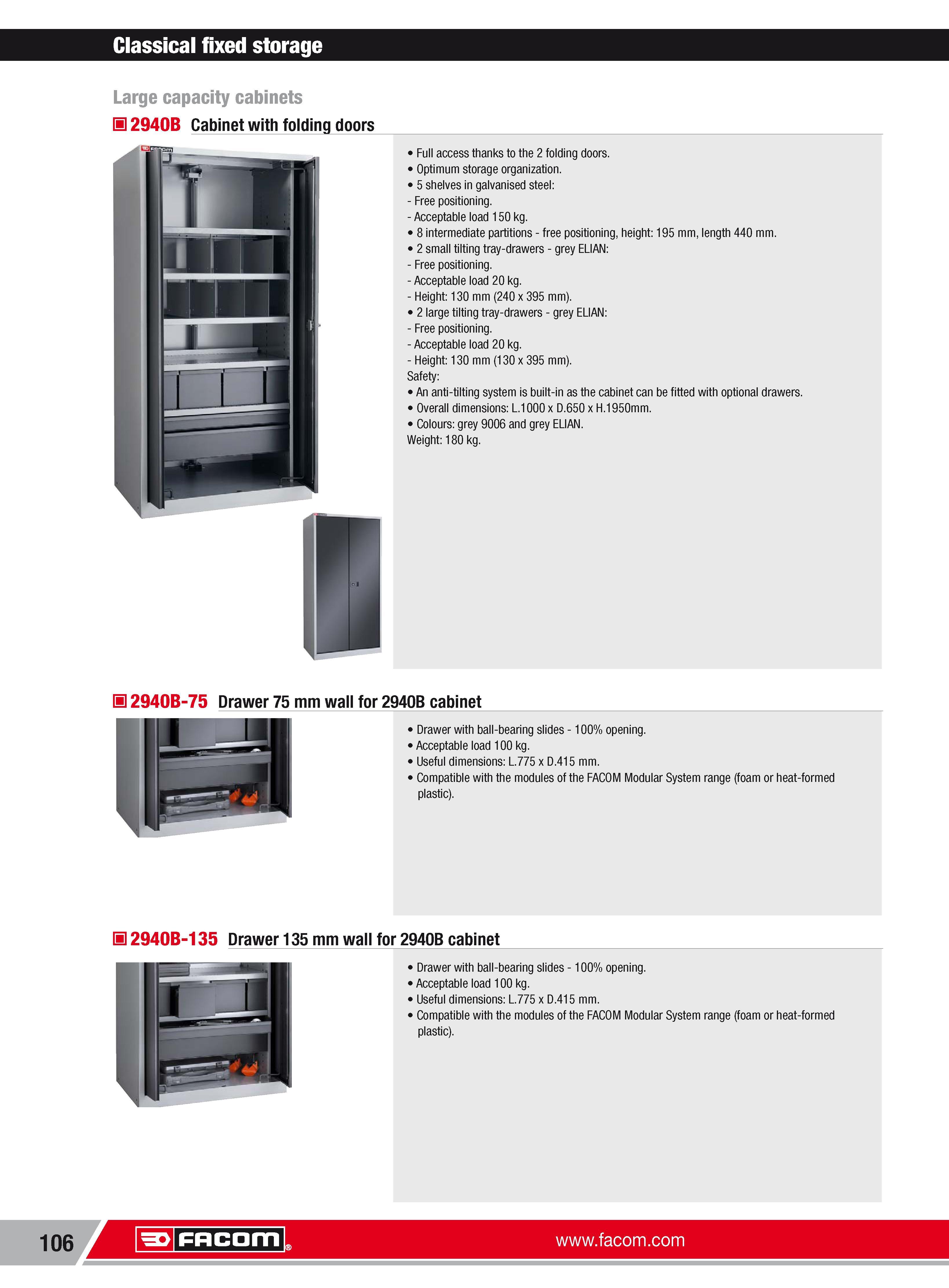

Classical fixed storage Large capacity cabinets H 2940B Cabinet with folding doors Full access thanks to the 2 folding doors. Optimum storage organization. 5 shelves in galvanised steel Free positioning. Acceptable load 150 kg. 8 intermediate partitions free positioning height 195 mm length 440 mm. 2 small tilting tray-drawers grey ELIAN Free positioning. Acceptable load 20 kg. Height 130 mm (240 x 395 mm). 2 large tilting tray-drawers grey ELIAN Free positioning. Acceptable load 20 kg. Height 130 mm (130 x 395 mm). Safety An anti-tilting system is built-in as the cabinet can be fitted with optional drawers. Overall dimensions L.1000 x D.650 x H.1950mm. Colours grey 9006 and grey ELIAN. Weight 180 kg. H 2940B-75 Drawer 75 mm wall for 2940B cabinet Drawer with ball-bearing slides -100% opening. Acceptable load 100 kg. Useful dimensions L.775 x D.415 mm. Compatible with the modules of the FACOM Modular System range (foam or heat-formed plastic). H 2940B-135 Drawer 135 mm wall for 2940B cabinet 106 Facom
